HEIGHT ADJUSTING

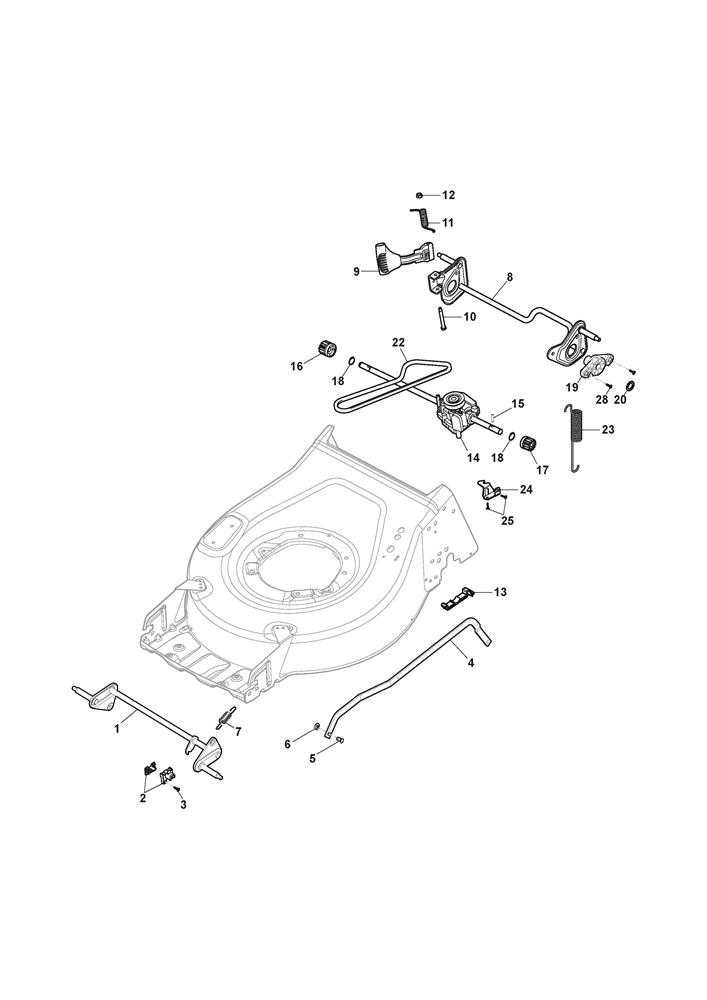

HEIGHT ADJUSTING assembly details for Mountfield SP51 (2L0536043/MC) 2021 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381302947/0FRONT WHEELS AXLE D=200 CP1 53£29.32 Add to
002322785305/1AXLE SUPPORT£3.00 Add to
003112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
004322869735/0WHEEL CONTROL ROD 200/280 BLACK CP1 53£16.10 Add to
005122519823/0WHEEL CONTROL ROD PIN£2.74 Add to
006112436050/0PIN PLATE D=8 (EUROFIX FX70308PH)£1.83 Add to
007122450494/0SPRING£4.99 Add to
008381302849/1ASS.REAR AXLE WHEELS D280 CRUISER 53 TR£52.06 Add to
009381003458/1HEIGHT ADJ.LEVER WHEELS D280 CRUISER£11.18 Add to
010122534131/0PIN£2.06 Add to
011122446192/0SPRING£2.47 Add to
012112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
013322785500/0REAR AXLE SUPPORT CP 1£2.18 Add to
014181003134/0GEARBOX G.T. CP1£93.73 Add to
015122753000/0PIN D=5.2 x 25.65£2.06 Add to
016122570133/0RIGHT PINION Z12 GEAR£7.92 Add to
017122570134/0LEFT PINION Z12 GEAR£7.92 Add to
018112608600/0CIRCLIP D=12£2.08 Add to
019322042067/0AXLE BUSH£4.52 Add to
020112521371/0WASHER M12 13 x 20 x 2£2.06 Add to
022135064196/0TRAPEZOIDAL BELT Z29£9.78 Add to
023122430254/0TENSION SPRING£4.52 Add to
024322778473/1STOP BRACKET£2.06 Add to
025112728904/0SELF-TAPPING SCREW K60 X 22 WM1451£1.95 Add to
028112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
