ENGINE RV150 RECOIL-AIR FILTER

ENGINE RV150 RECOIL-AIR FILTER assembly details for Mountfield RV150 2006 model

Parts list

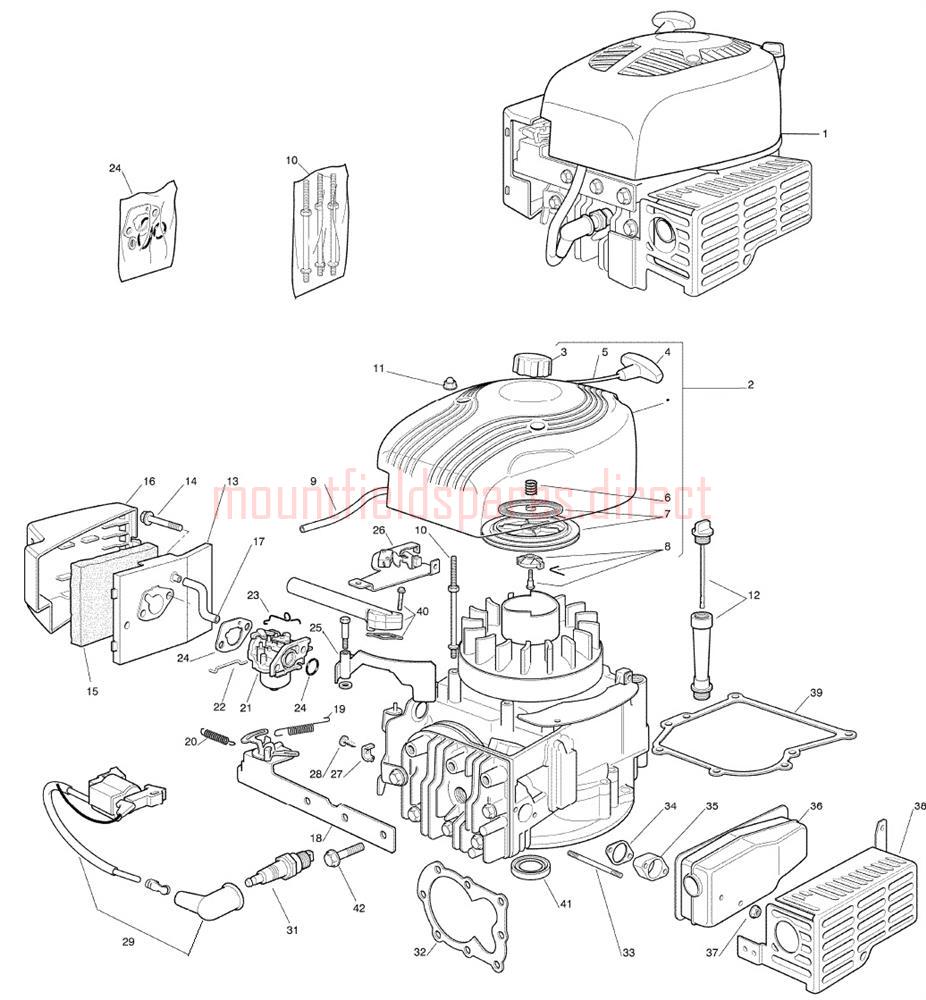

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118550157/1ENGINE c/w CAT MUFFLER 150cc [M150]£291.06 Add to
002118550509/0FUEL TANK KIT-ENGINE SV/RV150£60.24 Add to
003118550001/0FUEL TANK CAP£5.34 Add to
004118550768/0RECOIL HANDLE£12.27 Add to
005118550053/0STARTER CORD£3.14 Add to
006118550002/0STARTER SPRING£6.27 Add to
007118550003/0RECOIL PULLEY & SPRING£31.63 Add to
008118550004/1STARTER PAWL SET£5.37 Add to
009118550340/0FUEL PIPE£8.32 Add to
010118550006/0PIN BOLT SET-3 Pieces£10.88 Add to
011118550007/0COVER FIXING NUT£2.32 Add to
012118550008/0OIL DIPSTICK ASSEMBLY£5.87 Add to
013118550125/1AIR FILTER BASE (OBSOLETE)N/A
014118550010/0SCREW (OBSOLETE)N/A
015118550011/0FOAM AIR FILTER£3.55 Add to
016118550133/0AIR FILTER COVER£5.52 Add to
017118550013/0BREATHER TUBE (OBSOLETE)N/A
018118550014/1CONTROL BRACKET£32.99 Add to
019118550015/0GOVERNOR SPRING (OBSOLETE) (OBSOLETE) (OBSOLETE)N/A
020118550029/0LINKAGE SPRING£4.52 Add to
021118550016/0CARBURETTOR (OBSOLETE)N/A
022118550017/0CHOKE LINK (OBSOLETE) (OBSOLETE)N/A
023118550018/0GOVERNOR LINK£5.37 Add to
024118550019/0CARBURETTOR GASKET SET (OBSOLETE) (OBSOLETE)N/A
025118550020/1AIR VANE£20.58 Add to
026118550021/0ENGINE BRAKE£34.35 Add to
027118550022/0NO LONGER AVAILABLEN/A POA
028118550023/0SCREW£2.06 Add to
029118550126/0IGNITION COIL£52.06 Add to
0319400-0225-00SPARK PLUG (J19LM) (BR2LM)£4.79 Add to
032118550359/0CYLINDER HEAD GASKET SV150£6.32 Add to
033118550027/0PIN BOLT-MUFFLER£5.32 Add to
034118550028/0MUFFLER GASKET£4.91 Add to
035118550030/0MUFFLER SPACER£5.05 Add to
036118550031/1CATALYTIC MUFFLER£78.71 Add to
037118550032/0MUFFLER FIXING NUT£2.06 Add to
038118550033/0MUFFLER GUARD£22.08 Add to
039118550130/0CRANKCASE GASKET£6.47 Add to
040118550129/0INTAKE MANIFOLD£8.73 Add to
041118550131/0SEAL RING£8.84 Add to
042118550128/0BOLT-CYLINDER HEAD£7.57 Add to
