ENGINE RM65 (SV200) SUMP

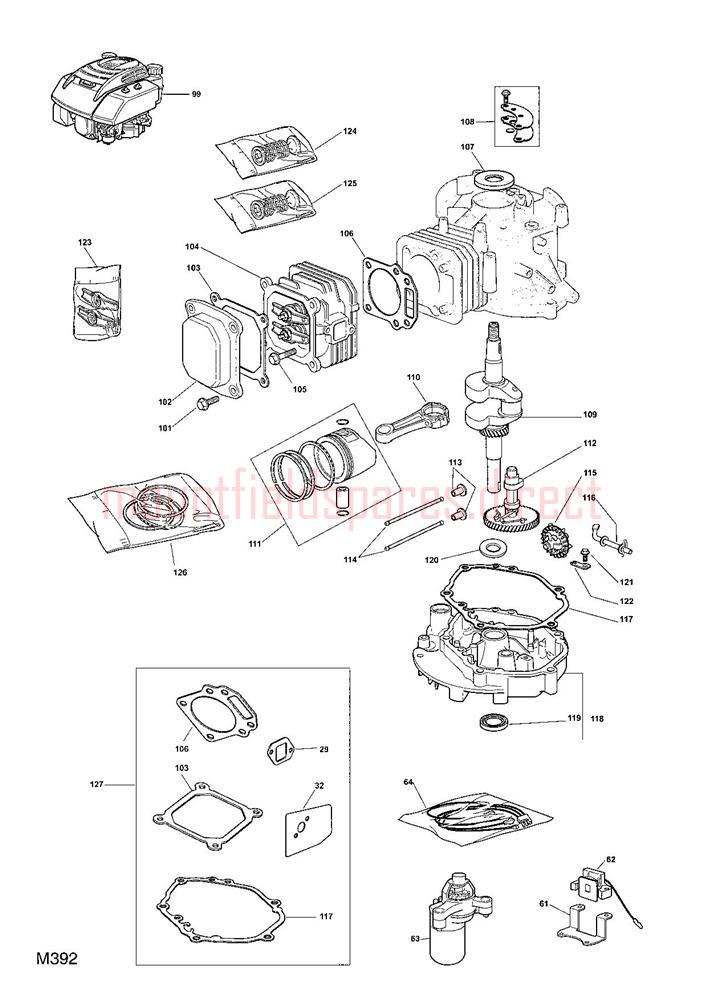

ENGINE RM65 (SV200) SUMP assembly details for Mountfield RM65 200cc OHV 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
06118550175/0ALTERNATOR BRACKET 2008£5.58 Add to
062118550174/0ALTERNATOR£32.06 Add to
063118550173/0STARTER MOTOR (OBSOLETE)N/A
064118550177/0CABLES ASSY M55£34.56 Add to
099118550318/0ENGINE ASSEMBLY£315.28 Add to
099118550431/0ENGINE 196CC OHV ES WBE0704 ES£771.72 Add to
10118550095/0SCREW 2008£3.64 Add to
102118550097/0VALVE COVER£6.80 Add to
103118550098/0CYLINDER HEAD GASKET (OBSOLETE) (OBSOLETE)£27.53 Add to
104118550099/0CYLINDER HEAD£157.09 Add to
105118550100/0BOLT-CYLINDER HEAD£4.54 Add to
106118550122/0GASKET SET (OBSOLETE)N/A
107118550102/0NO LONGER AVAILABLEN/A POA
10818550103/0GASKET 2008 (OBSOLETE) (OBSOLETE)N/A
109118550104/1CRANKSHAFT (OBSOLETE)N/A
109118550176/0CRANKSHAFT M55£97.03 Add to
110118550105/0CONNECTING ROD£41.16 Add to
111118550106/0PISTON£67.05 Add to
112118550107/1CAMSHAFT£26.23 Add to
11318550108/0VALVE LIFTER 2008£8.38 Add to
11418550109/0PUSH ROD 2008 (OBSOLETE) (OBSOLETE)N/A
11518550110/0NO LONGER AVAILABLEN/A POA
116118550111/0GOVERNOR SHAFT£7.13 Add to
117118550112/0CRANKCASE GASKET (OBSOLETE)N/A
11818550113/0CRANKCASE 2008£110.88 Add to
119118550114/0SEAL RING (OBSOLETE)N/A
12018550115/0WASHER 2008£3.64 Add to
12118550116/0SCREW 2008£7.13 Add to
12218550117/0GOVERNOR CLAMP 2008£7.13 Add to
12318550118/0NO LONGER AVAILABLEN/A POA
12418550119/0NO LONGER AVAILABLEN/A POA
12518550120/0USE 118550120/0N/A POA
126118550121/0PISTON RING SET (OBSOLETE)N/A
127118550122/0GASKET SET (OBSOLETE)N/A
