ENGINE-WBE0701 CYLINDER HEAD

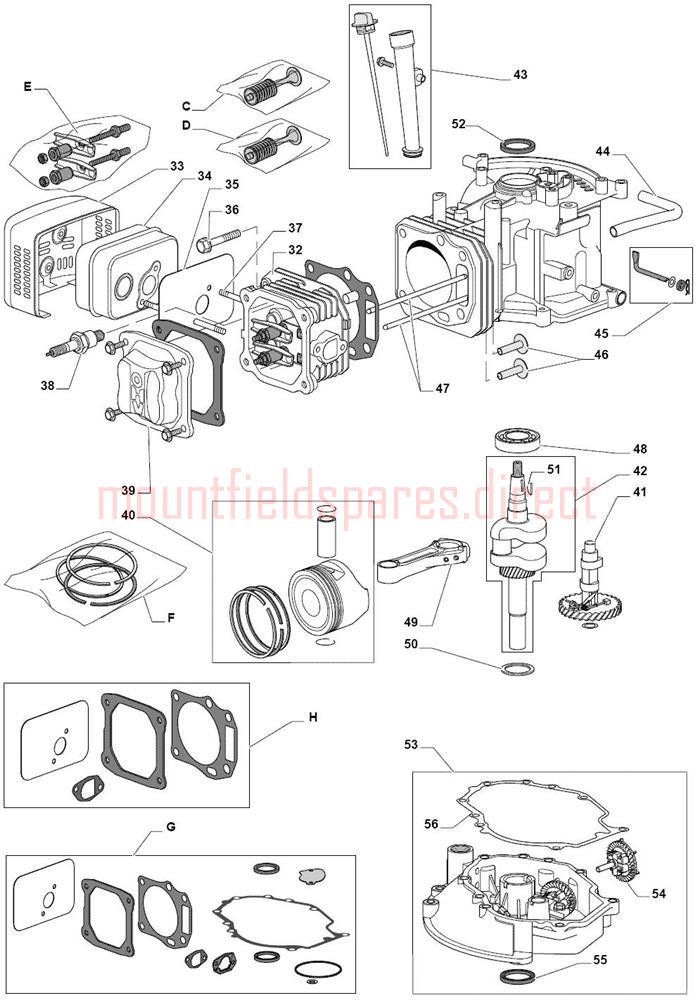

ENGINE-WBE0701 CYLINDER HEAD assembly details for Mountfield RM55 160cc OHV 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
032118550244/0CYLINDER HEAD ASSEMBLY£129.74 Add to
033118550268/1MUFFLER GUARD£34.35 Add to
034118550269/0MUFFLER£35.71 Add to
035118550270/0MUFFLER GASKET£12.55 Add to
036118550297/0SCREW£6.69 Add to
037118550298/0STUD BOLT£7.04 Add to
0389400-0244-00SPARK PLUG [CHAMPION RC12YC]£6.35 Add to
039118550296/1CYLINDER HEAD COVER£15.00 Add to
040118550278/0PISTON ASSY£52.06 Add to
041118550271/0CAMSHAFT£38.44 Add to
042118550281/0CRANKSHAFT£113.03 Add to
043118550311/0OIL DIPSTICK ASSEMBLY£26.18 Add to
044118550377/0BREATHER FUEL PIPE£4.91 Add to
045118550308/0GOVERNOR ARM SHAFT£10.77 Add to
046118550291/0VALVE LIFTER£10.09 Add to
047118550289/0PUSH RODS£9.78 Add to
048118550280/0BALL BEARING£23.72 Add to
049118550284/0CONNECTING ROD£41.16 Add to
050118550283/0WASHER£3.69 Add to
051118550288/0WOODRUFF KEY£6.55 Add to
052118550300/0OIL SEAL£7.63 Add to
053118550383/0CRANKCASE COVER£112.02 Add to
054118550312/0SPEED GOVERNOR£19.38 Add to
055118550379/0OIL SEAL£7.10 Add to
056118550380/1CRANKCASE GASKET£16.36 Add to
C 118550292/0INTAKE VALVE£26.18 Add to
D 118550294/0EXHAUST VALVE£27.27 Add to
E 118550273/0VALVE ARM SET£14.18 Add to
F 118550286/0PISTON RING SET£27.27 Add to
G 118550404/0ENGINE GASKET SET£57.52 Add to
H 118550406/0CYLINDER HEAD GASKET KIT£27.27 Add to
