ENGINE-V35 CYLINDER HEAD

ENGINE-V35 CYLINDER HEAD assembly details for Mountfield V35 150cc 2011 model

Parts list

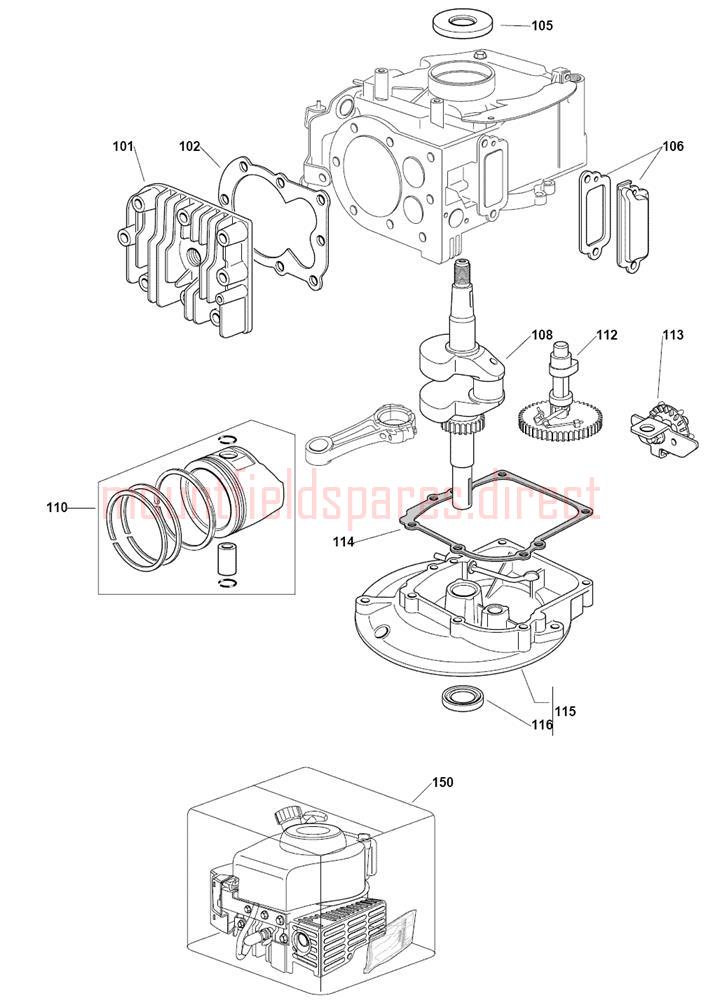

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
101118550360/0CYLINDER HEAD£18.95 Add to
102118550359/0CYLINDER HEAD GASKET SV150£6.32 Add to
105118550131/0SEAL RING£8.84 Add to
106118550364/0BREATHER ASSEMBLY£8.32 Add to
108118550361/0CRANKSHAFT£60.24 Add to
110118550357/0PISTON ASSEMBLY£45.26 Add to
112118550356/0CAMSHAFT ASSEMBLY£18.68 Add to
113118550363/0SPEED GOVERNOR ASSEMBLY£21.17 Add to
114118550130/0CRANKCASE GASKET£6.47 Add to
115118550362/0CRANKCASE COVER£100.25 Add to
116118550131/0SEAL RING£8.84 Add to
150118550157/1ENGINE c/w CAT MUFFLER 150cc [M150]£291.06 Add to
