ENGINE-WBE0701ES RECOIL-FUEL TANK

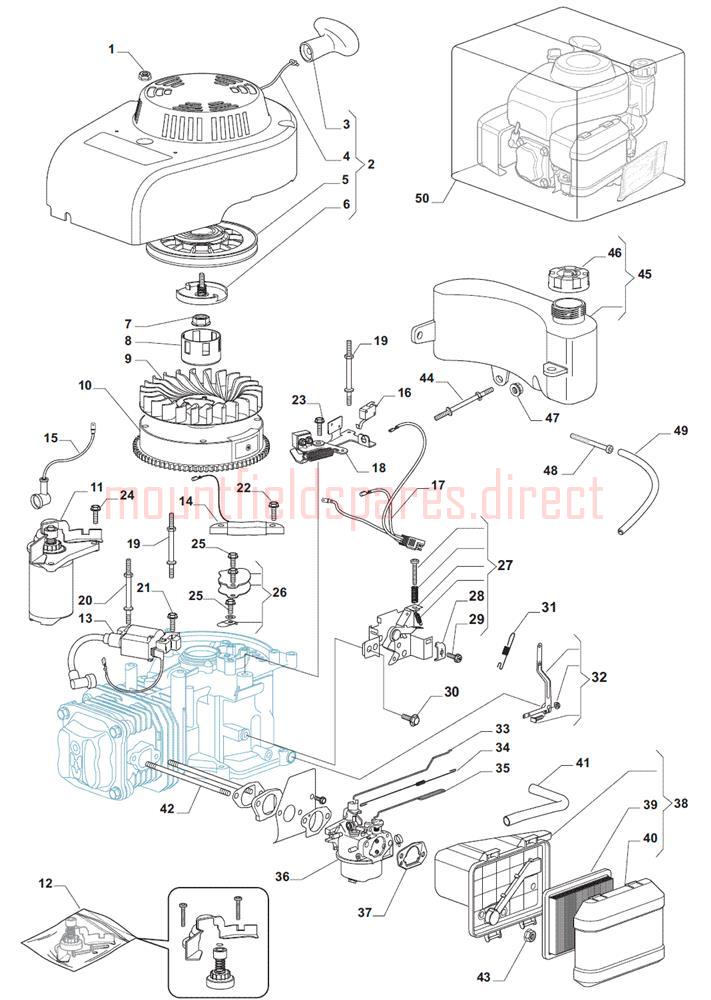

ENGINE-WBE0701ES RECOIL-FUEL TANK assembly details for Mountfield RM55-ES 160cc OHV 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
002118550276/1RECOIL ASSEMBLY 140/160cc [WBE]£53.42 Add to
003118550274/0RECOIL HANDLE£15.81 Add to
004118550779/0RECOIL ROPE£7.63 Add to
005118550778/0RECOIL PULLEY & SPRING£27.27 Add to
006118550275/1STARTER PAWL KIT£12.68 Add to
007118550336/0NUT£6.42 Add to
008118550335/0STARTER CUP£22.61 Add to
009118550254/0FLYWHEEL FAN£21.26 Add to
010118550392/0FLYWHEEL ASSEMBLY£120.11 Add to
011118550401/1STARTER MOTOR£145.20 Add to
012118550402/0STARTER DRIVE KIT£41.97 Add to
013118550255/1IGNITION COIL£54.79 Add to
014118550394/0CHARGE COIL£35.68 Add to
015118550395/0STARTER MOTOR CABLE£30.26 Add to
016118550400/0MICRO SWITCH [KEY START]£26.18 Add to
017118550393/0SWITCH WIRES£30.17 Add to
018118550373/0FLYWHEEL BRAKE£42.53 Add to
019118550302/0STUD BOLT (OBSOLETE)N/A
020118550301/0STUD BOLT£7.10 Add to
021112791500/0SCREW TE M6x25 UNI 5739 ACC.8.8£2.06 Add to
022112791500/0SCREW TE M6x25 UNI 5739 ACC.8.8£2.06 Add to
023112791500/0SCREW TE M6x25 UNI 5739 ACC.8.8£2.06 Add to
024112674550/0SCREW TE M6 x 30£2.06 Add to
025112790500/0HEX-HEAD SCREW M6 x 10£2.06 Add to
026118550378/0BREATHER CHAMBER KIT£23.45 Add to
027118550259/0THROTTLE CONTROL ASSEMBLY£31.42 Add to
028118550337/0CASING CLAMP£12.37 Add to
029118550338/0SCREW£7.36 Add to
030112791213/1SCREW M6 X 18£1.74 Add to
031118550260/0SPRING£4.37 Add to
032118550266/0GOVERNOR ARM£14.82 Add to
033118550397/0GOVERNOR LINK£2.87 Add to
034118550263/0SPRING£3.15 Add to
035118550264/0CHOKE CONTROL ROD£3.83 Add to
036118550251/0CARBURETTOR£58.87 Add to
037118550738/0CARBURETTOR GASKET£6.69 Add to
038118550737/0AIR FILTER ASSEMBLY£24.95 Add to
039118550257/0PAPER AIR FILTER£12.00 Add to
039118550452/0FOAM AIR FILTER£9.00 Add to
040118550739/0AIR FILTER COVER£7.92 Add to
041118550377/0BREATHER FUEL PIPE£4.91 Add to
042118550298/0STUD BOLT£7.04 Add to
043112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
044118550315/0STUD BOLT£8.04 Add to
045118550316/0FUEL TANK£68.62 Add to
046118550339/1FUEL TANK CAP£15.81 Add to
047112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
048118550314/0FUEL FILTER£4.78 Add to
049118550340/0FUEL PIPE£8.32 Add to
050118550411/0ENGINE ASSEMBLY 160cc WBE0701-ES£433.32 Add to
