WM 12 GGP-ENGINE (1)

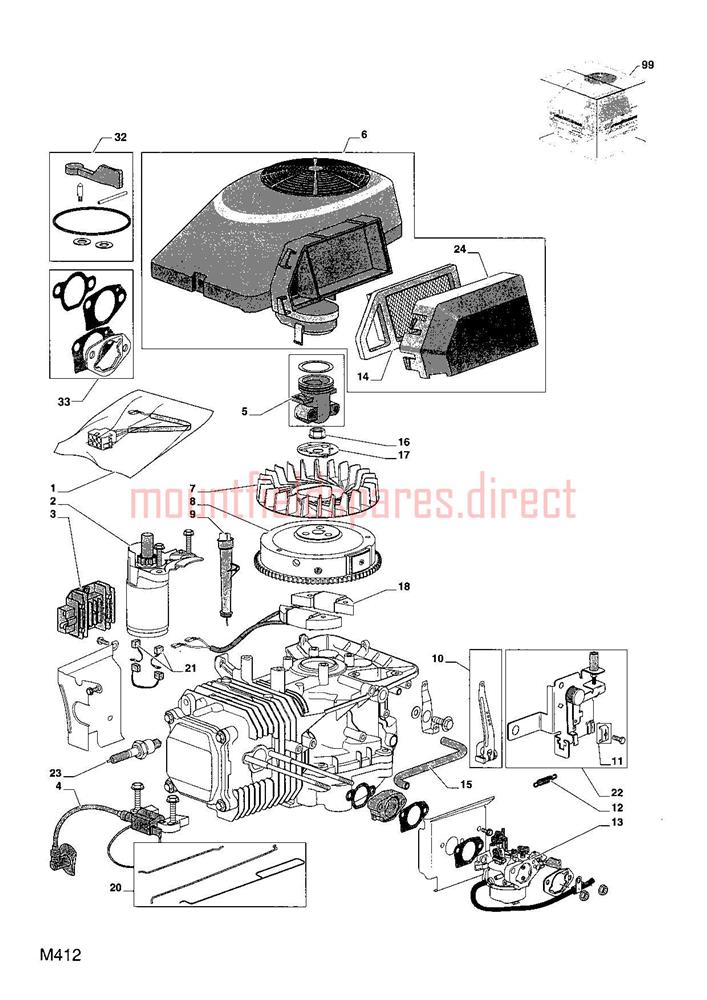

WM 12 GGP-ENGINE (1) assembly details for Mountfield WM12 OHV 2008 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	118550214/0	STARTER MOTOR (EARLY VERSION) No returns on this i	£162.96	Add to
003	118550208/1	RECTIFIER (EARLY VERSION)	£77.95	Add to
004	118550209/1	IGNITION COIL (EARLY VERSION)	£43.89	Add to
005	118550320/0	INTAKE MANIFOLD ASSY	£40.72	Add to
006	118550319/0	COVER ASSEMBLY	£129.74	Add to
007	118550235/0	FLYWHEEL FAN	£26.18	Add to
008	118550234/1	FLYWHEEL	£226.22	Add to
009	118550205/1	OIL DIPSTICK ASSEMBLY	£27.41	Add to
010	118550330/1	GOVERNOR LEVER	£17.01	Add to
011	118550212/0	Casing Clamp (OBSOLETE)	N/A
012	118550213/0	SPRING	£2.47	Add to
013	118550323/0	Carburettor (OBSOLETE)	N/A
014	118550321/0	AIR FILTER	£19.62	Add to
015	118550325/1	BREATHER TUBE	£12.14	Add to
016	118550237/0	NUT	£3.69	Add to
017	118550236/0	STARTER CUP	£6.69	Add to
018	118550210/0	COIL ASSY, CHARGE	£41.16	Add to
020	118550239/1	GOVERNOR ROD	£14.18	Add to
021	118550332/1	BRUSH HOLD	£35.71	Add to
022	118550331/1	REMOTE CONTROL ASSEMBLY	£42.53	Add to
023	9400-0244-00	SPARK PLUG [CHAMPION RC12YC]	£6.35	Add to
024	118550322/0	AIR FILTER COVER	£32.99	Add to
033	118550217/0	USE 118550217/1	N/A	POA
099	118550439/1	ENGINE ASSEMBLY 414cc TRE0702	£681.63	Add to
