ENGINE 1125M-PRIMO ENGINE

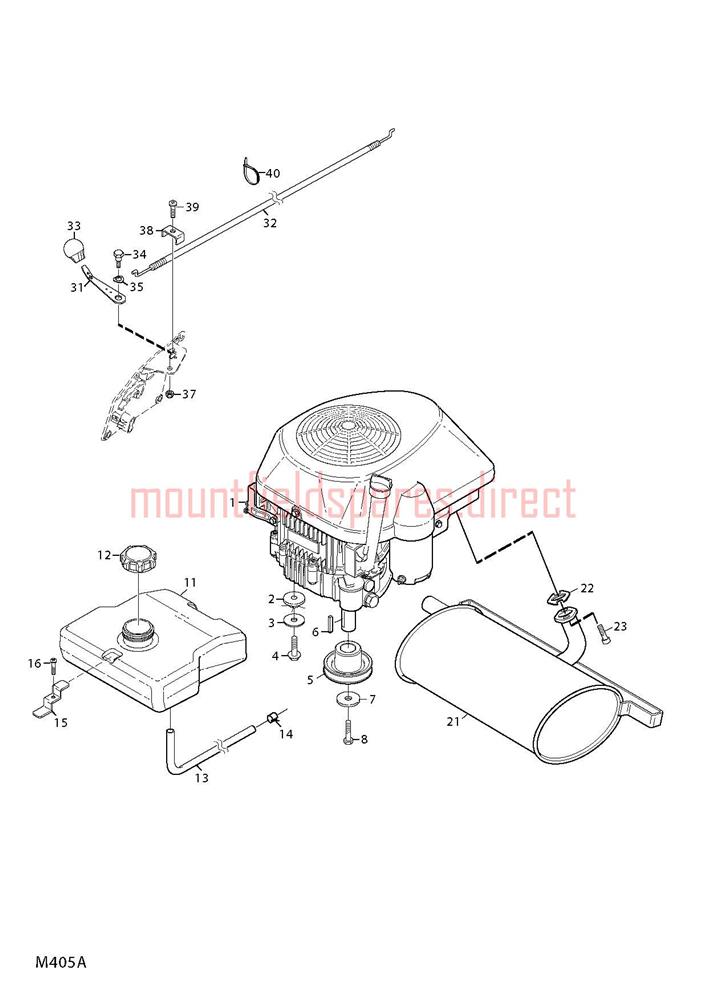

ENGINE 1125M-PRIMO ENGINE assembly details for Mountfield WM12 OHV 2009 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	118550439/1	ENGINE ASSEMBLY 414cc TRE0702	£681.63	Add to
002	1134-6582-01	BUSHING	£5.66	Add to
003	9699-0105-02	WASHER	£2.06	Add to
004	9955-3738-16	SCREW	£2.06	Add to
005	1134-6495-01	BELT PULLEY	£58.10	Add to
006	9600-0251-01	KEY L=2.5"	£6.95	Add to
007	1134-5017-01	WASHER 40 x 11.5 x 4	£3.55	Add to
008	20001069/0	USE 120001069/0	N/A	POA
011	1134-6568-01	FUEL TANK (OBSOLETE)	N/A
012	125795001/1	FUEL TANK CAP	£8.32	Add to
013	1134-2975-15	FUEL HOSE (L=1400)	£32.99	Add to
014	9578-0023-02	HOSE CLAMP	£5.73	Add to
015	1134-7048-01	BRACKET	£7.01	Add to
016	9838-8822-19	SCREW K60 x 22	£2.06	Add to
021	1134-6719-01	MUFFLER ASSEMBLY	£279.64	Add to
022	120001114/0	USE 1134-0433-00	N/A	POA
023	1134-4930-01	SCREW	£2.32	Add to
024	1134-4242-01	SPACER WASHER	£4.78	Add to
031	1134-7122-01	THROTTLE LEVER	£6.71	Add to
032	1134-1597-14	THROTTLE CABLE	£15.41	Add to
033	1134-7284-01	KNOB	£3.41	Add to
034	1134-0240-00	SCREW	£9.14	Add to
035	22675110/0	USE 122675110/0	N/A	POA
037	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
038	9500-9991-00	CABLE CLAMP	£7.78	Add to
039	9838-9516-12	SCREW K50 x 16	£2.47	Add to
040	9579-0003-00	CABLE HOLDER	£2.06	Add to
