ENGINE-WM16 CYLINDER HEAD

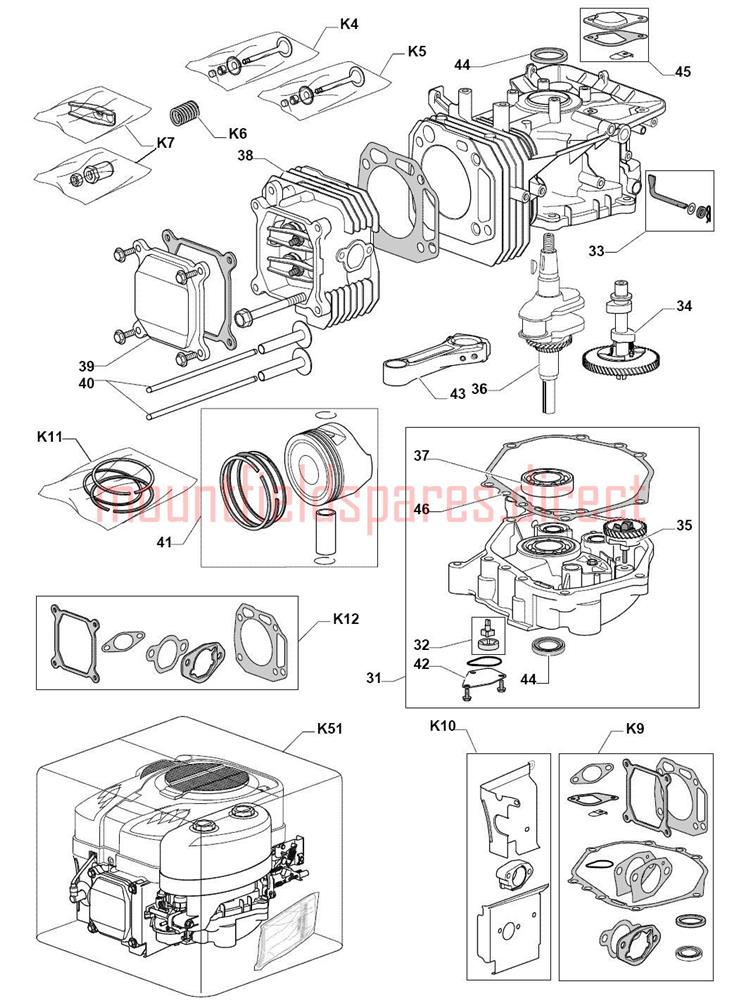

ENGINE-WM16 CYLINDER HEAD assembly details for Mountfield WM16 OHV 2010 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	325869057/0	FUEL TUBE L=1000	£20.72	Add to
003	118375051/1	CABLE CLAMP B&S [GREEN]	£1.91	Add to
004	118738231/1	EXHAUST PIPE	£22.35	Add to
005	112583500/0	WASHER M8 UNI 1751 WZ	£2.06	Add to
006	112737450/0	SCREW 5/16 x 3/4 18 THREAD	£3.55	Add to
007	112735108/1	TELF-FORM SCREW 3/8" X 1¼" UNC	£2.57	Add to
008	112735599/0	SELF-TAPPING SCREW M6 x 16	£2.06	Add to
010	127598060/0	OIL DRAIN EXTENSION	£8.52	Add to
011	118737849/0	OIL DRAIN PLUG	£2.47	Add to
012	118401001/1	OIL DRAIN SEAL	£2.06	Add to
014	RCL048-0820	USE 112793102/0	N/A	POA
015	112540260/0	INNER TOOTHED WASHER M8	£2.06	Add to
016	182750010/0	MUFFLER	£117.75	Add to
017	112360425/0	SQUARE NUT M8	£2.18	Add to
018	382598039/0	MUFFLER GUARD	£65.50	Add to
019	112792611/0	SCREW TE M8x16 UNI 5739 ACC.8.8	£2.06	Add to
020	112583500/0	WASHER M8 UNI 1751 WZ	£2.06	Add to
041	182000212/0	THROTTLE CABLE	£24.75	Add to
042	125943012/0	FLANGED SCREW M4 x 10 WZ	£2.06	Add to
044	25394501/0	USE 125394501/0	N/A	POA
045	112726388/0	CROSS-HEAD SCREW M4X12	£2.06	Add to
046	112290800/0	HEXAGON NUT M4 UNI 5588 ACC.6S	£2.06	Add to
051	325735111/3	FUEL TANK	£54.79	Add to
052	125795000/1	FUEL TANK CAP	£8.04	Add to
053	112788910/0	HEX-HEAD SCREW M5 x 16	£2.06	Add to
054	112500092/0	RIVET D=7	£2.06	Add to
055	125290000/0	FUEL LEVEL INDICATOR	£56.15	Add to
