ENGINE (GGP) FUEL TANK THROTTLE CABLE EXHAUST PIPE-OIL SYRINGE

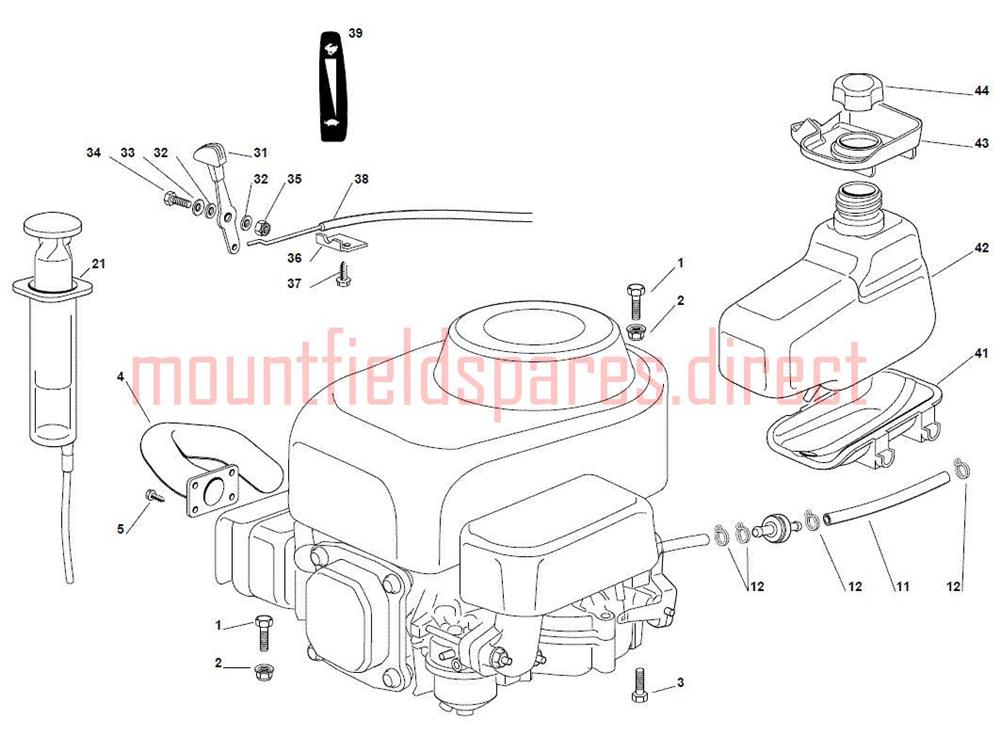

ENGINE (GGP) FUEL TANK THROTTLE CABLE EXHAUST PIPE-OIL SYRINGE assembly details for Mountfield Series 5500-RM65 ES 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112691115/0HEX-HEAD SCREW M8 x 40£2.06 Add to
002112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
003119216047/0HEX-HEAD SCREW M8 X 35£2.06 Add to
004318738201/0EXHAUST PIPE£22.91 Add to
005112691115/0HEX-HEAD SCREW M8 x 40£2.06 Add to
011325869035/1CONNECTING TUBE£9.82 Add to
012118375051/1CABLE CLAMP B&S [GREEN]£1.91 Add to
021118718000/0OIL EMPTYING SYRINGE£16.22 Add to
031384317094/0THROTTLE LEVER£5.71 Add to
032112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
033112530060/0SPRING WASHER M6£1.79 Add to
034112791500/0SCREW TE M6x25 UNI 5739 ACC.8.8£2.06 Add to
035112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
036322981467/0FIXING CABLE PLATE£2.06 Add to
037112735105/0SELF-TAP SCREW TE 3.5 x 16£2.06 Add to
038184000253/1THROTTLE CABLE£9.54 Add to
039114358415/0THROTTLE DECAL (OBSOLETE) (OBSOLETE)N/A
041127787057/0PLASTIC TANK SUPPORT - NLA£4.10 Add to
042127733002/1FUEL TANK£34.35 Add to
043127600113/0FUEL TANK GUARD£2.06 Add to
044127790000/1FUEL TANK CAP B&S INTEK 65£7.10 Add to
