ENGINE-Series 5500 (WBE0704) CYL HEAD-DIPSTICK

ENGINE-Series 5500 (WBE0704) CYL HEAD-DIPSTICK assembly details for Mountfield Series 5500-RM65 ES 2011 model

Parts list

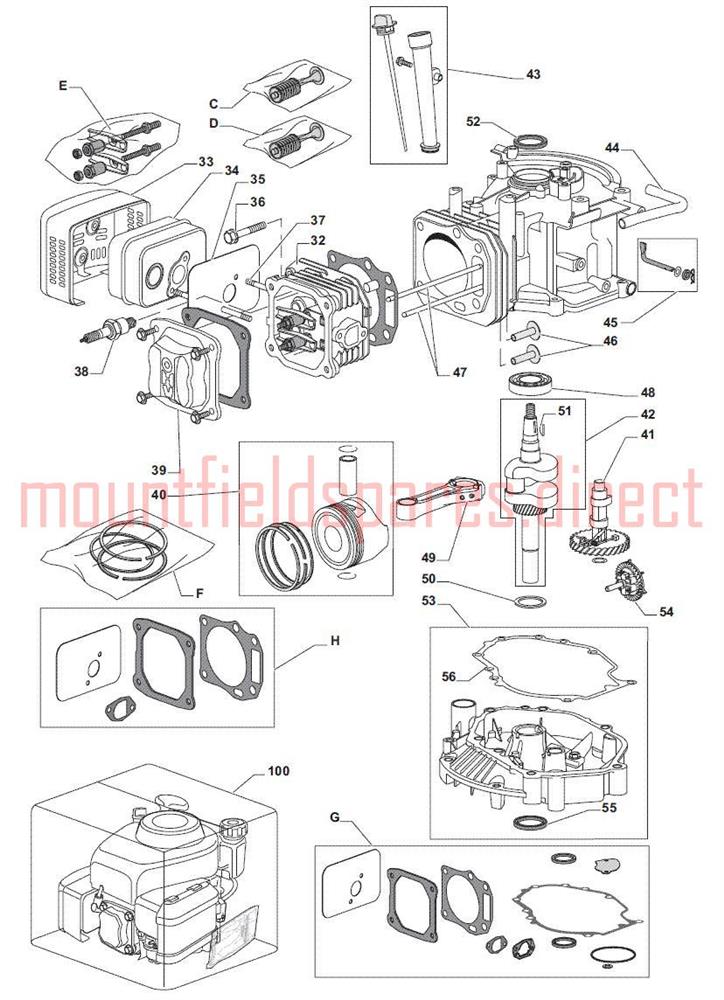

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
032118550245/0CYLINDER HEAD ASSEMBLY£143.37 Add to
033118550425/0MUFFLER GUARD£32.84 Add to
034118550426/0MUFFLER ASSEMBLY£42.53 Add to
035118550270/0MUFFLER GASKET£12.55 Add to
036118550297/0SCREW£6.69 Add to
037118550298/0STUD BOLT£7.04 Add to
0389400-0244-00SPARK PLUG [CHAMPION RC12YC]£6.35 Add to
039118550296/1CYLINDER HEAD COVER£15.00 Add to
040118550279/0PISTON ASSEMBLY£54.79 Add to
041118550272/0CAMSHAFT£46.61 Add to
042118550415/0CRANKSHAFT COMP£110.66 Add to
043118550311/0OIL DIPSTICK ASSEMBLY£26.18 Add to
044118550413/0TUBE BREATHER£7.23 Add to
045118550308/0GOVERNOR ARM SHAFT£10.77 Add to
046118550291/0VALVE LIFTER£10.09 Add to
047118550290/0PUSH RODS£12.15 Add to
048118550280/0BALL BEARING£23.72 Add to
049118550285/0CONNECTING ROD ASSEMBLY£42.53 Add to
050118550283/0WASHER£3.69 Add to
051118550288/0WOODRUFF KEY£6.55 Add to
052118550300/0OIL SEAL£7.63 Add to
053118550310/0CRANKCASE COVER ASSEMBLY£139.79 Add to
054118550313/0SPEED GOVERNOR ASSEMBLY£15.23 Add to
055118550379/0OIL SEAL£7.10 Add to
056118550414/1CRANKCASE GASKET£17.18 Add to
100118551159/2ENGINE ASSEMBLY 224cc TRE224£522.05 Add to
C 118550293/0VALVE INTAKE ASSEMBLY£23.15 Add to
D 118550295/0EXHAUST VALVE ASSEMBLY£24.65 Add to
E 118550273/0VALVE ARM SET£14.18 Add to
F 118550287/0PISTON RING SET£28.90 Add to
G 118550247/0ENGINE GASKET SET£47.97 Add to
H 118550429/0CYLINDER HEAD GASKET£28.90 Add to
