ENGINE Series 7250 (TRE0702) AIR FILTER-CARB

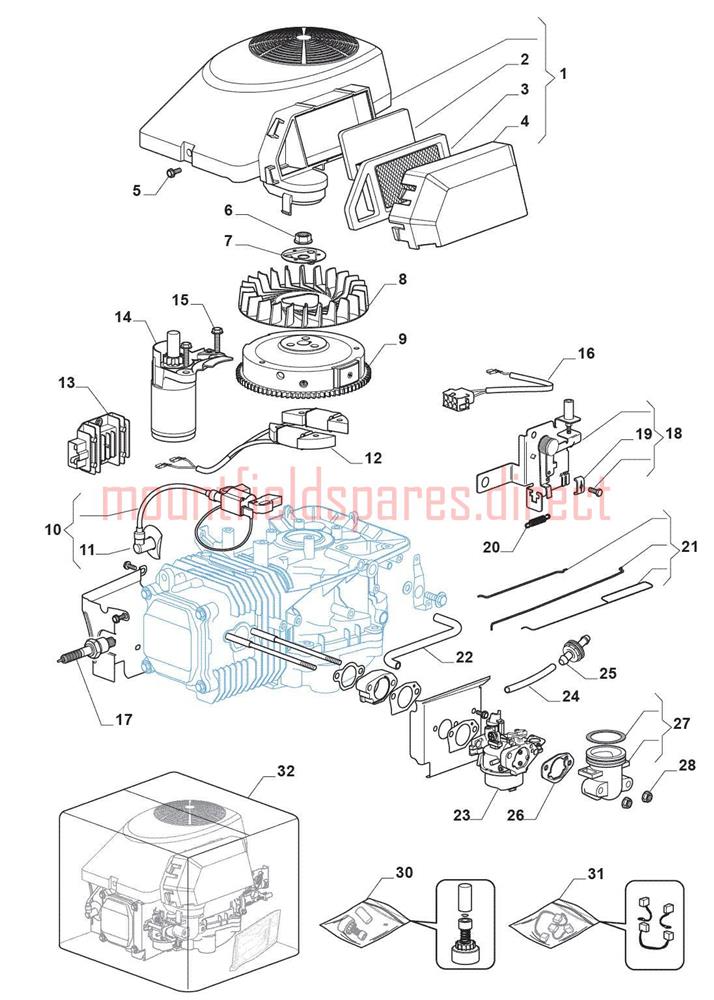

ENGINE Series 7250 (TRE0702) AIR FILTER-CARB assembly details for Mountfield Series 7250 OHV-414cc 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118550319/0COVER ASSEMBLY£129.74 Add to
002118550527/0PRE-FILTER£7.36 Add to
003118550321/0AIR FILTER£19.62 Add to
004118550322/0AIR FILTER COVER£32.99 Add to
005112791213/1SCREW M6 X 18£1.74 Add to
006118550237/0NUT£3.69 Add to
007118550236/0STARTER CUP£6.69 Add to
008118550235/0FLYWHEEL FAN£26.18 Add to
009118550234/1FLYWHEEL£226.22 Add to
010118550209/1IGNITION COIL (EARLY VERSION)£43.89 Add to
011118550448/0SPARK PLUG CAP£17.18 Add to
012118550210/1CHARGE COIL ASSEMBLY (EARLY VERSION)£60.24 Add to
013118550208/1RECTIFIER (EARLY VERSION)£77.95 Add to
014118550214/0STARTER MOTOR (EARLY VERSION) No returns on this i£162.96 Add to
015119216047/0HEX-HEAD SCREW M8 X 35£2.06 Add to
0179400-0244-00SPARK PLUG [CHAMPION RC12YC]£6.35 Add to
018118550331/1REMOTE CONTROL ASSEMBLY£42.53 Add to
019118550212/0Casing Clamp (OBSOLETE)N/A
020118550213/0SPRING£2.47 Add to
021118550239/1GOVERNOR ROD£14.18 Add to
022118550325/1BREATHER TUBE£12.14 Add to
023118550435/1CARBURETTOR£84.77 Add to
024118550432/0FUEL PIPE£3.15 Add to
025118550427/0FUEL FILTER£5.87 Add to
026118550764/0CARBURETTOR GASKET£6.01 Add to
027118550320/1INTAKE MANIFOLD£30.07 Add to
028112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
030118550365/1STARTER DRIVE KIT£52.06 Add to
031118550332/1BRUSH HOLD£35.71 Add to
032118550439/1ENGINE ASSEMBLY 414cc TRE0702£681.63 Add to
