ENGINE (GGP) THROTTLE CABLE FUEL TANK-SOLENOID MUFFLER-EXHAUST

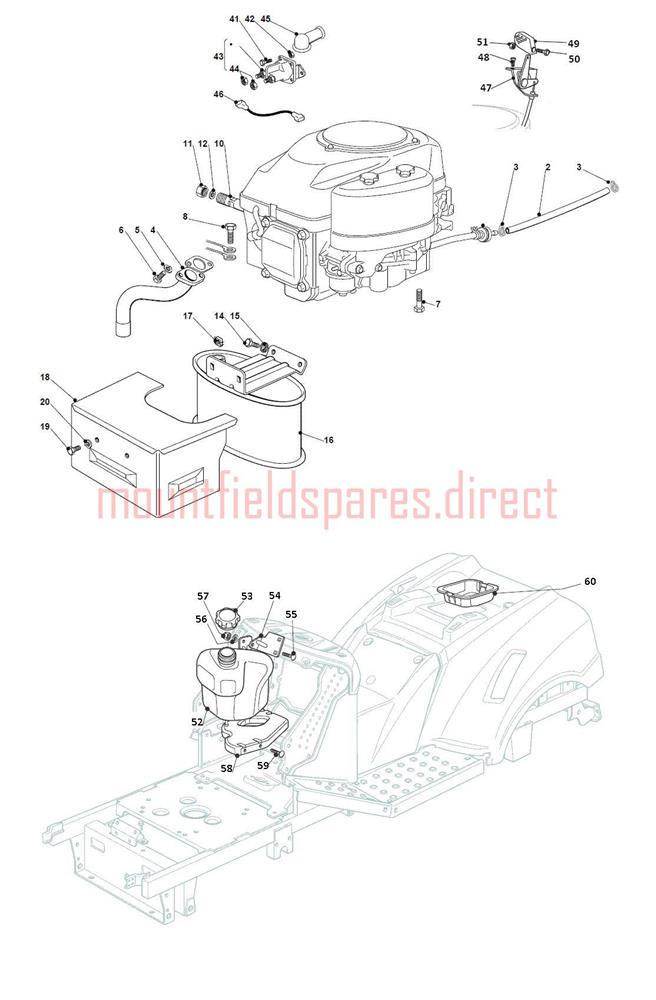

ENGINE (GGP) THROTTLE CABLE FUEL TANK-SOLENOID MUFFLER-EXHAUST assembly details for Mountfield Series 7750-452cc OHV 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002325869057/0FUEL TUBE L=1000£20.72 Add to
003118375051/1CABLE CLAMP B&S [GREEN]£1.91 Add to
004118738231/1EXHAUST PIPE£22.35 Add to
005112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
006112737450/0SCREW 5/16 x 3/4 18 THREAD£3.55 Add to
007112735108/1TELF-FORM SCREW 3/8" X 1¼" UNC£2.57 Add to
008112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
010127598060/0OIL DRAIN EXTENSION£8.52 Add to
011118737849/0OIL DRAIN PLUG£2.47 Add to
012118401001/1OIL DRAIN SEAL£2.06 Add to
014112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
015112540260/0INNER TOOTHED WASHER M8£2.06 Add to
016182750010/0MUFFLER£117.75 Add to
017112360425/0SQUARE NUT M8£2.18 Add to
018382598039/0MUFFLER GUARD£65.50 Add to
019112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
020112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
041112791213/1SCREW M6 X 18£1.74 Add to
042112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
043118736113/0SOLENOID£39.22 Add to
0449743-5121-32LOCK NUT 5/16"£1.79 Add to
045118564864/1RED RUBBER TERMINAL COVER£6.01 Add to
046125065017/0MOTOR/SOLENOID CONNECT CABLE£9.82 Add to
047182000212/0THROTTLE CABLE£24.75 Add to
048125943012/0FLANGED SCREW M4 x 10 WZ£2.06 Add to
049325592000/1LEVER KNOB£2.32 Add to
050112726388/0CROSS-HEAD SCREW M4X12£2.06 Add to
051112290800/0HEXAGON NUT M4 UNI 5588 ACC.6S£2.06 Add to
052325735124/0FUEL TANK£85.50 Add to
053125795001/1FUEL TANK CAP£8.32 Add to
054325785291/0UPPER FUEL TANK SUPPORT£8.42 Add to
055112789195/0SCREW M5 x 20£2.06 Add to
057112437503/0LOCK PLATE£2.06 Add to
058325785289/0LOWER FUEL TANK SUPPORT£9.68 Add to
059112735403/0FLANGED HEX-HEAD SCREW D=6 x 18£2.06 Add to
060325207176/0TANK COVER [BLACK]£8.37 Add to
