ENGINE (GGP) FUEL TANK

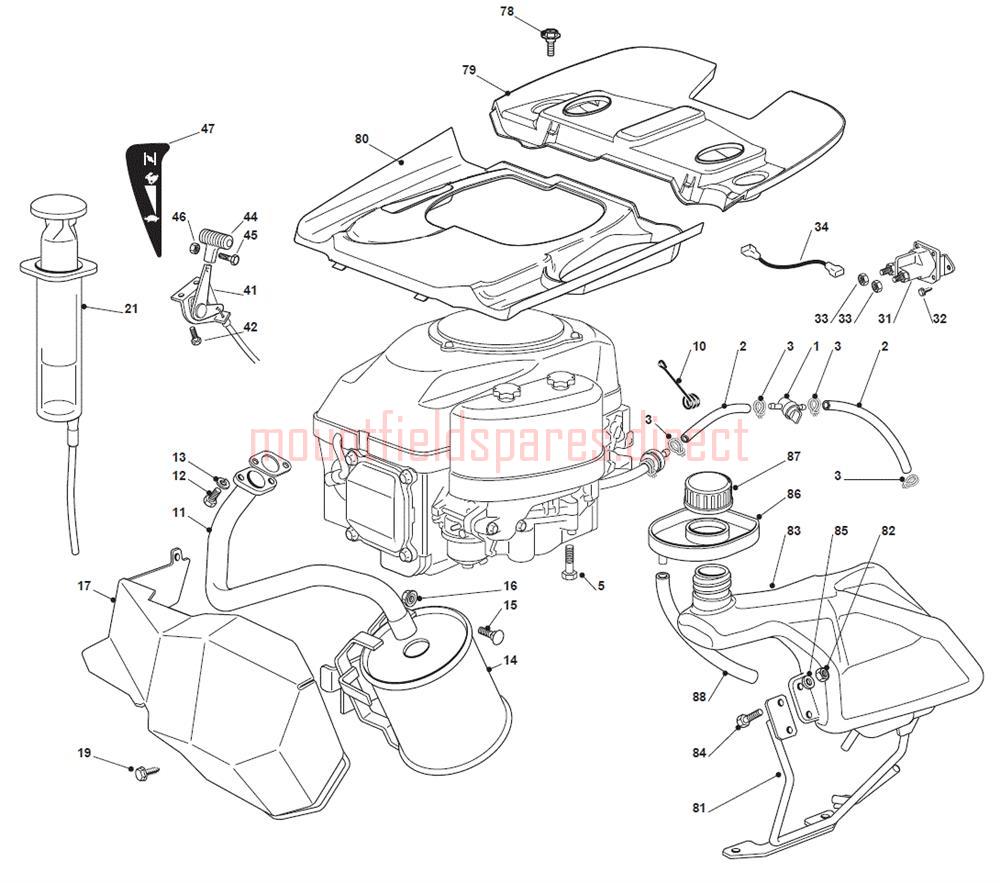

ENGINE (GGP) FUEL TANK assembly details for Mountfield Series 7250 OHV-414cc 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118562996/0FUEL TAP B&S x POWER BUILT 12,5£15.81 Add to
002325869035/1CONNECTING TUBE£9.82 Add to
003118375051/1CABLE CLAMP B&S [GREEN]£1.91 Add to
005112735108/1TELF-FORM SCREW 3/8" X 1¼" UNC£2.57 Add to
010125430239/1SPRING£2.32 Add to
011118738240/0EXHAUST PIPE£57.52 Add to
012112737450/0SCREW 5/16 x 3/4 18 THREAD£3.55 Add to
013112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
014118716133/0MUFFLER£156.99 Add to
015112815210/0SCREW M6 x 20£2.06 Add to
016112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
017384598093/0MUFFLER GUARD£124.29 Add to
019112729601/1SELF-TAP SCREW TE FL 5.5 x 16£2.06 Add to
021118718000/0OIL EMPTYING SYRINGE£16.22 Add to
031118736113/0SOLENOID£39.22 Add to
032112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
0339743-5121-32LOCK NUT 5/16"£1.79 Add to
034127065050/0STARTER CONNECT CABLE£6.69 Add to
041184000250/1THROTTLE CABLE£26.18 Add to
042125943012/0FLANGED SCREW M4 x 10 WZ£2.06 Add to
044125394501/0THROTTLE HANDLE [BLACK]£2.06 Add to
045112726389/0SCREW M4 X 12 (BLACK GALVANIZED)£2.06 Add to
046112290800/0HEXAGON NUT M4 UNI 5588 ACC.6S£2.06 Add to
047114363697/0THROTTLE DECAL£2.06 Add to
078125943010/0FLANGED SCREW£2.06 Add to
079327110515/0SEAT SWITCH COVER [BLACK]£12.55 Add to
080327110505/0ENGINE COVER [BLACK]£22.37 Add to
081384783049/0FUEL TANK SUPPORT£101.13 Add to
082112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
083327733007/0FUEL TANK£75.23 Add to
084112791400/0SCREW TE M6x20 UNI 5739 ACC.4.8£1.79 Add to
085112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
086327600061/2FUEL TANK GUARD£4.10 Add to
087125795000/1FUEL TANK CAP£8.04 Add to
088325869014/1FUEL PIPE L=410£7.92 Add to
