Series 7500 (TRE0701) AIR FILTER-CARB

Series 7500 (TRE0701) AIR FILTER-CARB assembly details for Mountfield Series 7500-432cc OHV 2015 model

Parts list

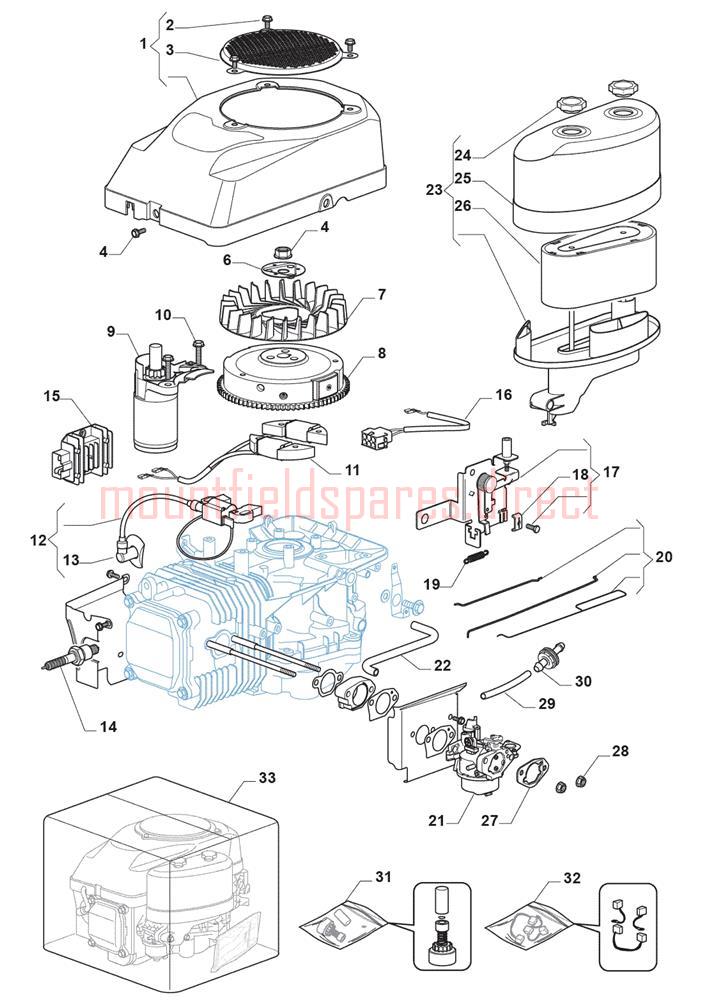

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118550215/0COVER HOUSING£103.85 Add to
002118550203/0FAN COVER INSERT£45.26 Add to
003112790500/0HEX-HEAD SCREW M6 x 10£2.06 Add to
004112791213/1SCREW M6 X 18£1.74 Add to
005118550237/0NUT£3.69 Add to
006118550236/0STARTER CUP£6.69 Add to
007118550235/0FLYWHEEL FAN£26.18 Add to
008118550234/1FLYWHEEL£226.22 Add to
009118550214/0STARTER MOTOR (EARLY VERSION) No returns on this i£162.96 Add to
010119216047/0HEX-HEAD SCREW M8 X 35£2.06 Add to
011118550210/1CHARGE COIL ASSEMBLY (EARLY VERSION)£60.24 Add to
012118550209/1IGNITION COIL (EARLY VERSION)£43.89 Add to
013118550448/0SPARK PLUG CAP£17.18 Add to
0149400-0244-00SPARK PLUG [CHAMPION RC12YC]£6.35 Add to
015118550208/1RECTIFIER (EARLY VERSION)£77.95 Add to
017118550331/1REMOTE CONTROL ASSEMBLY£42.53 Add to
018118550212/0Casing Clamp (OBSOLETE)N/A
019118550213/0SPRING£2.47 Add to
020118550239/1GOVERNOR ROD£14.18 Add to
021118550375/0CARBURETTOR£110.67 Add to
022118550225/1BREATHER FUEL PIPE£9.28 Add to
023118550202/2AIR FILTER ASSEMBLY£43.77 Add to
024118550201/0KNOB£2.66 Add to
025118550200/0AIR FILTER COVER£17.04 Add to
026118550199/0AIR FILTER£25.44 Add to
027118550762/0CARBURETTOR GASKET£6.88 Add to
028112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
029118550432/0FUEL PIPE£3.15 Add to
030118550427/0FUEL FILTER£5.87 Add to
031118550365/1STARTER DRIVE KIT£52.06 Add to
032118550332/1BRUSH HOLD£35.71 Add to
033118550451/0ENGINE ASSEMBLY 432cc (TRE0701)No Returns on this£755.97 Add to
