MULCHING KIT ART.NO 13-0926-11

MULCHING KIT ART.NO 13-0926-11 assembly details for Mountfield LAWN-TRACTORS ACCESSORIES 2005 model

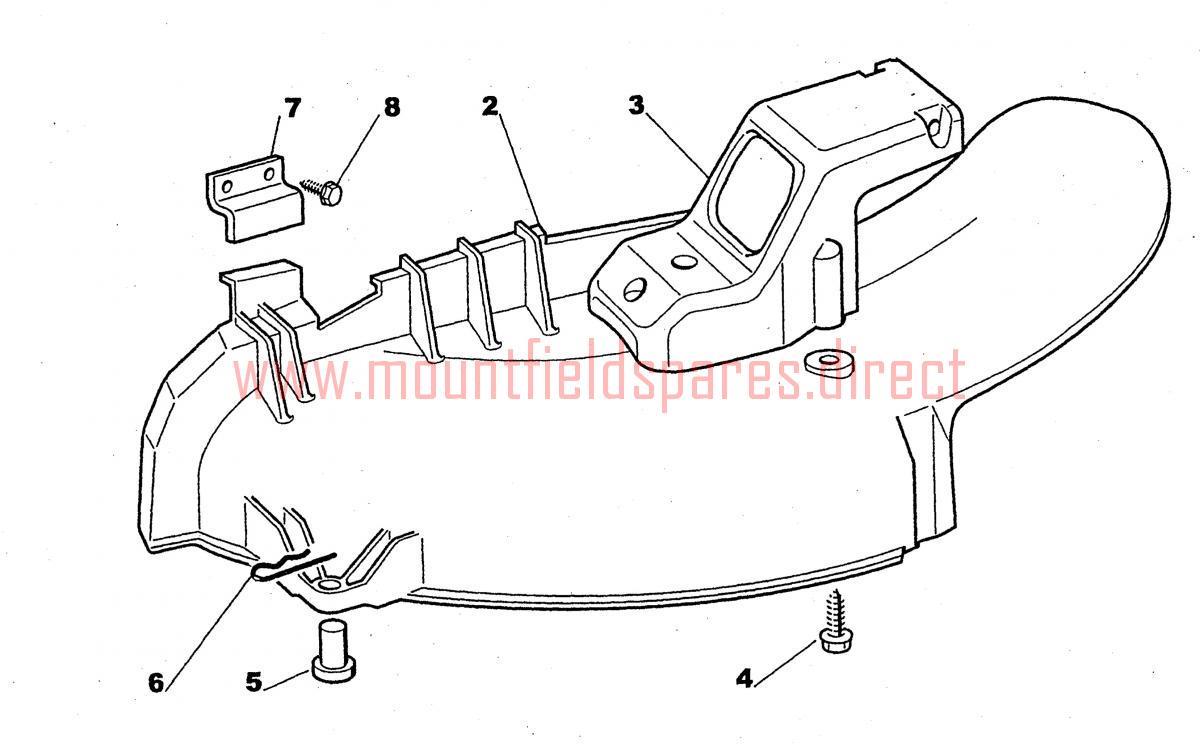

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002327140052/0MULCHING SHOE£18.61 Add to
0031136-0952-01Fulcrum (OBSOLETE)N/A
004112735410/0FLANGED HEX-HEAD SCREW D=6 x 35£2.06 Add to
005125510022/1PIN£3.40 Add to
006124487998/0R CLIP D=2£2.06 Add to
0071136-1207-01Clamp (OBSOLETE)N/A
008112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
