MULCHING KIT ART NO 13-0927-11 and 13-0932-11

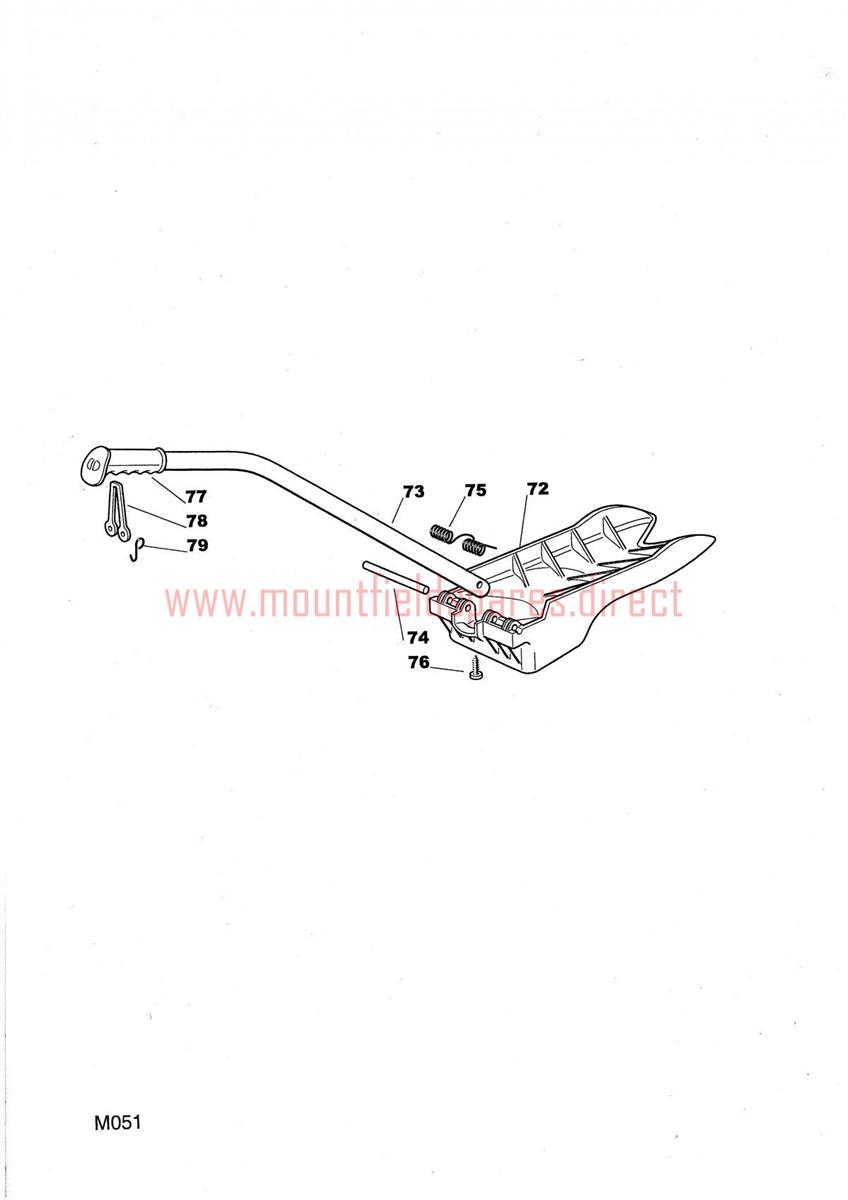

MULCHING KIT ART NO 13-0927-11 and 13-0932-11 assembly details for Mountfield LAWN-TRACTORS ACCESSORIES 2006 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
072	125140091/0	MULCHING DEFLECTOR SHOE	£32.99	Add to
072	125140092/0	MULCHING DEFLECTOR SHOE	£34.35	Add to
073	325394005/0	HANDLE	£18.53	Add to
074	1136-0903-01	Pin (OBSOLETE)	N/A
075	1136-0893-01	Spring (OBSOLETE)	N/A
076	112728690/0	SELF-TAP SCREW KA50 x 25	£0.79	Add to
078	125840011/1	LOCKING RUBBER TIE	£6.27	Add to
079	125253004/0	FIXING HOOK	£2.06	Add to
