MULCHING KIT ART NO 13-0934-11

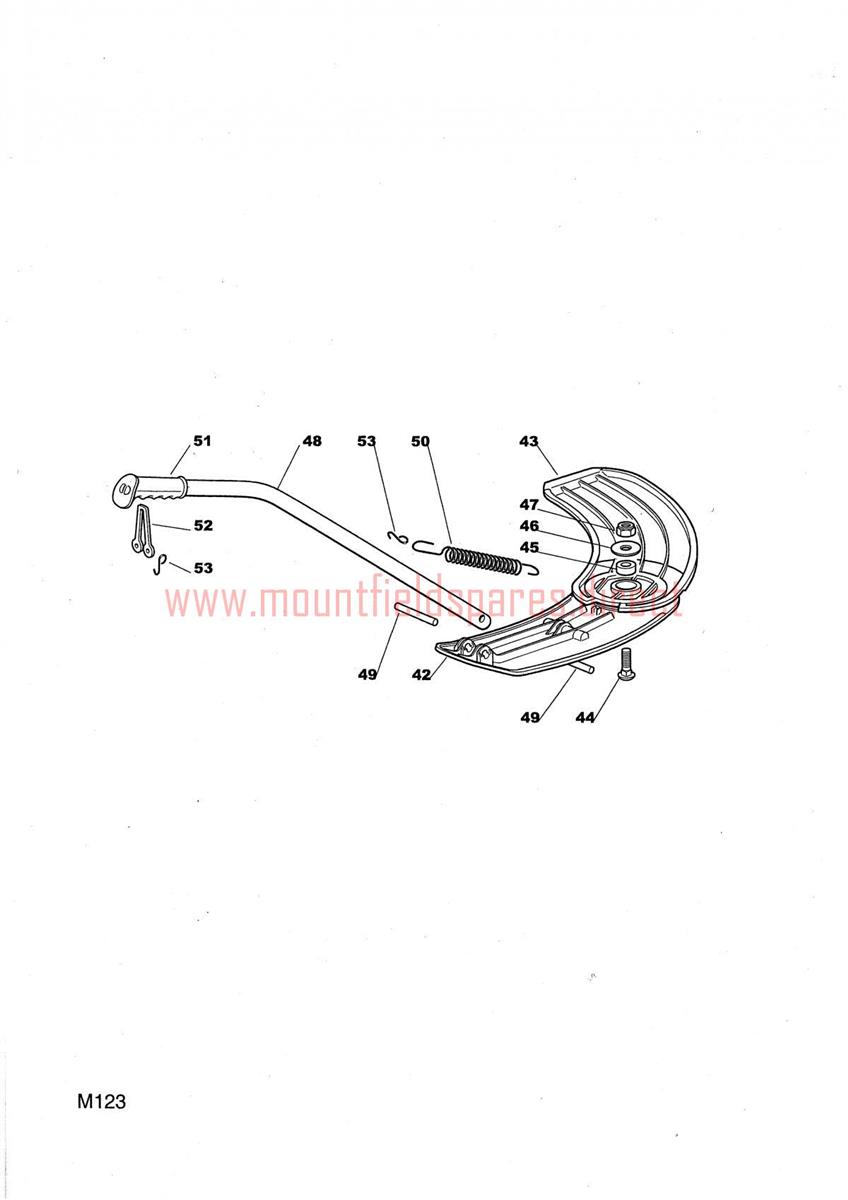

MULCHING KIT ART NO 13-0934-11 assembly details for Mountfield LAWN-TRACTORS ACCESSORIES 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
042327140055/0REAR MULCH SHOE£7.97 Add to
043327140054/0FRONT MULCH SHOE£7.97 Add to
044112818700/0SCREW M8 x 25£2.81 Add to
0451136-1255-01Bushing (OBSOLETE)N/A
046322672152/0ANTI-FRICTION WASHER 8.2 x 30 x 0.8£1.91 Add to
047112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
048327394003/2MULCHING PLUG HANDLE F72£68.42 Add to
0491136-1269-01Pin (OBSOLETE)N/A
050125430229/1SPRING£8.73 Add to
052125840011/1LOCKING RUBBER TIE£6.27 Add to
053125253004/0FIXING HOOK£2.06 Add to
