DEFLECTOR (M358A)

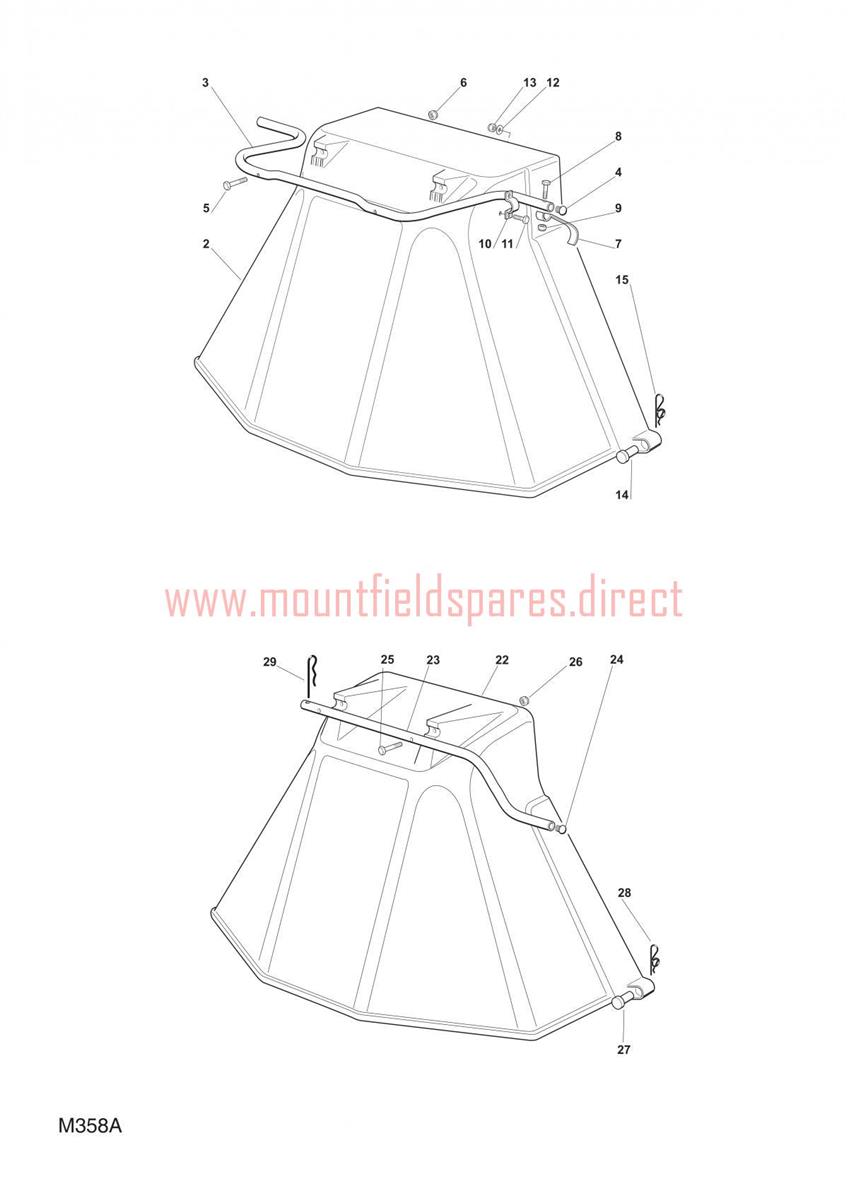

DEFLECTOR (M358A) assembly details for Mountfield LAWN-TRACTORS ACCESSORIES 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002484598062/0DEFLECTOR GUARD£79.98 Add to
003327869053/0SUPPORT PIPE£25.67 Add to
004118566113/0CAP£2.06 Add to
005112674701/0SCREW TE M6 x 35£2.06 Add to
006112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
007325547053/0GRASSCATCHER SWITCH PLATE£5.87 Add to
008112791500/0SCREW TE M6x25 UNI 5739 ACC.8.8£2.06 Add to
010325547049/0AXLE FIXING PLATE£3.55 Add to
011112788910/0HEX-HEAD SCREW M5 x 16£2.06 Add to
012112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
013112154320/0SELF-LOCKING NUT M5£2.06 Add to
014125510022/1PIN£3.40 Add to
015124487998/0R CLIP D=2£2.06 Add to
022382400003/1DEFLECTOR GUARD£117.16 Add to
023325869043/0SUPPORT ROD£18.67 Add to
024118566110/0HANDLE CAP D=22 [BLACK]£2.06 Add to
025112689515/0HEX-HEAD SCREW M6 x 45£2.06 Add to
029124487999/0R CLIP D=3£1.91 Add to
