FRONT WEIGHT TOW BAR

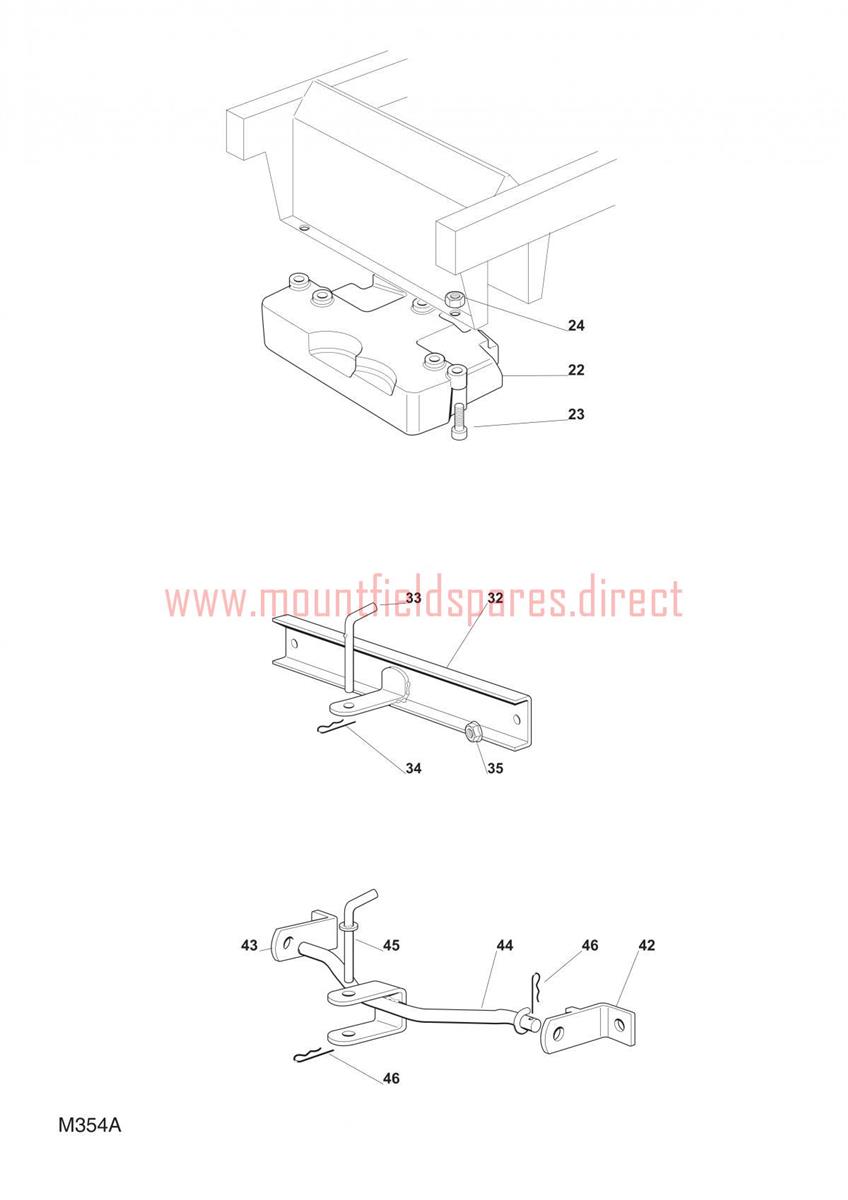

FRONT WEIGHT TOW BAR assembly details for Mountfield LAWN-TRACTORS ACCESSORIES 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
02225519997/1Weight (OBSOLETE)N/A
023112760520/0HEXAGON SOCKET HEAD SCREW M8 x 45£2.06 Add to
024112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
032112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
033125510021/1HITCH PIN£11.78 Add to
034124487999/0R CLIP D=3£1.91 Add to
035112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
042382735502/0BRACKET R/H£12.00 Add to
043325774213/0BRACKET L/H£5.05 Add to
044382033115/0SUPPORT ROD£37.08 Add to
045125510021/1HITCH PIN£11.78 Add to
046124487999/0R CLIP D=3£1.91 Add to
