MULCHING KIT (M356A)

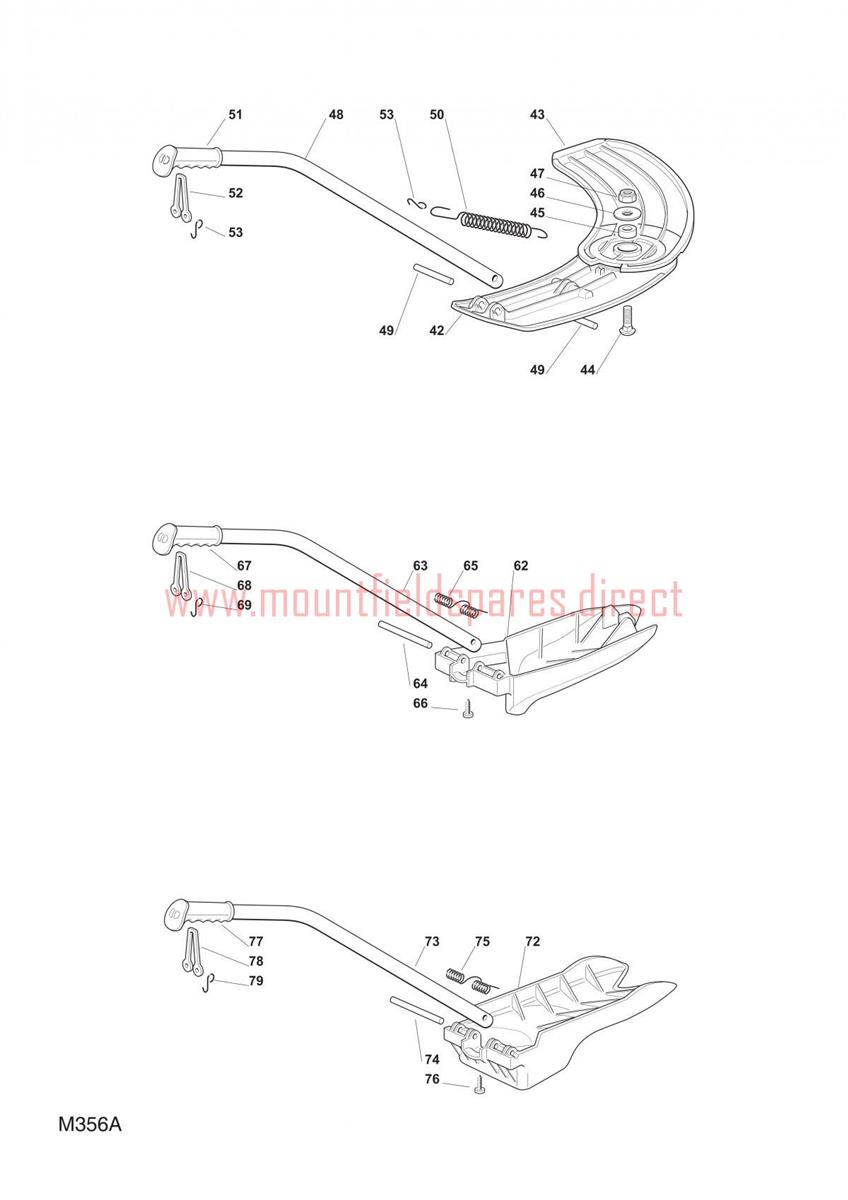

MULCHING KIT (M356A) assembly details for Mountfield LAWN-TRACTORS ACCESSORIES 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
042327140055/0REAR MULCH SHOE£7.97 Add to
043327140054/0FRONT MULCH SHOE£7.97 Add to
044112818700/0SCREW M8 x 25£2.81 Add to
045127047013/1BUSH£2.18 Add to
046322672152/0ANTI-FRICTION WASHER 8.2 x 30 x 0.8£1.91 Add to
047112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
048327394003/2MULCHING PLUG HANDLE F72£68.42 Add to
049127510116/0HANDLE FULCRUM PIN x MULCHING F72£8.73 Add to
050125430229/1SPRING£8.73 Add to
051325280000/1HAND GRIP KIT MULCHING RO£3.55 Add to
052125840011/1LOCKING RUBBER TIE£6.27 Add to
053125253004/0FIXING HOOK£2.06 Add to
062325140093/0MULCHING DEFLECTOR SHOE£32.99 Add to
063325394007/0MULCHING DEFLECTOR HANDLE£21.90 Add to
064125510077/0FULCRUM PIN£3.69 Add to
065125430245/0SPRING£3.28 Add to
066112735410/0FLANGED HEX-HEAD SCREW D=6 x 35£2.06 Add to
072125140091/0MULCHING DEFLECTOR SHOE£32.99 Add to
072125140092/0MULCHING DEFLECTOR SHOE£34.35 Add to
073325394005/0HANDLE£18.53 Add to
074125510074/0PIN£2.18 Add to
075125430240/0SPRING£6.16 Add to
076112728680/0FLANGED SCREW D=5 x 25£2.06 Add to
