MOWER DECK 85 cm FRAME

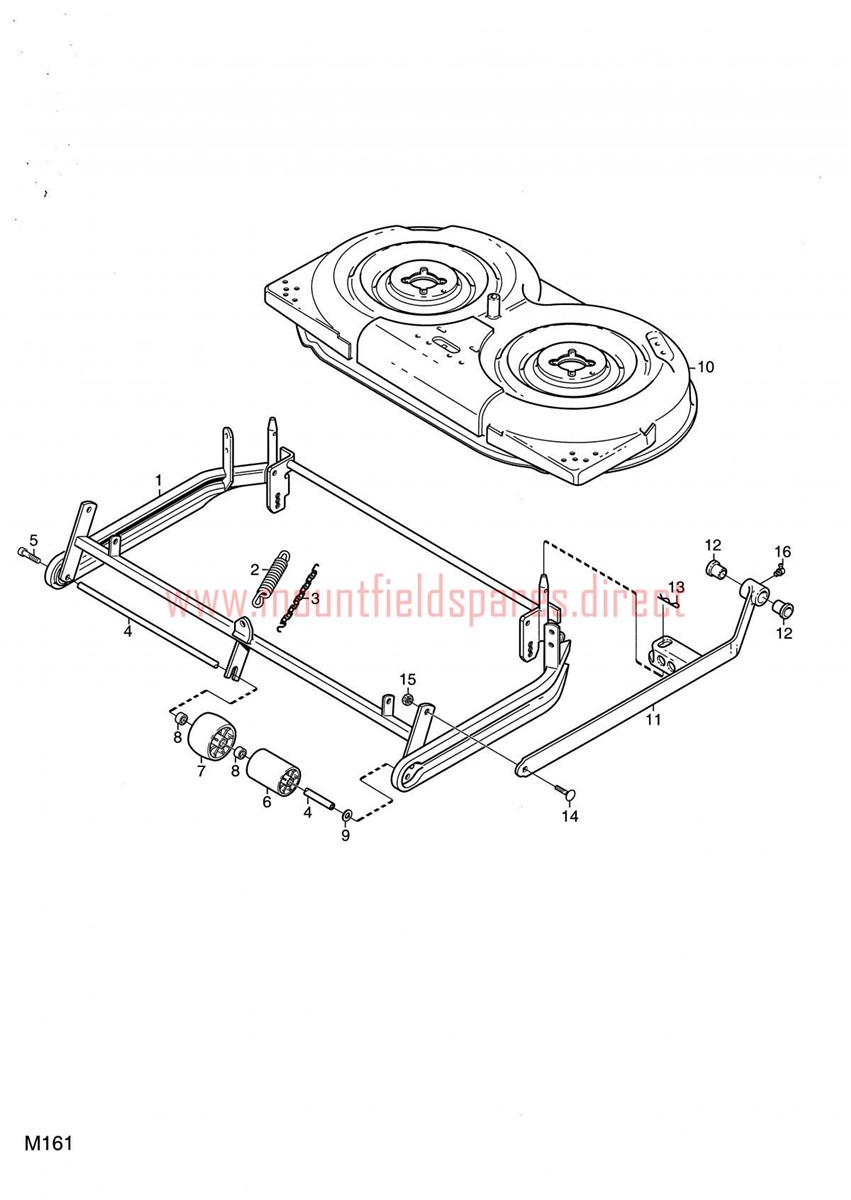

MOWER DECK 85 cm FRAME assembly details for Mountfield 2100 Series Mower Decks 85-92 2005 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-3025-01	DECK CASING 85M [YELLOW]	£514.45	Add to
002	1134-5625-01	MOWER DECK SPRING	£34.18	Add to
003	1134-5026-02	CHAIN	£41.16	Add to
004	1134-0304-05	SHAFT	£127.20	Add to
005	9935-1020-16	SCREW MC6S M10 x 20	£7.23	Add to
006	1134-2406-01	GUARD ROLLER	£24.95	Add to
007	1134-2405-01	CASING WHEEL	£24.95	Add to
008	1134-3047-01	SPACER	£8.04	Add to
009	112521390/0	WASHER M16 17 x 30 x 3	£1.91	Add to
010	1134-3025-01	DECK CASING 85M [YELLOW]	£514.45	Add to
011	1134-4991-02	Mower deck arm-red (OBSOLETE)	N/A
012	137038009/0	WHEEL BUSH	£6.09	Add to
013	9598-0003-02	SPRING PIN	£2.32	Add to
014	9898-1035-16	SCREW 10 x 35	£3.15	Add to
015	112156602/0	LOW SELF-LOCKING NUT M10	£1.79	Add to
016	9501-0502-00	GREASE JOINT	£8.87	Add to
099	8211-3040-01	Owner's manual (OBSOLETE)	N/A
