MOWER DECK 92 cm FRAME

MOWER DECK 92 cm FRAME assembly details for Mountfield 2100 Series Mower Decks 85-92 2005 model

Parts list

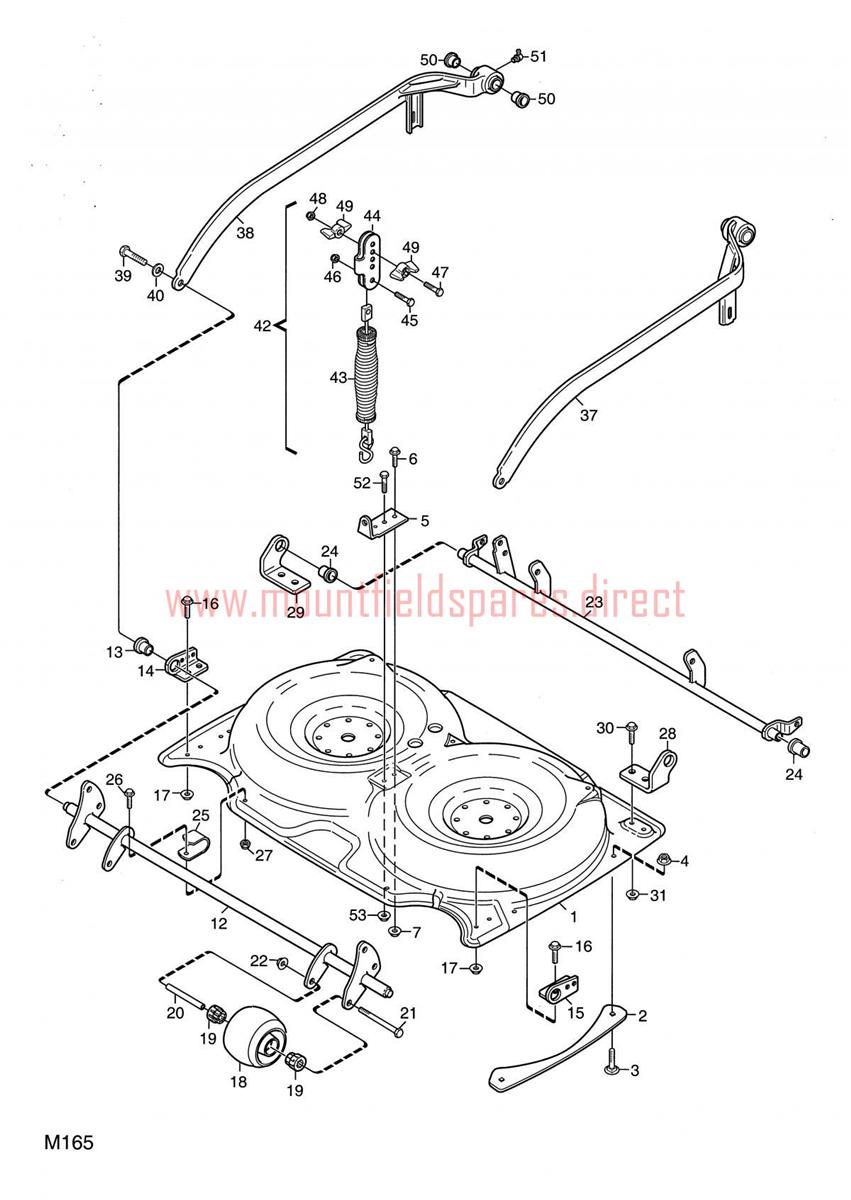

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-4888-01DECK CASING 92M [YELLOW] (OBSOLETE) (OBSOLETE)N/A
0021134-4323-01GUIDE PLATE£42.53 Add to
0039897-0616-16SCREW£2.47 Add to
004112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
0051134-4320-06LIFT BRACKET (BLACK)£23.79 Add to
0069959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
007112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0121134-4890-05Front axle-red (OBSOLETE)N/A
0131134-9024-01PLASTIC BUSH (4 PCS)£19.66 Add to
0141134-4292-01BEARING HOLDER LH£26.18 Add to
0151134-4292-02BEARING HOLDER RH£17.83 Add to
016112800815/0SCREW TE FL M8 x 16£2.06 Add to
0181134-4284-01WHEEL£32.99 Add to
0191134-4319-01PLASTIC BUSH£7.10 Add to
0201134-4318-01SPACER TUBE£10.50 Add to
0219997-0812-02SCREW M6S M8 x 120£2.06 Add to
0231134-5892-06Rear axle-red (OBSOLETE)N/A
0251134-4689-01SUPPORT BRACKET£25.38 Add to
0269959-0616-16SCREW M6SF M6 X 16£2.06 Add to
027112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0281134-5180-01BRACKET-LH£27.33 Add to
0291134-5180-02BRACKET-RH£28.97 Add to
0371134-5599-09MOWER DECK ARM L/H [RED]£138.22 Add to
0381134-5599-10MOWER DECK ARM R/H [RED]£138.22 Add to
0399997-1016-16SCREW M6S M10 x 16£4.52 Add to
0409699-0030-02WASHER (10 X 26 X 2)£2.14 Add to
0421134-4805-01KIT-LIFT SPRING (VILLA 92M)£91.78 Add to
0431134-4574-02DECK SPRING£56.05 Add to
0441134-4577-01SPRING PIVOT£50.70 Add to
045112793301/0HEX-HEAD SCREW M8 x 25£2.06 Add to
046112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
047119216047/0HEX-HEAD SCREW M8 X 35£2.06 Add to
0491134-4481-01WING NUT (M8)£2.06 Add to
050137038009/0WHEEL BUSH£6.09 Add to
0519501-0502-00GREASE JOINT£8.87 Add to
0529997-0620-16SCREW M6S M6 x 20£2.06 Add to
0998211-3049-01Owner's manual (OBSOLETE) (OBSOLETE)N/A
