MOWER DECK 92 cm TRANSMISSION

MOWER DECK 92 cm TRANSMISSION assembly details for Mountfield 2100 Series Mower Decks 85-92 2005 model

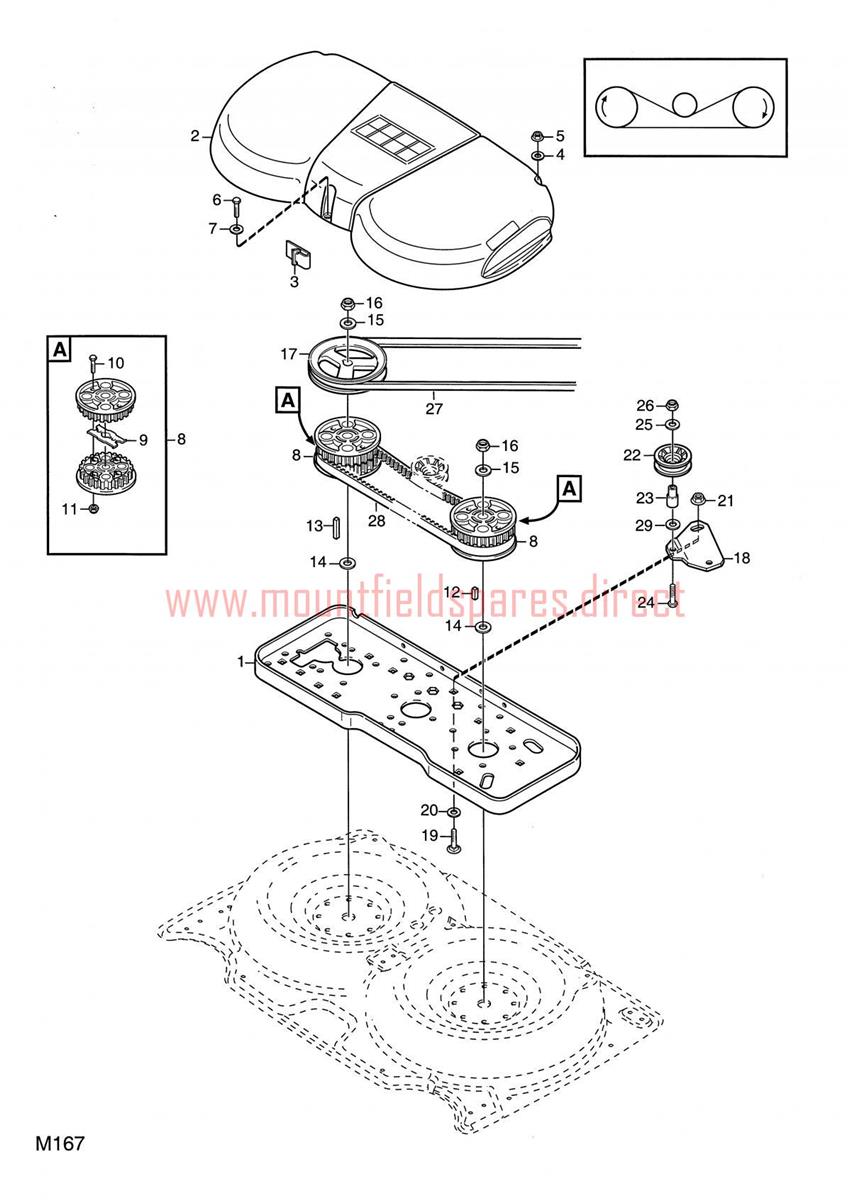

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-5229-01	Transmission plate (OBSOLETE)	N/A
002	1134-4887-02	TRANSMISSION COVER	£132.07	Add to
003	1134-3632-01	BELT GUIDE	£5.85	Add to
004	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
005	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
006	9942-0612-16	SCREW M6SF-TT M6 x 12	£5.73	Add to
007	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
008	1134-3679-01	TOOTHED BELT PULLEY	£48.96	Add to
009	1134-3597-01	REINFORCEMENT BAR	£14.45	Add to
010	112791500/0	SCREW TE M6x25 UNI 5739 ACC.8.8	£2.06	Add to
011	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
012	1134-0323-01	KEY (L=25)	£10.91	Add to
013	1134-0323-04	KEY (L=45)	£13.23	Add to
014	112521390/0	WASHER M16 17 x 30 x 3	£1.91	Add to
015	9699-0121-02	WASHER	£2.06	Add to
016	9712-1231-02	LOCKING NUT M12	£6.83	Add to
017	1134-4733-01	BELT PULLEY	£128.77	Add to
018	1134-4537-01	Tension arm (OBSOLETE)	N/A
019	9897-0825-16	SCREW M8 x 25	£3.15	Add to
020	122671652/0	WASHER 12.3 x 20 x 2	£2.74	Add to
021	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
022	1134-4686-01	TENSION PULLEY	£57.52	Add to
023	1134-4316-03	SHAFT	£14.82	Add to
024	9997-1040-12	SCREW M6S M10 x 40	£3.15	Add to
025	9699-0030-02	WASHER (10 X 26 X 2)	£2.14	Add to
026	1134-4775-01	LOCK NUT	£2.47	Add to
027	9585-0128-01	DRIVE BELT	£30.07	Add to
028	9585-0095-01	TOOTHED BELT	£69.78	Add to
029	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
