MOWER DECK 92 cm FRAME

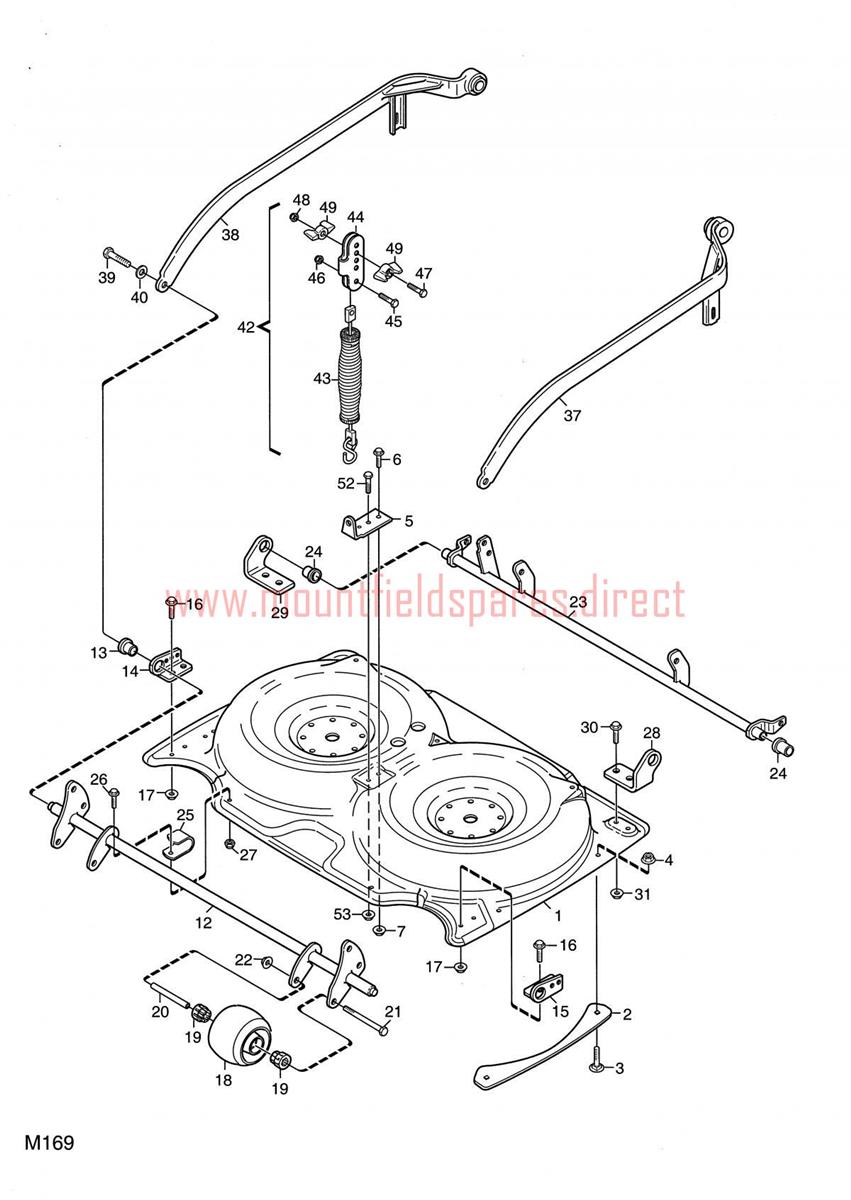

MOWER DECK 92 cm FRAME assembly details for Mountfield 4100 Series Mower Decks 92-107 2005 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-4888-01	DECK CASING 92M [YELLOW] (OBSOLETE) (OBSOLETE)	N/A
002	1134-4323-01	GUIDE PLATE	£42.53	Add to
003	9897-0616-16	SCREW	£2.47	Add to
004	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
005	1134-4320-06	LIFT BRACKET (BLACK)	£23.79	Add to
006	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
007	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
012	1134-4890-05	Front axle-red (OBSOLETE)	N/A
013	1134-9024-01	PLASTIC BUSH (4 PCS)	£19.66	Add to
014	1134-4292-01	BEARING HOLDER LH	£26.18	Add to
015	1134-4292-02	BEARING HOLDER RH	£17.83	Add to
016	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
018	1134-4284-01	WHEEL	£32.99	Add to
019	1134-4319-01	PLASTIC BUSH	£7.10	Add to
020	1134-4318-01	SPACER TUBE	£10.50	Add to
021	9997-0812-02	SCREW M6S M8 x 120	£2.06	Add to
023	1134-5892-06	Rear axle-red (OBSOLETE)	N/A
025	1134-4689-01	SUPPORT BRACKET	£25.38	Add to
026	9959-0616-16	SCREW M6SF M6 X 16	£2.06	Add to
027	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
028	1134-5180-01	BRACKET-LH	£27.33	Add to
029	1134-5180-02	BRACKET-RH	£28.97	Add to
037	1134-5600-03	MOWER DECK ARM {RED]	£132.15	Add to
038	1134-5600-04	Mower deck arm-RH (OBSOLETE)	N/A
039	9997-1016-16	SCREW M6S M10 x 16	£4.52	Add to
040	9699-0030-02	WASHER (10 X 26 X 2)	£2.14	Add to
042	1134-4688-02	ACCESSORY BAG	£94.93	Add to
043	1134-4574-01	DECK SPRING	£59.19	Add to
044	1134-4577-01	SPRING PIVOT	£50.70	Add to
045	112793301/0	HEX-HEAD SCREW M8 x 25	£2.06	Add to
046	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
047	119216047/0	HEX-HEAD SCREW M8 X 35	£2.06	Add to
049	1134-4481-01	WING NUT (M8)	£2.06	Add to
052	9997-0620-16	SCREW M6S M6 x 20	£2.06	Add to
099	8211-3056-01	Owner's manual (OBSOLETE)	N/A
