MOWER DECK 85 cm BLADES

MOWER DECK 85 cm BLADES assembly details for Mountfield 2100 Series Mower Decks 85-92 2006 model

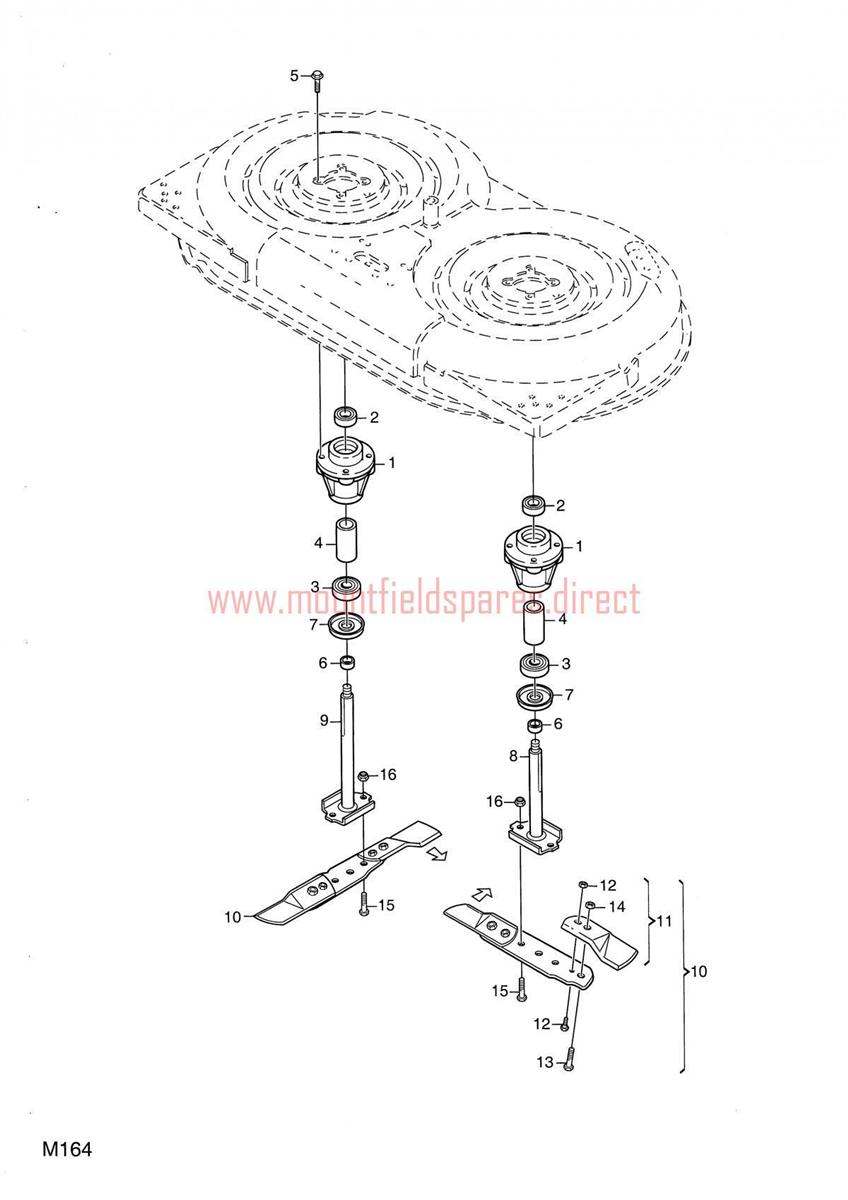

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-3841-01	BEARING BOX ASSEMBLY (OBSOLETE) (OBSOLETE)	N/A
002	120001215/0	BEARING 6203 2RS C3	£32.57	Add to
003	9549-0020-00	BALL BEARING	£13.95	Add to
004	1134-0051-05	SPACER (L=50.9)	£10.49	Add to
005	9945-0825-16	SCREW M6SF M8 x 25	£2.32	Add to
006	1134-3725-01	SPACER L=12	£13.64	Add to
007	1134-5130-01	BEARING COVER (OBSOLETE) (OBSOLETE)	N/A
008	1134-4600-01	BLADE SHAFT L=146mm	£69.78	Add to
009	1134-4600-05	BLADE SHAFT	£71.14	Add to
010	1134-9080-01	BLADE BAR ASSEMBLY-85M [2 PCS]	£105.21	Add to
011	1134-9082-01	BLADE TIP KIT [2 PCS]	£36.21	Add to
012	1134-9054-01	SHEAR BOLT KIT [6 x Bolts & Nuts]	£8.84	Add to
013	112792610/0	HEX-HEAD SCREW M8 x 16	£2.02	Add to
014	112155010/0	SELF-LOCKING NUT M8 A-LOK ACC.6S	£2.47	Add to
015	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
016	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
