MOWER DECK 85 cm TRANSMISSION

MOWER DECK 85 cm TRANSMISSION assembly details for Mountfield 2100 Series Mower Decks 85-92 2006 model

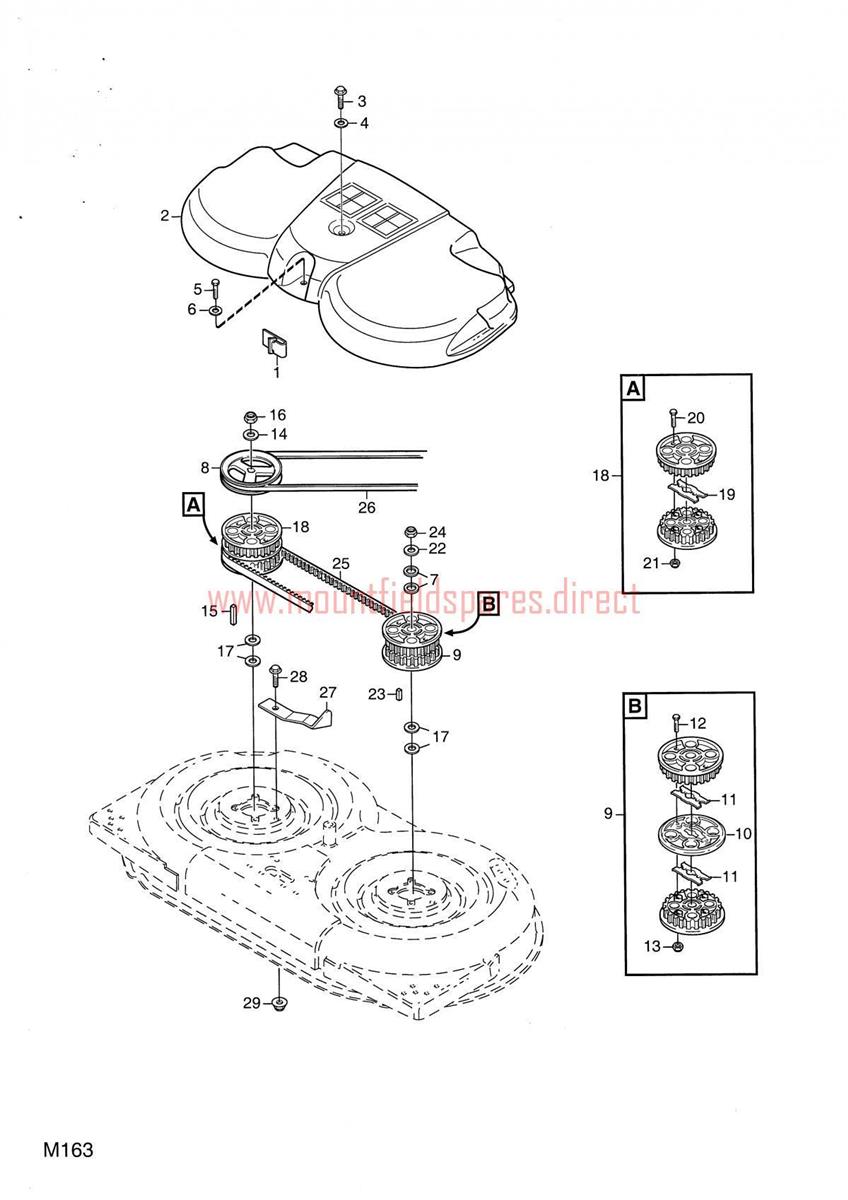

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-3632-01	BELT GUIDE	£5.85	Add to
002	1134-4983-02	TRANSMISSION COVER [BLACK]	£130.40	Add to
003	9942-0850-12	Screw (OBSOLETE)	N/A
004	122671651/0	WASHER 8.3 x 22 x 2	£2.32	Add to
005	9997-0620-16	SCREW M6S M6 x 20	£2.06	Add to
006	112521460/0	WASHER M6 6.5 x 22 x 1.5	£0.79	Add to
007	112521390/0	WASHER M16 17 x 30 x 3	£1.91	Add to
008	1134-4988-01	BELT PULLEY	£149.23	Add to
009	1134-3679-02	TOOTHED BELT PULLEY	£67.05	Add to
010	1134-3598-01	PLATE-BELT PULLEY	£19.54	Add to
011	1134-3597-01	REINFORCEMENT BAR	£14.45	Add to
012	112792099/0	HEX HEAD SCREW M6 x 30	£1.79	Add to
013	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
014	1134-5236-01	WASHER	£4.59	Add to
015	9600-0147-00	Key (OBSOLETE)	N/A
016	1134-4775-01	LOCK NUT	£2.47	Add to
018	1134-3679-01	TOOTHED BELT PULLEY	£48.96	Add to
020	112791500/0	SCREW TE M6x25 UNI 5739 ACC.8.8	£2.06	Add to
023	1134-0323-01	KEY (L=25)	£10.91	Add to
025	9585-0135-01	TOOTHED BELT	£32.99	Add to
026	1134-9076-01	DECK DRIVE BELT	£31.63	Add to
027	1134-3014-01	BELT TENSIONER	£45.26	Add to
028	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
029	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
