MOWER DECK 92 cm BLADES

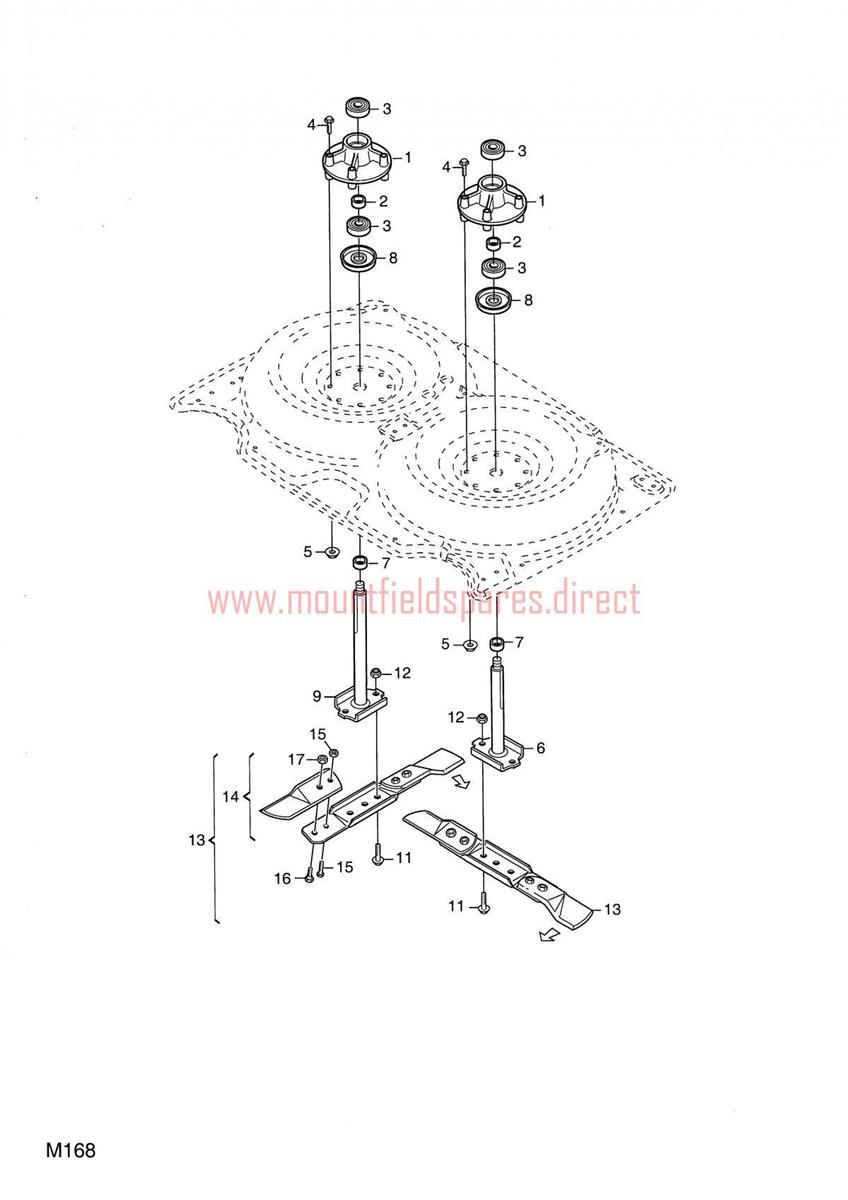

MOWER DECK 92 cm BLADES assembly details for Mountfield 2100 Series Mower Decks 85-92 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-5049-01BEARING BOX ASSEMBLY£125.61 Add to
0021134-3725-04SPACER L=25.5£9.15 Add to
0039549-0020-00BALL BEARING£13.95 Add to
004112691900/0HEX-HEAD SCREW£1.91 Add to
005112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0061134-5052-04BLADE SHAFT L=131mm£67.05 Add to
0081134-5130-01BEARING COVER (OBSOLETE) (OBSOLETE)N/A
0091134-5052-03BLADE SHAFT L=150mm£71.14 Add to
011112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
012112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0131134-4895-01BLADE BAR ASSY£50.70 Add to
0141134-9123-01BLADE TIP KIT-CW [2 PCS]£35.71 Add to
0151134-9054-01SHEAR BOLT KIT [6 x Bolts & Nuts]£8.84 Add to
0161134-4479-01SHOULDER BOLT (M8)£9.00 Add to
017112155010/0SELF-LOCKING NUT M8 A-LOK ACC.6S£2.47 Add to
