MOWER DECK 107 cm BLADES

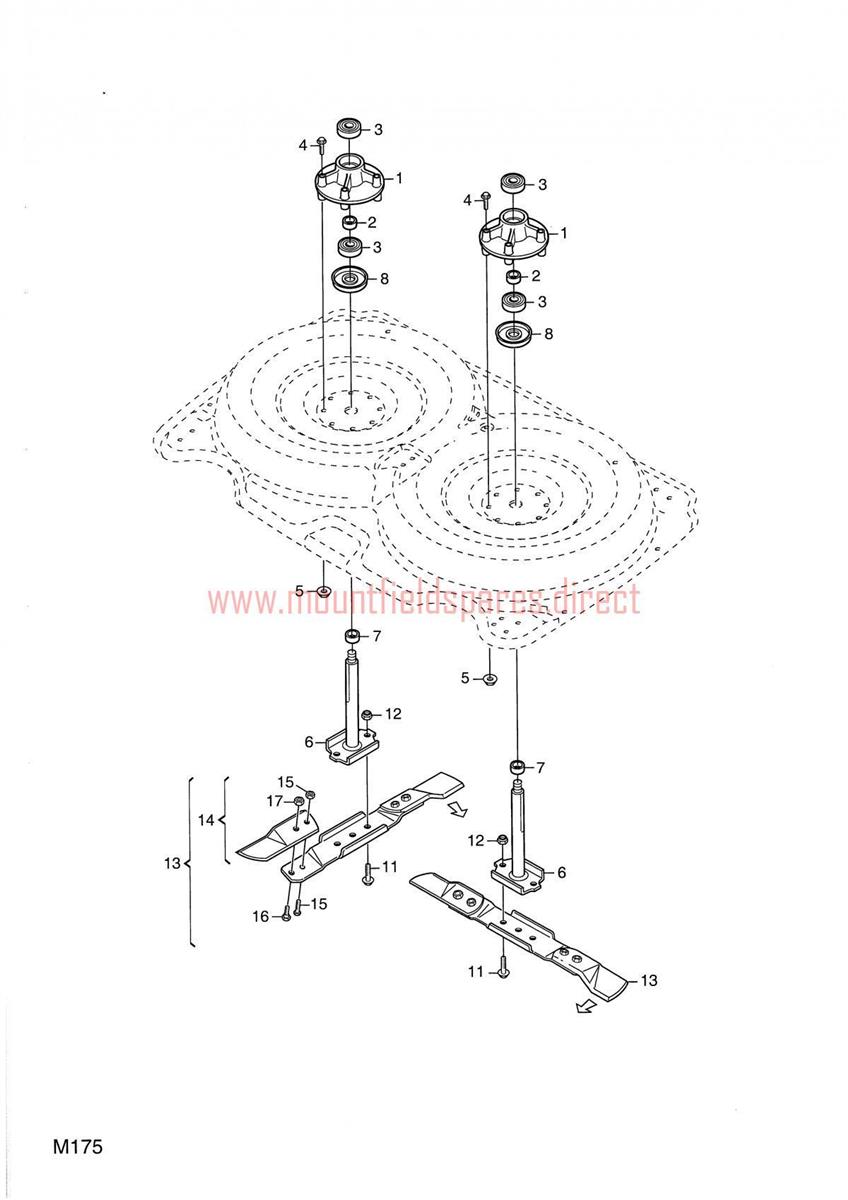

MOWER DECK 107 cm BLADES assembly details for Mountfield 4100 Series Mower Decks 92-107 2006 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-5049-01	BEARING BOX ASSEMBLY	£125.61	Add to
002	1134-3725-04	SPACER L=25.5	£9.15	Add to
003	9549-0020-00	BALL BEARING	£13.95	Add to
004	112691900/0	HEX-HEAD SCREW	£1.91	Add to
005	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
006	1134-5052-04	BLADE SHAFT L=131mm	£67.05	Add to
008	1134-5130-01	BEARING COVER (OBSOLETE) (OBSOLETE)	N/A
011	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
012	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
013	1134-9121-01	BLADE BAR ASSEMBLY-107M [2 PCS]	£120.90	Add to
014	1134-9123-01	BLADE TIP KIT-CW [2 PCS]	£35.71	Add to
015	1134-9054-01	SHEAR BOLT KIT [6 x Bolts & Nuts]	£8.84	Add to
016	1134-4479-01	SHOULDER BOLT (M8)	£9.00	Add to
017	112155010/0	SELF-LOCKING NUT M8 A-LOK ACC.6S	£2.47	Add to
