MOWER DECK 107 cm CONTROLS

MOWER DECK 107 cm CONTROLS assembly details for Mountfield 4100 Series Mower Decks 92-107 2006 model

Parts list

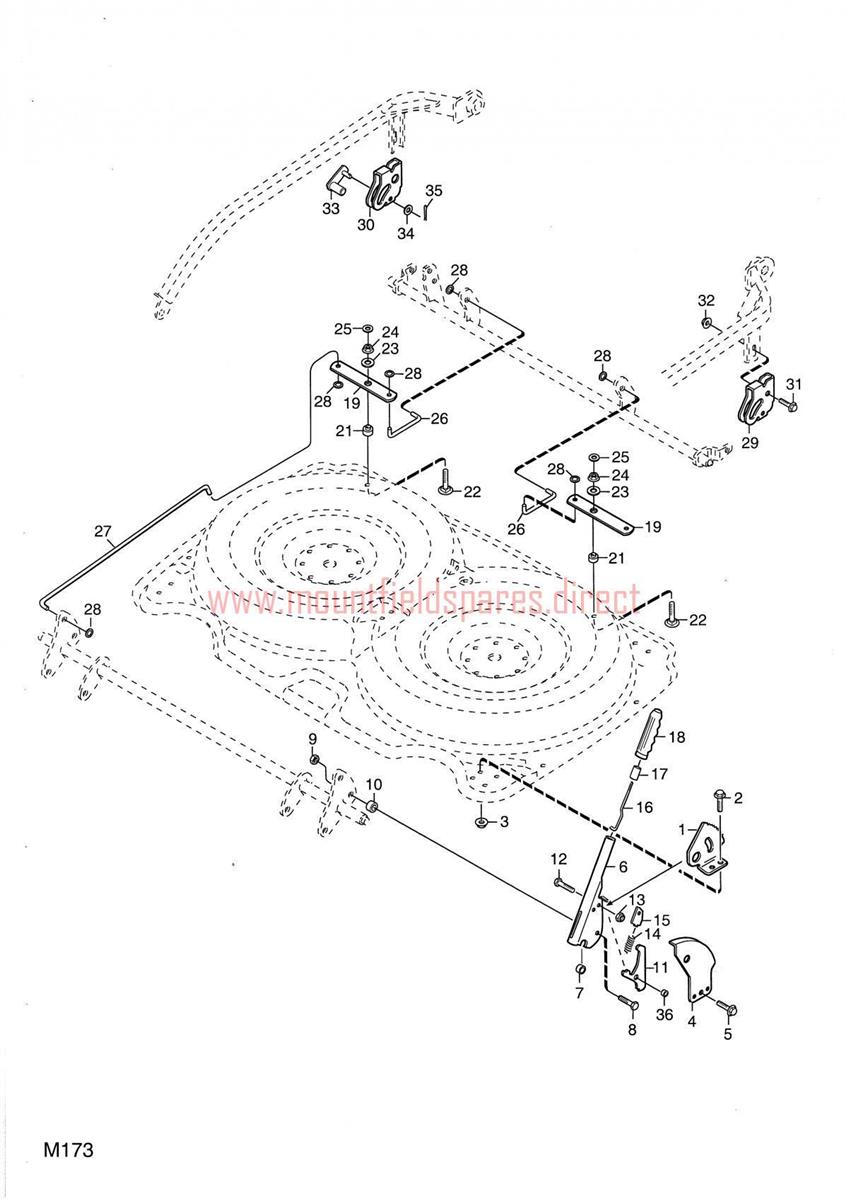

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-4290-01HEIGHT ADJUST QUADRANT£52.06 Add to
002112800815/0SCREW TE FL M8 x 16£2.06 Add to
003112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0041134-4291-03HEIGHT ADJUST QUADRANT£35.71 Add to
0051134-4242-01SPACER WASHER£4.78 Add to
0061134-5215-01HEIGHT ADJUSTMENT LEVER ASSEMBLY (OBSOLETE)N/A
0071134-2427-01SPACER£9.54 Add to
0089997-0840-16SCREW M6S M8 x 40£2.06 Add to
009112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0101134-3113-03SPACER£10.33 Add to
0111134-3010-02LOCKING QUADRANT£35.71 Add to
0129997-0620-16SCREW M6S M6 x 20£2.06 Add to
013112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0141134-3262-01SPRING£8.73 Add to
0151134-3009-01LOCKING KEY£28.90 Add to
0161134-3041-01CONTROL ROD£28.90 Add to
0171134-0041-04BUSH£11.46 Add to
0189406-0006-00HANDLE£8.91 Add to
0191134-4296-02PIVOT ARM£35.71 Add to
0211134-4298-02SPACER£15.41 Add to
0229897-0850-12SCREW£2.18 Add to
023112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
025112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
0261134-4894-04Push rod (OBSOLETE)N/A
0271134-4294-02PUSH ROD (531MM)£31.63 Add to
028112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
0291134-4304-03ADJUSTING PLATE-LH (5-01)£41.88 Add to
0301134-4304-10Adjusting plate-RH (OBSOLETE)N/A
0331134-4307-01CATCH£42.12 Add to
034112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
0359599-0054-02SPLIT PIN£2.32 Add to
0361134-5114-01SPACER£9.54 Add to
