MOWER DECK 92 cm TRANSMISSION

MOWER DECK 92 cm TRANSMISSION assembly details for Mountfield 4100 Series Mower Decks 92-107 2006 model

Parts list

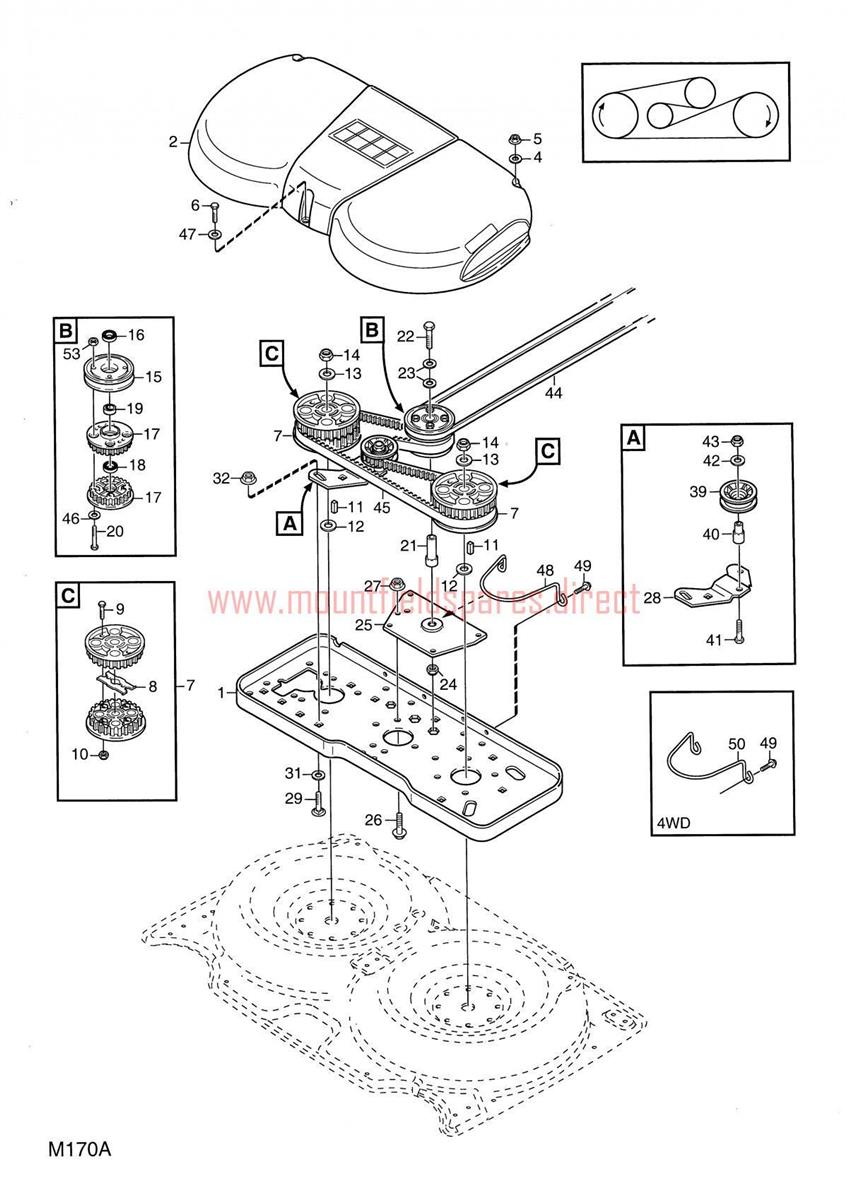

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-5229-01Transmission plate (OBSOLETE)N/A
0021134-4887-02TRANSMISSION COVER£132.07 Add to
004112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
005112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0069942-0612-16SCREW M6SF-TT M6 x 12£5.73 Add to
0071134-3679-01TOOTHED BELT PULLEY£48.96 Add to
0081134-3597-01REINFORCEMENT BAR£14.45 Add to
009112791500/0SCREW TE M6x25 UNI 5739 ACC.8.8£2.06 Add to
010112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0111134-0323-01KEY (L=25)£10.91 Add to
012112521390/0WASHER M16 17 x 30 x 3£1.91 Add to
0139699-0121-02WASHER£2.06 Add to
0149712-1231-02LOCKING NUT M12£6.83 Add to
0151134-5601-01BELT PULLEY£124.29 Add to
016120001215/0BEARING 6203 2RS C3£32.57 Add to
0171134-4321-01HALF TOOTHED PULLEY£22.84 Add to
0191134-3725-01SPACER L=12£13.64 Add to
0209997-0650-12SCREW M6S M6 x 50£2.47 Add to
0211134-4314-01Shaft (OBSOLETE)N/A
0229997-1065-12SCREW M6S M10 x 65£5.73 Add to
0239699-0030-02WASHER (10 X 26 X 2)£2.14 Add to
0249739-1031-22NUT M10£2.32 Add to
0251134-4667-02PLATE£49.34 Add to
026112800815/0SCREW TE FL M8 x 16£2.06 Add to
027112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0281134-4885-01TENSION ARM£38.43 Add to
0299897-0825-16SCREW M8 x 25£3.15 Add to
031122671652/0WASHER 12.3 x 20 x 2£2.74 Add to
0391134-4686-01TENSION PULLEY£57.52 Add to
0401134-4316-03SHAFT£14.82 Add to
0419997-1040-12SCREW M6S M10 x 40£3.15 Add to
0431134-4775-01LOCK NUT£2.47 Add to
0441134-9075-01DECK DRIVE BELT£50.70 Add to
0441134-9109-01DECK DRIVE BELT£46.61 Add to
0459585-0131-01TOOTHED BELT£79.32 Add to
046112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
047112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
0481134-4900-01BELT GUIDE£32.99 Add to
0491134-4242-01SPACER WASHER£4.78 Add to
0501134-6091-01BELT GUIDE£25.67 Add to
