105 COMBI TRANSMISSION

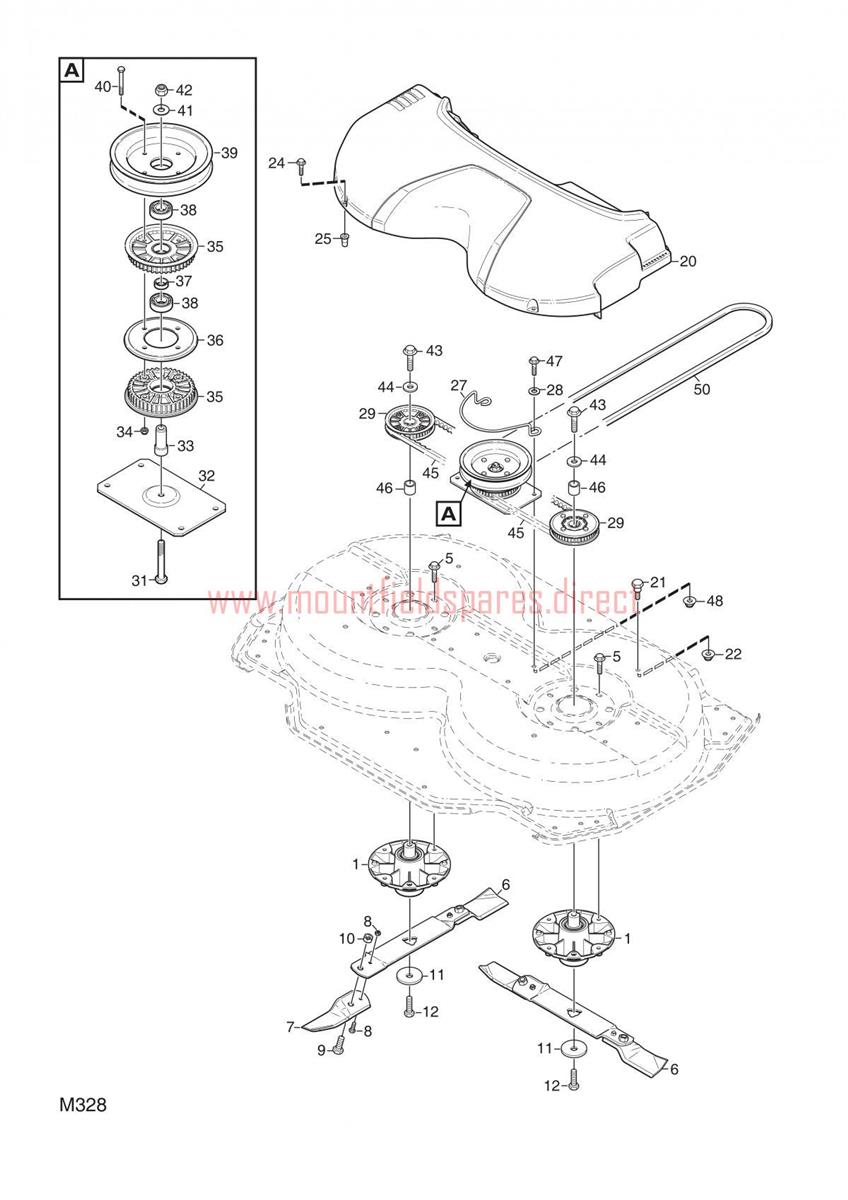

105 COMBI TRANSMISSION assembly details for Mountfield 4100 Series Mower Decks 95-105 2007 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	387203000/0	SHORT BLADE SHAFT ASSEMBLY	£115.14	Add to
005	9945-0825-16	SCREW M6SF M8 x 25	£2.32	Add to
006	1134-9118-01	BLADE BAR ASSEMBLY-105C [2 PCS]	£115.38	Add to
007	1134-9119-01	BLADE TIP KIT [2 PCS]	£35.15	Add to
008	1134-9054-01	SHEAR BOLT KIT [6 x Bolts & Nuts]	£8.84	Add to
009	1134-6311-01	BOLT 7/16" UNF	£3.24	Add to
010	1134-6312-01	LOCK NUT 7/16" UNF	£2.87	Add to
011	1134-6211-01	BLADE WASHER	£3.55	Add to
012	9997-1060-12	SCREW M6S M10 x 60	£2.54	Add to
020	1134-6280-05	TRANSMISSION COVER [BLACK]	£42.83	Add to
021	1134-0240-00	SCREW	£9.14	Add to
022	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
024	1134-4242-01	SPACER WASHER	£4.78	Add to
025	1134-5595-01	BLIND RIVET NUT	£8.32	Add to
027	1134-6431-01	BELT GUIDE	£16.91	Add to
028	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
029	1134-6287-01	TOOTHED BELT PULLEY	£25.21	Add to
031	9997-1065-12	SCREW M6S M10 x 65	£5.73	Add to
032	1134-6209-01	BRACKET	£46.61	Add to
033	1134-6205-01	SHAFT	£22.69	Add to
034	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
035	1137-1150-01	HALF TOOTHED PULLEY	£12.84	Add to
036	1134-6188-01	SPACER PLATE	£5.66	Add to
037	1134-3725-05	SPACER	£5.32	Add to
038	120001215/0	BEARING 6203 2RS C3	£32.57	Add to
039	1134-6204-01	Belt pulley (OBSOLETE)	N/A
040	9997-0650-12	SCREW M6S M6 x 50	£2.47	Add to
041	9699-0030-02	WASHER (10 X 26 X 2)	£2.14	Add to
042	112156602/0	LOW SELF-LOCKING NUT M10	£1.79	Add to
044	1134-5406-01	WASHER M10 10.5 x 35 x 5	£4.23	Add to
045	1134-9189-02	TOOTHED BELT [105C]	£50.70	Add to
046	1134-5400-04	SPACER	£5.32	Add to
047	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
050	9585-0170-01	V-belt (OBSOLETE)	N/A
050	1134-9149-01	DECK DRIVE BELT [KEVLAR]	£50.70	Add to
