95 COMBI FRAME

95 COMBI FRAME assembly details for Mountfield 2100 Series Mower Decks 85-95 2008 model

Parts list

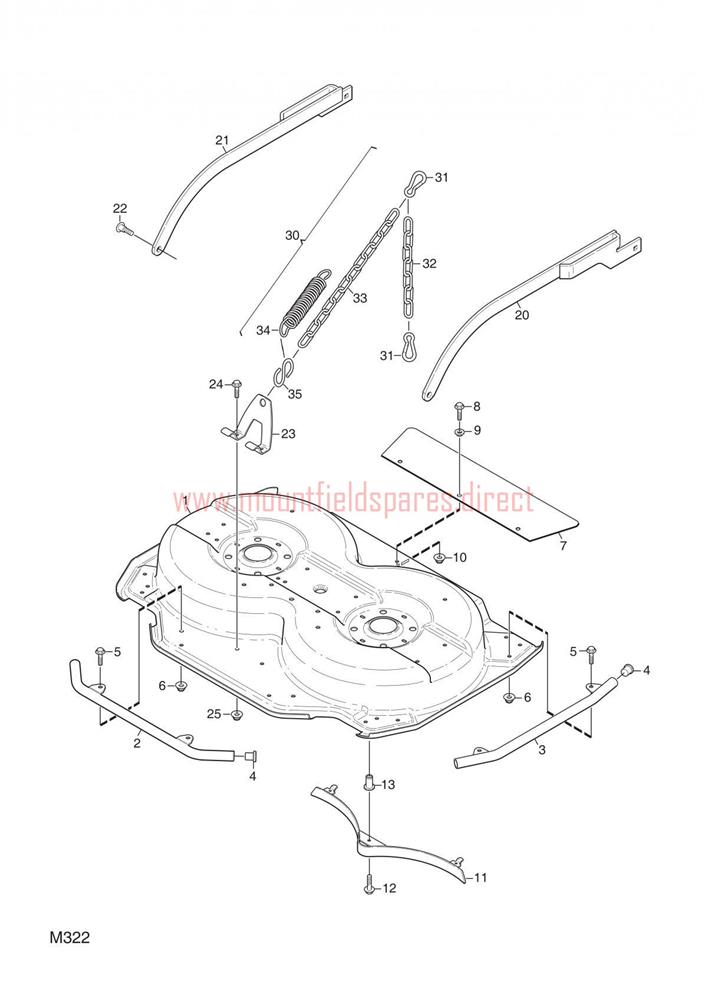

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001387561507/0DECK CASING 95cm [RED]£504.47 Add to
0021134-6208-02FRONT GUARD TUBE-BLACK£46.61 Add to
0031134-6222-02SIDE GUARD TUBE-BLACK 95C£40.71 Add to
0049403-0025-70END PLUG-BLACK£4.78 Add to
005112800815/0SCREW TE FL M8 x 16£2.06 Add to
006112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0071134-6281-02RUBBER GUARD£19.62 Add to
0091134-4185-01FLANGE WASHER£6.71 Add to
0111134-6229-01MULCH PLUG 95C£41.16 Add to
0131134-5595-01BLIND RIVET NUT£8.32 Add to
0201134-6237-09MOWER DECK ARM-LH (BLACK) 95C£109.29 Add to
0211134-6237-10MOWER DECK ARM-RH (BLACK) 95C£109.29 Add to
0221134-6279-01SHOULDER BOLT£2.74 Add to
0231134-6315-02LIFT BRACKET-BLACK£19.14 Add to
0301134-6363-01LIFT SPRING ASSEMBLY£47.97 Add to
0311134-5528-01SNAP HOOK£4.52 Add to
0321134-6368-02CHAIN [7 LINKS]£24.95 Add to
0331134-6368-03CHAIN [12 LINKS]£20.99 Add to
0341134-5625-01MOWER DECK SPRING£34.18 Add to
0351134-4623-01S-HOOK£4.78 Add to
0998211-7060-81Owner’s manual£6.92 Add to
