105 COMBI TRANSMISSION

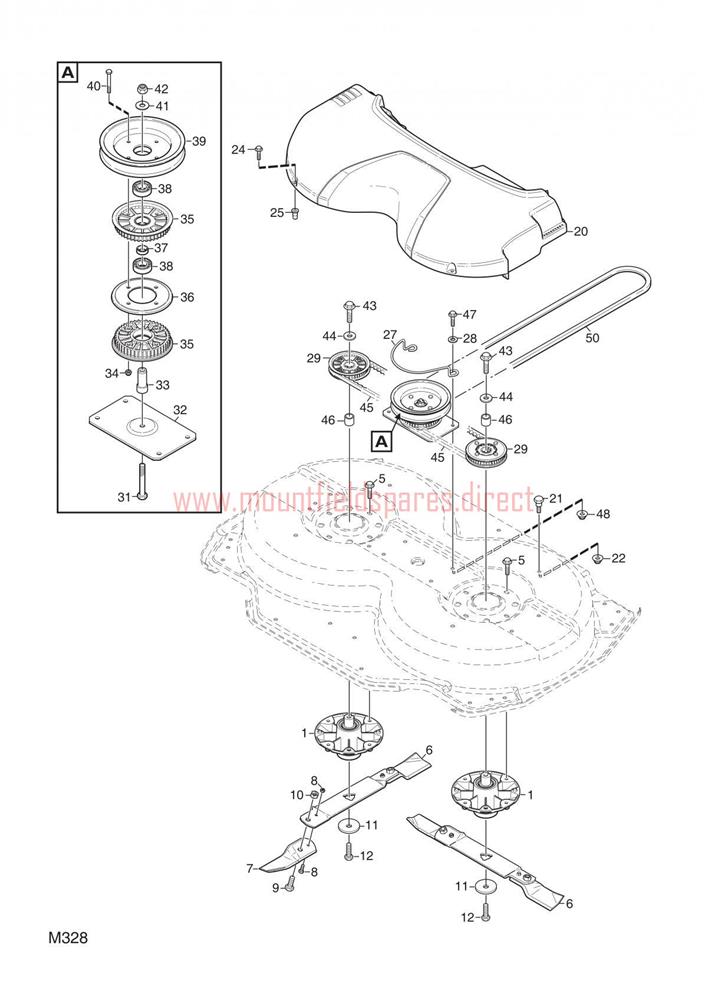

105 COMBI TRANSMISSION assembly details for Mountfield 4100 Series Mower Decks 95-105 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
005122034508/0PLASTIC BUSH [WHITE]£2.06 Add to
0071134-9119-01BLADE TIP KIT [2 PCS]£35.15 Add to
0081134-9054-01SHEAR BOLT KIT [6 x Bolts & Nuts]£8.84 Add to
0271134-6431-01BELT GUIDE£16.91 Add to
028112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
0319997-1065-12SCREW M6S M10 x 65£5.73 Add to
0321134-6209-01BRACKET£46.61 Add to
0331134-6205-01SHAFT£22.69 Add to
034112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0361134-6188-01SPACER PLATE£5.66 Add to
0371134-3725-05SPACER£5.32 Add to
038120001215/0BEARING 6203 2RS C3£32.57 Add to
0391134-6204-01Belt pulley (OBSOLETE)N/A
040112731350/0SELF-TAP SCREW TE 5.5 X 19 UNI 6949 C15£2.06 Add to
0419699-0030-02WASHER (10 X 26 X 2)£2.14 Add to
042112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
0479959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
048112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0509585-0170-01V-belt (OBSOLETE)N/A
0501134-9149-01DECK DRIVE BELT [KEVLAR]£50.70 Add to
