95 COMBI TRANSMISSION

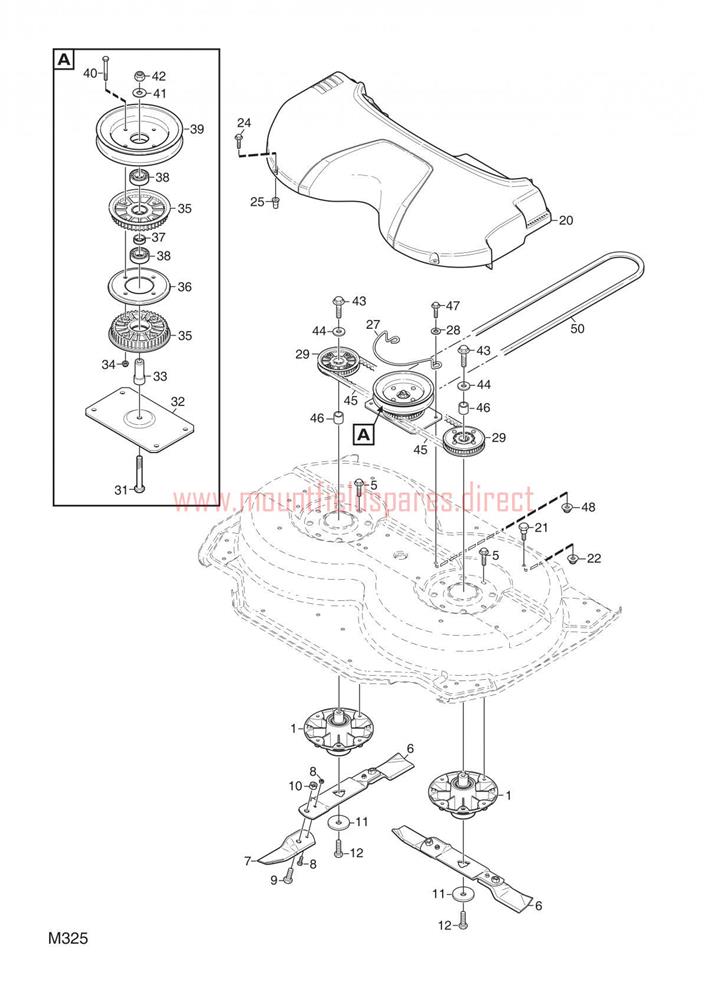

95 COMBI TRANSMISSION assembly details for Mountfield 4100 Series Mower Decks 95-105 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001387203000/0SHORT BLADE SHAFT ASSEMBLY£115.14 Add to
0059945-0825-16SCREW M6SF M8 x 25£2.32 Add to
0061134-9117-01BLADE BAR ASSEMBLY-95C [2 PCS]£109.88 Add to
0071134-9119-01BLADE TIP KIT [2 PCS]£35.15 Add to
0081134-9054-01SHEAR BOLT KIT [6 x Bolts & Nuts]£8.84 Add to
0091134-6311-01BOLT 7/16" UNF£3.24 Add to
0101134-6312-01LOCK NUT 7/16" UNF£2.87 Add to
0111134-6211-01BLADE WASHER£3.55 Add to
0129997-1060-12SCREW M6S M10 x 60£2.54 Add to
0201134-6280-05TRANSMISSION COVER [BLACK]£42.83 Add to
0211134-0240-01SCREW£9.82 Add to
022112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0251134-5595-01BLIND RIVET NUT£8.32 Add to
0271134-6431-01BELT GUIDE£16.91 Add to
028112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
0291134-6287-01TOOTHED BELT PULLEY£25.21 Add to
0319997-1065-12SCREW M6S M10 x 65£5.73 Add to
0321134-6209-01BRACKET£46.61 Add to
0331134-6205-01SHAFT£22.69 Add to
034112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0351137-1150-01HALF TOOTHED PULLEY£12.84 Add to
0361134-6188-01SPACER PLATE£5.66 Add to
0371134-3725-05SPACER£5.32 Add to
038120001215/0BEARING 6203 2RS C3£32.57 Add to
039387605029/0DOUBLE TOOTHED PULLEY ASSEMBLY [95C]£167.32 Add to
0409997-0650-12SCREW M6S M6 x 50£2.47 Add to
0419699-0030-02WASHER (10 X 26 X 2)£2.14 Add to
042112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
0441134-5406-01WASHER M10 10.5 x 35 x 5£4.23 Add to
0459585-0164-01TOOTHED BELT£56.99 Add to
0461134-5400-04SPACER£5.32 Add to
0479959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
0501134-9068-01DECK DRIVE BELT£34.35 Add to
0501134-9147-01DECK DRIVE BELT [KEVLAR]£50.70 Add to
