FRAME RAHMEN

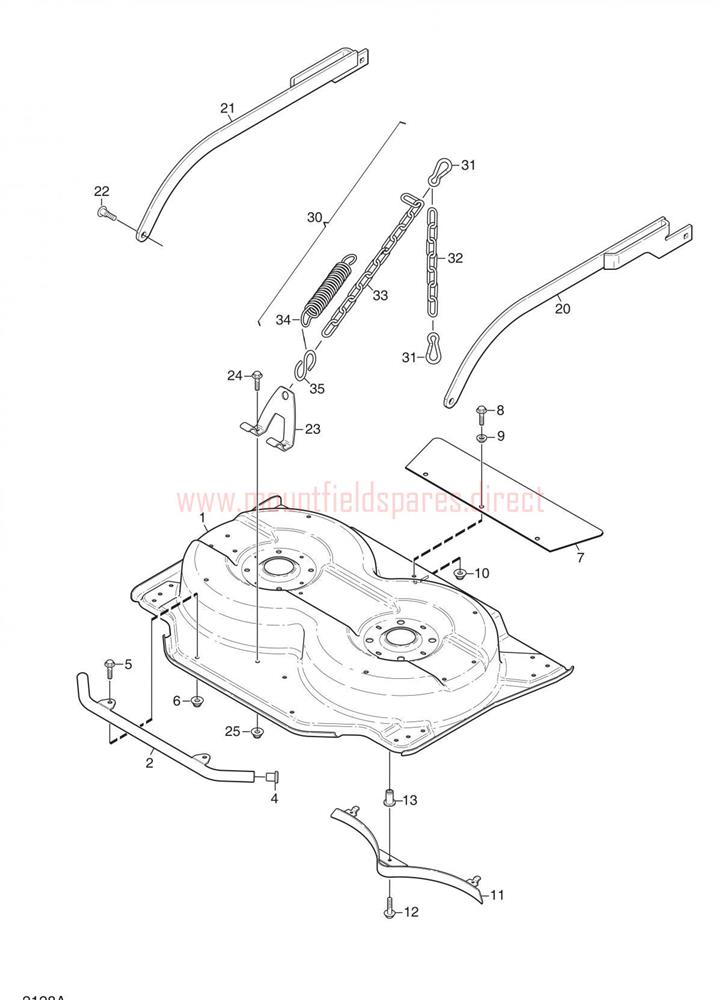

FRAME RAHMEN assembly details for Mountfield Mower deck 85C for 2100-series 2011 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	387561513/0	DECK CASING 85C [RED]	£477.23	Add to
002	1134-6208-02	FRONT GUARD TUBE-BLACK	£46.61	Add to
004	9403-0025-70	END PLUG-BLACK	£4.78	Add to
005	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
006	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
007	1134-6281-01	RUBBER GUARD	£18.67	Add to
009	1134-4185-01	FLANGE WASHER	£6.71	Add to
011	1134-6227-01	MULCHING PLUG 85C	£41.97	Add to
013	1134-5595-01	BLIND RIVET NUT	£8.32	Add to
020	1134-6237-11	MOWER DECK ARM-LH (BLACK) 85C	£72.47	Add to
021	1134-6237-12	MOWER DECK ARM-RH (BLACK) 85C	£72.47	Add to
022	1134-6279-01	SHOULDER BOLT	£2.74	Add to
023	1134-6315-02	LIFT BRACKET-BLACK	£19.14	Add to
030	1134-6363-01	LIFT SPRING ASSEMBLY	£47.97	Add to
031	1134-5528-01	SNAP HOOK	£4.52	Add to
032	1134-6368-02	CHAIN [7 LINKS]	£24.95	Add to
033	1134-6368-03	CHAIN [12 LINKS]	£20.99	Add to
034	1134-5625-01	MOWER DECK SPRING	£34.18	Add to
035	1134-4623-01	S-HOOK	£4.78	Add to
099	8211-7060-90	Owner’s manual (OBSOLETE)	N/A
