2105M HAND CONTROLS

2105M HAND CONTROLS assembly details for Mountfield 2105M-2125H 2005 model

Parts list

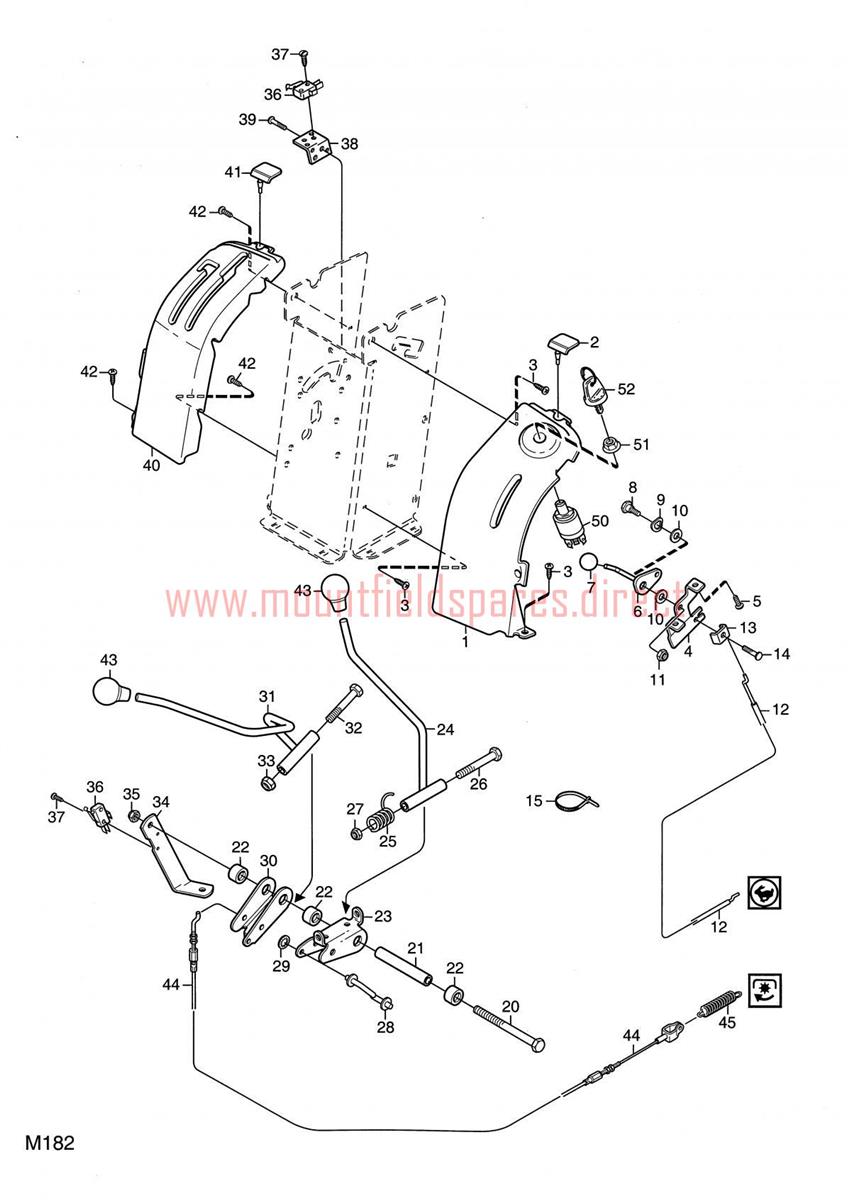

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-5286-02	DASHBOARD L/H [BLACK]	£86.74	Add to
002	1134-5531-01	ABSORBER	£25.07	Add to
003	9893-0616-16	SCREW M6 x 16	£2.47	Add to
004	1134-5357-01	BRACKET	£28.90	Add to
005	9838-9516-12	SCREW K50 x 16	£2.47	Add to
006	1134-5465-02	THROTTLE LEVER	£17.59	Add to
007	1134-4078-01	KNOB	£5.87	Add to
008	1134-0240-00	SCREW	£9.14	Add to
009	122675110/0	WASHER D=13.5 x 20.5 x 0.5	£2.14	Add to
010	1134-4242-01	SPACER WASHER	£4.78	Add to
011	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
012	1134-1597-13	THROTTLE CABLE	£18.27	Add to
013	9500-9991-00	CABLE CLAMP	£7.78	Add to
014	112735654/0	SELF-TAPPING SCREW M5 x 16	£2.74	Add to
015	9579-0003-00	CABLE HOLDER	£2.06	Add to
020	9997-0812-02	SCREW M6S M8 x 120	£2.06	Add to
021	1134-5274-02	SPACER	£9.68	Add to
022	1134-3047-01	SPACER	£8.04	Add to
023	1134-5271-01	CONTROL BRACKET	£35.71	Add to
024	1134-5275-01	GEARSHIFT LEVER	£34.35	Add to
025	1134-5535-01	SPRING	£8.73	Add to
026	112692080/0	HEX-HEAD SCREW M8 x 90	£2.06	Add to
028	1134-5268-01	SHIFTER ROD	£22.22	Add to
029	112604896/0	STARLOCK WASHER D=6	£2.06	Add to
031	1134-5276-01	CONTROL LEVER	£42.53	Add to
034	1134-5356-01	STRUT	£20.45	Add to
036	9400-0312-01	MICRO SWITCH (OBSOLETE) (OBSOLETE)	N/A
037	9840-7716-16	SCREW	£2.32	Add to
038	1134-5358-01	SWITCH BRACKET	£31.10	Add to
039	9852-8013-16	SCREW	£2.47	Add to
040	1134-5285-03	DASHBOARD MAN. R/H [BLACK]	£86.74	Add to
043	1134-2551-01	GEAR KNOB	£11.59	Add to
044	1134-3573-06	PTO CABLE	£34.35	Add to
045	1134-1242-02	SPRING	£10.50	Add to
050	1134-4093-01	IGNITION SWITCH	£67.05	Add to
051	1134-4749-01	NUT	£5.05	Add to
052	1134-4734-01	IGNITION KEY	£17.72	Add to
