2125H TRANSMISSION

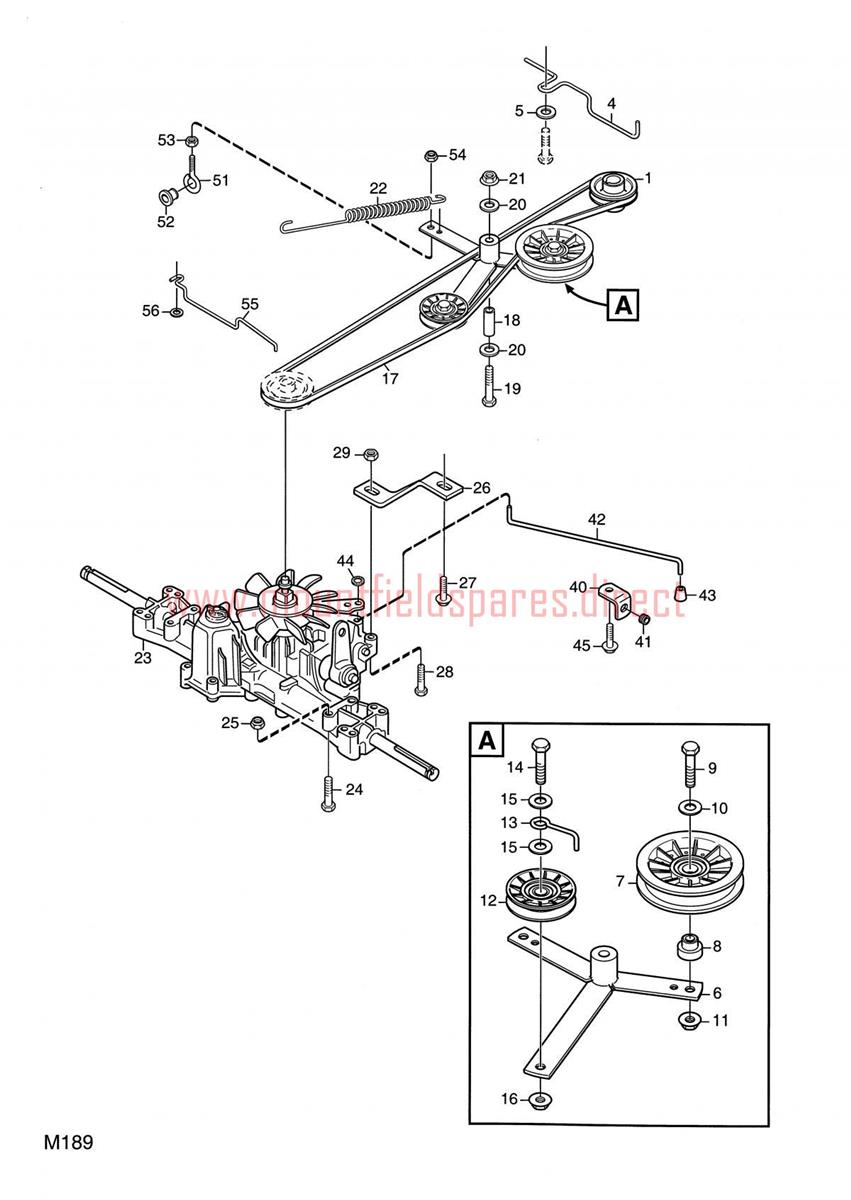

2125H TRANSMISSION assembly details for Mountfield 2105M-2125H 2005 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
004	1134-5414-01	BELT GUIDE	£56.15	Add to
005	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
006	1134-4519-01	TENSION ARM	£43.46	Add to
007	1134-3053-01	TENSION PULLEY	£49.76	Add to
008	1134-4614-01	SPACER	£9.00	Add to
009	9997-1040-16	SCREW M6S 10 x 40	£7.23	Add to
010	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
011	9739-1031-22	NUT M10	£2.32	Add to
012	387605008/0	TENSION PULLEY [GREY]	£35.71	Add to
013	1134-1795-01	BELT STIRRUP	£11.87	Add to
017	1134-9165-01	TRANSMISSION BELT	£39.80	Add to
018	1134-1565-08	SPACER	£9.94	Add to
019	112691900/0	HEX-HEAD SCREW	£1.91	Add to
021	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
022	1134-5214-01	SPRING	£13.49	Add to
023	1134-7766-01	TRANSAXLE K46 CJ	£1,035.97	Add to
024	9997-0870-16	SCREW M6S M8 x 70	£2.47	Add to
025	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
026	1134-4588-01	STRUT	£18.04	Add to
027	1134-4242-01	SPACER WASHER	£4.78	Add to
028	9997-0840-16	SCREW M6S M8 x 40	£2.06	Add to
040	1134-4713-01	BRACKET	£13.91	Add to
041	1134-2790-01	RUBBER GROMMET	£6.95	Add to
042	1134-5156-01	PULL ROD	£11.32	Add to
043	1134-4014-01	KNOB	£5.19	Add to
044	112604896/0	STARLOCK WASHER D=6	£2.06	Add to
051	1134-2138-01	EYE BOLT	£8.87	Add to
052	1134-4779-01	PLASTIC BUSH	£2.18	Add to
055	1134-5319-01	BELT GUIDE	£8.32	Add to
