ASSEMBLY PARTS

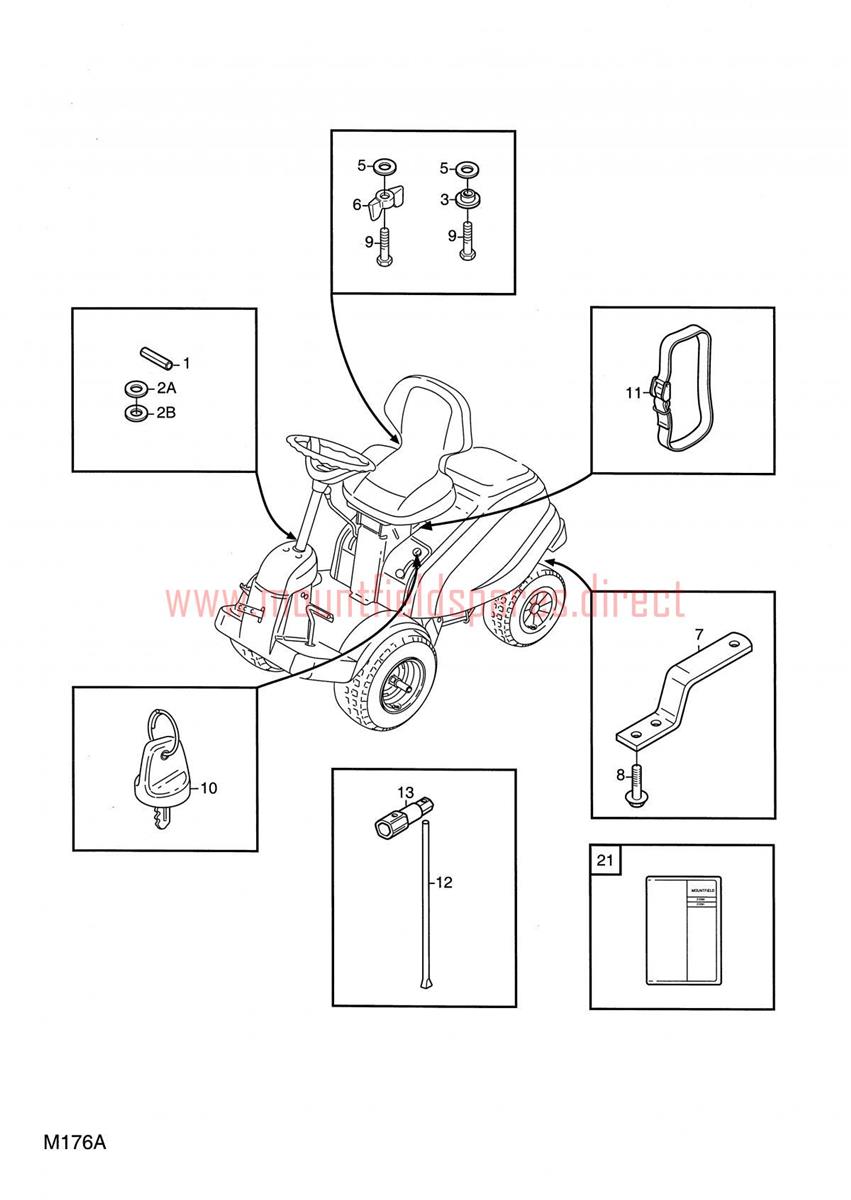

ASSEMBLY PARTS assembly details for Mountfield 2105M-2125H 2005 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
000	1134-4664-04	ACCESSORY BAG (READY) 2005	£81.76	Add to
001	9595-0262-00	LOCATING PIN	£2.06	Add to
003	1134-4185-01	FLANGE WASHER	£6.71	Add to
005	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
006	1134-4481-01	WING NUT (M8)	£2.06	Add to
007	1134-4627-01	TOWING STRAP	£17.45	Add to
008	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
009	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
010	1134-4734-01	IGNITION KEY	£17.72	Add to
011	1134-5245-01	BATTERY STRAP	£22.91	Add to
012	1111-2113-01	ROD 2005	£7.13	Add to
021	8211-0411-01	Owner's manual (OBSOLETE)	N/A
02A	9699-0103-02	WASHER	£2.47	Add to
02B	9699-0114-02	WASHER 16 x 38 x 1	£2.32	Add to
13A	1134-2960-02	Spark plug wrench (OBSOLETE)	N/A
13B	1134-4541-01	SPARK PLUG WRENCH	£9.54	Add to
