POWER TAKE- OFF

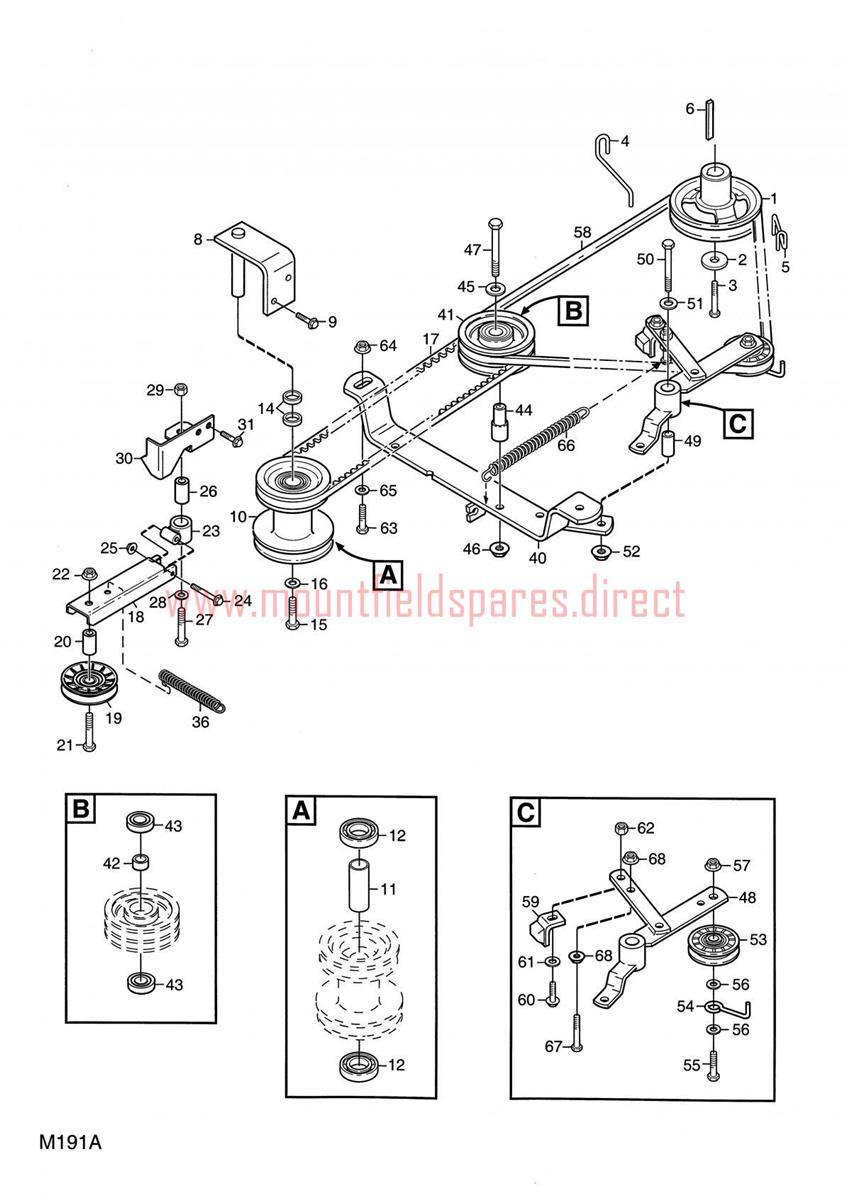

POWER TAKE- OFF assembly details for Mountfield 2105M-2125H 2005 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011137-0081-01ENGINE PULLEY£32.99 Add to
0021134-5017-01WASHER 40 x 11.5 x 4£3.55 Add to
003120001069/0SCREW 7/16" UNF x 32£10.56 Add to
0041134-5058-01BELT GUIDE£19.36 Add to
0051134-5057-01BELT GUIDE£18.82 Add to
0069600-0251-01KEY L=2.5"£6.95 Add to
0081134-4650-01PULLEY BRACKET£44.09 Add to
0091134-4242-01SPACER WASHER£4.78 Add to
0101134-4643-01INTERMEDIATE PULLEY£225.12 Add to
0111134-0051-12SPACER£13.08 Add to
012120001215/0BEARING 6203 2RS C3£32.57 Add to
0141134-0052-00SPACER£8.87 Add to
0159997-1040-16SCREW M6S 10 x 40£7.23 Add to
016112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
0171134-9079-01DRIVE BELT£41.16 Add to
0181134-5231-01TENSION ARM£23.72 Add to
019387605008/0TENSION PULLEY [GREY]£35.71 Add to
0201134-4619-01SPACER£9.39 Add to
0219997-1060-12SCREW M6S M10 x 60£2.54 Add to
0229739-1031-22NUT M10£2.32 Add to
0231134-6314-01TENSION ARM ATTACHMENT£9.00 Add to
024112689500/0SCREW M6 x 40£2.06 Add to
025112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0279997-1050-16SCREW M6S M10 x 50£2.87 Add to
029112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
0301134-4708-02BRACKET£56.15 Add to
0361131-1507-00SPRING£34.35 Add to
0401134-5037-01BRACKET£61.60 Add to
041387605002/0DOUBLE CENTRE PULLEY ASSEMBLY£84.77 Add to
0421134-0051-09SPACER£14.05 Add to
0441134-1839-02SHAFT£18.53 Add to
0479997-1070-12SCREW M6S (M10 X 70)£3.81 Add to
0481137-0144-01TENSION ARM£41.44 Add to
0491134-1565-10SPACER£8.73 Add to
050112793900/0HEX-HEAD SCREW M8 x 60£2.06 Add to
051112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
052112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0541134-1795-01BELT STIRRUP£11.87 Add to
0581134-9146-01PTO DRIVE BELT£35.71 Add to
0591134-4164-03BRAKE PAD£32.99 Add to
0609959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
061112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
062112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0661131-1506-00SPRING£24.95 Add to
