STEERING

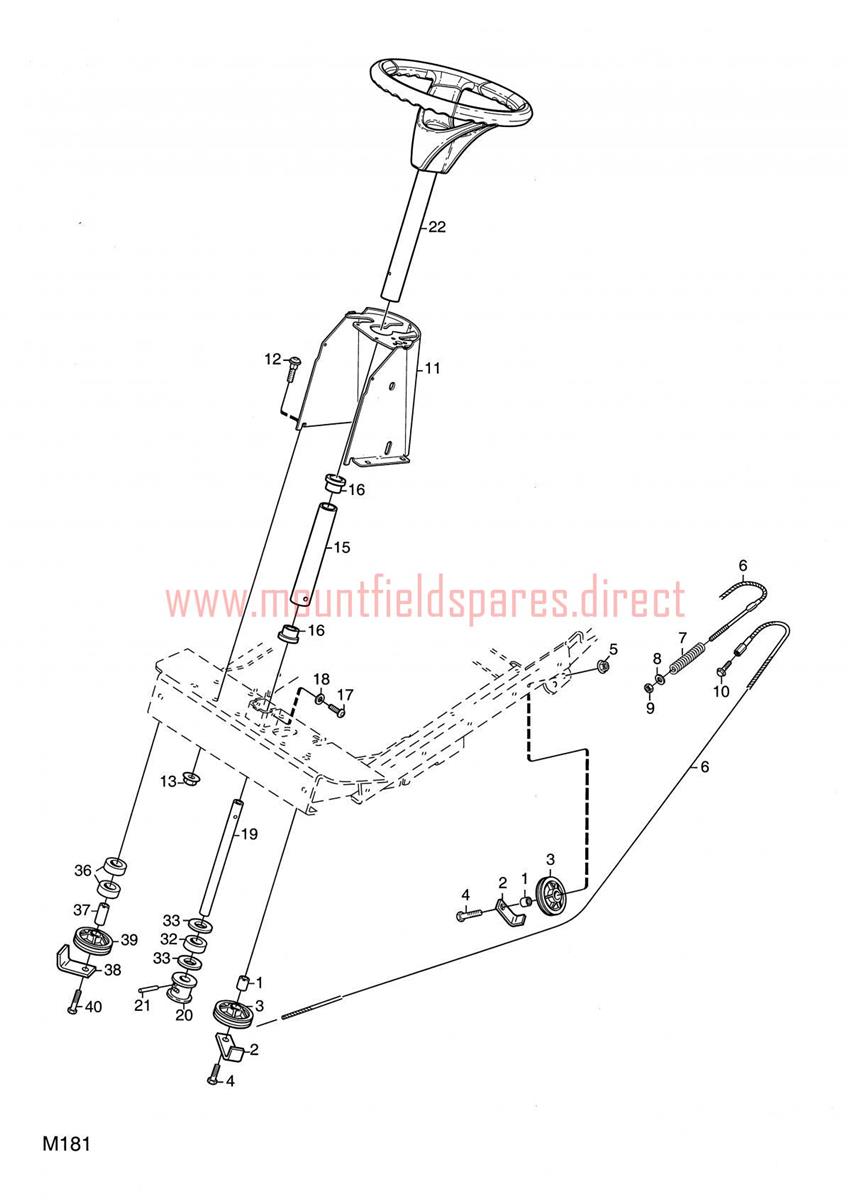

STEERING assembly details for Mountfield 2105M-2125H 2005 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-0041-01	BUSH	£9.41	Add to
002	1134-3022-01	BRACKET	£62.97	Add to
003	1134-9025-01	STEERING PULLEY [2 PCS]	£20.09	Add to
004	9997-1040-16	SCREW M6S 10 x 40	£7.23	Add to
005	9739-1031-22	NUT M10	£2.32	Add to
006	1134-2032-04	STEERING CABLE	£47.97	Add to
007	1134-1310-01	SPRING	£19.22	Add to
008	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
009	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
010	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
011	1134-5349-04	STEERING CONSOLE [BLACK]	£134.62	Add to
012	9897-0820-16	SCREW M8 x 20	£2.32	Add to
013	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
015	1134-1305-05	LOWER STEERING COLUMN	£47.97	Add to
016	1134-1901-01	PLASTIC BUSH	£12.27	Add to
017	9893-0616-16	SCREW M6 x 16	£2.47	Add to
018	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
019	1134-5495-01	STEERING ROD	£92.95	Add to
020	1134-1933-01	STEERING PULLEY	£57.47	Add to
021	9595-0262-00	LOCATING PIN	£2.06	Add to
022	1134-5496-01	STEERING WHEEL ASSEMBLY	£211.50	Add to
032	1134-3047-01	SPACER	£8.04	Add to
033	112521390/0	WASHER M16 17 x 30 x 3	£1.91	Add to
037	1134-0041-05	BUSH	£11.46	Add to
040	9997-1060-12	SCREW M6S M10 x 60	£2.54	Add to
