BODY WORK

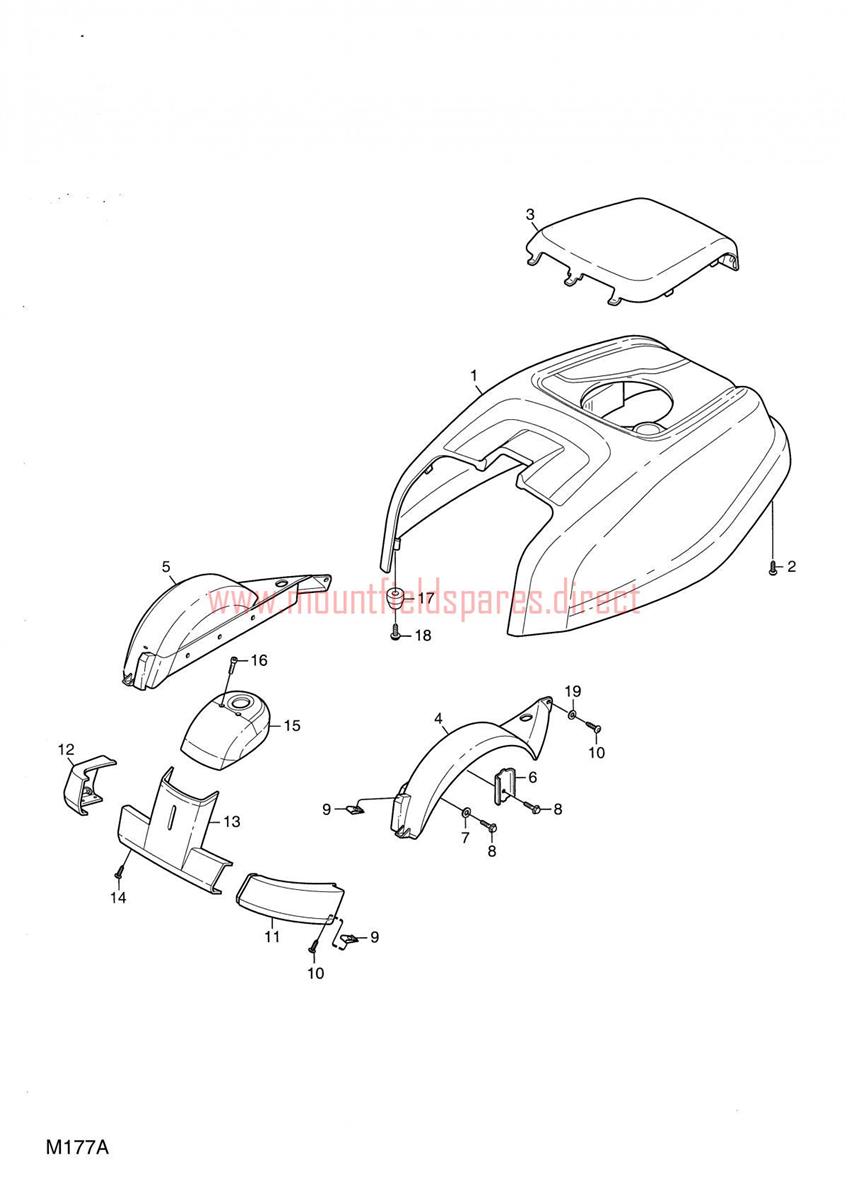

BODY WORK assembly details for Mountfield 2105M-2125H 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-5283-03Engine hood-red (OBSOLETE)N/A
0029838-9530-12SCREW K50 x 30£2.47 Add to
0031134-5284-03Engine cover-black (OBSOLETE)N/A
0041134-5307-03Mud guard-LH, black (OBSOLETE)N/A
0051134-5307-04Mud guard-RH, black (OBSOLETE)N/A
0061134-0225-00SUPPORT PLATE£11.18 Add to
007112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
0081134-4242-01SPACER WASHER£4.78 Add to
0091134-4176-01CLIP£5.19 Add to
0109893-0616-16SCREW M6 x 16£2.47 Add to
0111134-5306-03BUMPER FRONT-LH (BLACK)£45.10 Add to
0121134-5306-04BUMPER FRONT-RH (BLACK)£45.10 Add to
0131134-5305-02FRONT LOWER (RED)£90.98 Add to
0151134-5304-02FRONT UPPER (RED)£63.60 Add to
0169946-0525-16SCREW M5 x 25£2.47 Add to
0171134-4790-02HOOD GUIDE£3.55 Add to
019112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
