4135H-4155H FOOT CONTROLS 2WD

4135H-4155H FOOT CONTROLS 2WD assembly details for Mountfield 4125M-4135H-4155H 2006 model

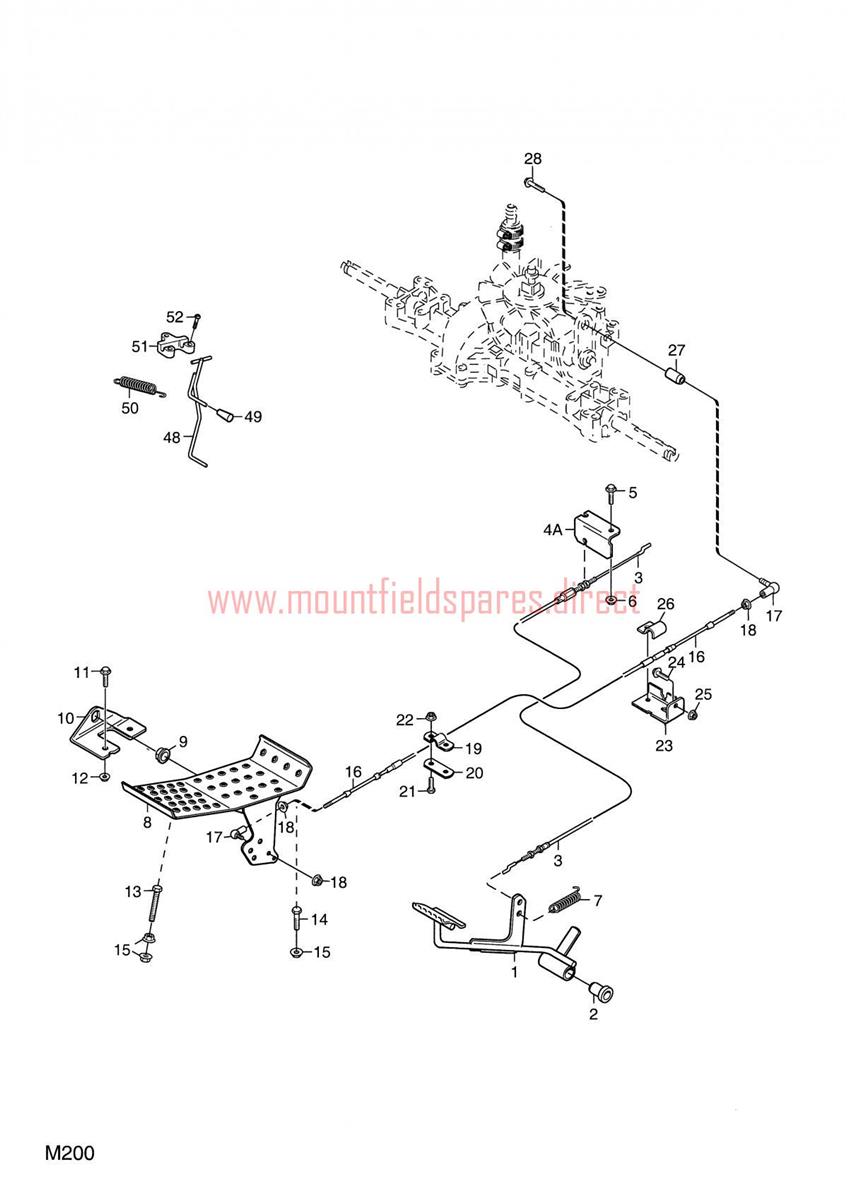

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-4247-01	BRAKE/CLUTCH PEDAL	£71.45	Add to
002	1134-9024-01	PLASTIC BUSH (4 PCS)	£19.66	Add to
003	1134-3584-03	BRAKE/CLUTCH CABLE	£34.35	Add to
005	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
006	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
007	1134-3974-01	SPRING	£12.40	Add to
008	1134-4008-03	DRIVE PEDAL 2006	£83.83	Add to
009	1134-6313-01	BEARING	£7.36	Add to
010	1134-2700-01	BRACKET	£17.45	Add to
011	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
013	9997-0870-16	SCREW M6S M8 x 70	£2.47	Add to
016	1134-2766-05	SPEED CONTROL CABLE	£76.59	Add to
017	9570-0001-00	ELBOW LINK	£18.90	Add to
018	9739-0531-22	NUT M5	£2.47	Add to
019	1134-0266-00	ATTACHING CLAMP	£7.36	Add to
020	1134-0267-00	CLAMP PLATE	£7.11	Add to
021	9997-0520-16	SCREW M6S M5 x 20	£2.32	Add to
023	1134-3395-01	ATTACHMENT BRACKET	£30.26	Add to
026	1134-2021-01	CLAMP	£7.36	Add to
027	1134-4013-01	SPACER	£20.24	Add to
048	1134-5353-01	BRAKE ROD	£29.61	Add to
049	1134-2786-01	PLASTIC KNOB	£6.42	Add to
04A	1134-6467-01	CABLE HOLDER	£6.55	Add to
050	1131-1497-01	BRAKE SPRING	£10.50	Add to
051	1134-4002-01	BRAKE ROD ATTACHMENT	£12.27	Add to
052	9838-9516-12	SCREW K50 x 16	£2.47	Add to
