ELECTRICAL EQUIPMENT

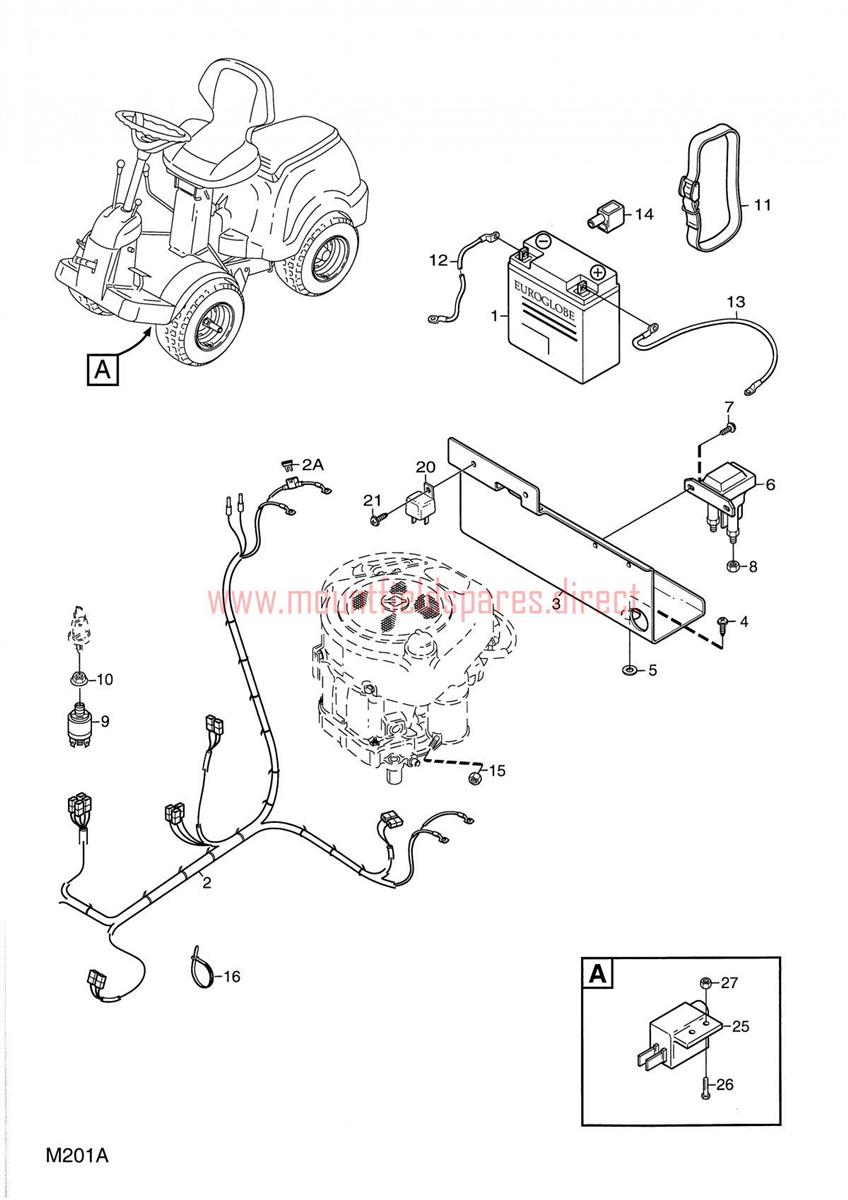

ELECTRICAL EQUIPMENT assembly details for Mountfield 4125M-4135H-4155H 2006 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	118120007/0	BATTERY 12V 18AH [No Returns on This item]	£103.58	Add to
002	1134-5768-01	HARNESS ( PARK COMPACT MANUAL )	£174.47	Add to
002	1134-5769-01	WIRING HARNESS (PARK COMPACT HST)	£177.43	Add to
003	1134-5343-01	BATTERY BRACKET	£68.42	Add to
004	9852-8013-16	SCREW	£2.47	Add to
005	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
006	118736112/0	SOLENOID	£39.80	Add to
008	9743-5121-32	LOCK NUT 5/16"	£1.79	Add to
009	1134-4093-01	IGNITION SWITCH	£67.05	Add to
010	1134-4749-01	NUT	£5.05	Add to
011	1134-5245-01	BATTERY STRAP	£22.91	Add to
012	1134-2167-01	CABLE	£27.27	Add to
013	1134-0234-02	BATTERY CABLE (+)	£24.95	Add to
014	1134-2310-01	GUARD CAP (+)	£9.28	Add to
015	112361005/0	HEXAGON NUT 1/4" UNC	£2.71	Add to
016	9579-0003-00	CABLE HOLDER	£2.06	Add to
020	1134-2871-03	STARTER RELAY [5 SPADE]	£45.26	Add to
025	1134-3399-02	SWITCH	£45.26	Add to
026	112735654/0	SELF-TAPPING SCREW M5 x 16	£2.74	Add to
026	9997-0520-16	SCREW M6S M5 x 20	£2.32	Add to
027	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
02A	1134-3496-06	FUSE 20A	£2.06	Add to
