2125H FOOT CONTROLS

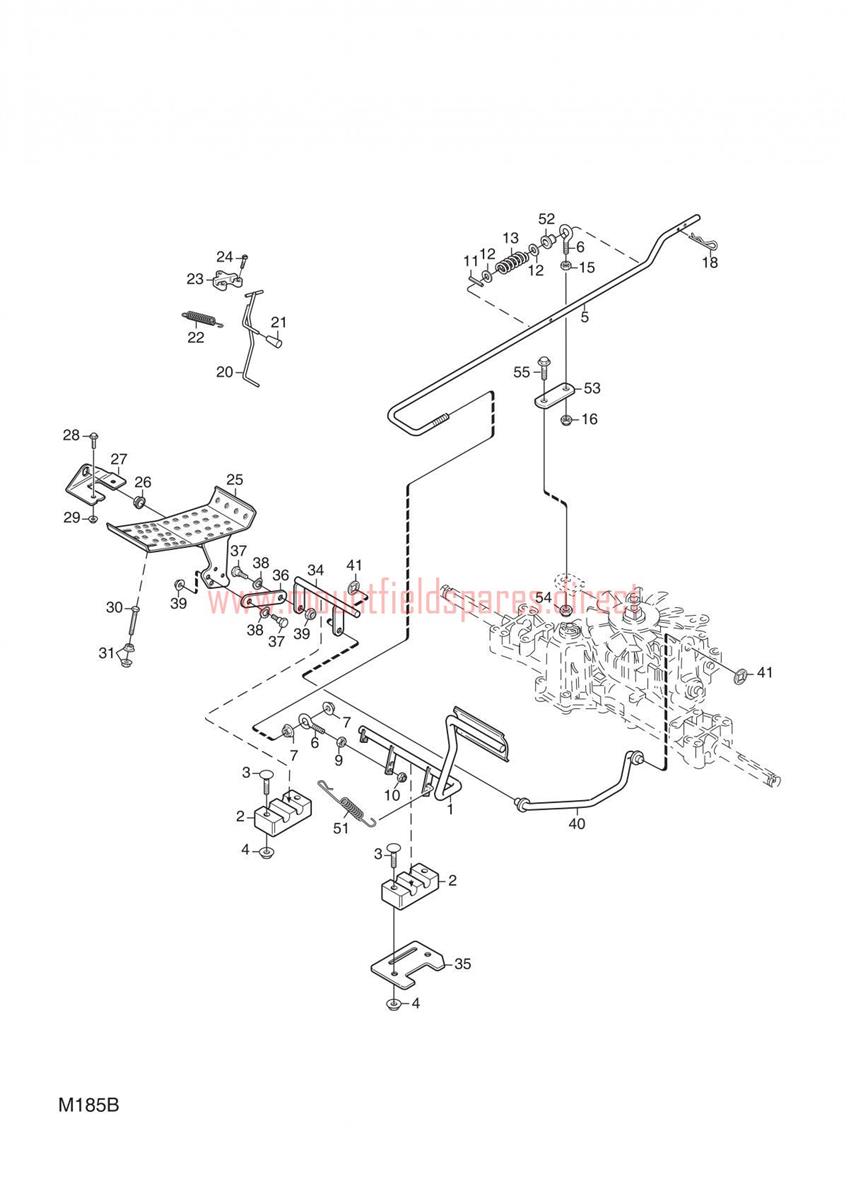

2125H FOOT CONTROLS assembly details for Mountfield 2105M-2125H 2007 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-4802-01	PEDAL	£56.15	Add to
002	1134-4624-01	BEARING	£9.41	Add to
003	9897-0640-12	CARRIAGE BOLT M6 x 40	£2.32	Add to
004	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
005	1134-4949-01	CLUTCH ROD	£44.11	Add to
006	1134-2138-01	EYE BOLT	£8.87	Add to
007	9739-1031-22	NUT M10	£2.32	Add to
009	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
010	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
011	9595-0208-00	LOCATING PIN	£2.74	Add to
012	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
013	1134-4617-01	SPRING	£4.52	Add to
018	124487998/0	R CLIP D=2	£2.06	Add to
020	1134-5353-01	BRAKE ROD	£29.61	Add to
021	1134-2786-01	PLASTIC KNOB	£6.42	Add to
022	1131-1497-01	BRAKE SPRING	£10.50	Add to
023	1134-4002-01	BRAKE ROD ATTACHMENT	£12.27	Add to
024	9838-9516-12	SCREW K50 x 16	£2.47	Add to
025	1134-6353-01	IMPLEMENT PEDAL	£43.62	Add to
026	1134-6313-01	BEARING	£7.36	Add to
027	1134-2700-01	BRACKET	£17.45	Add to
028	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
030	9997-0870-16	SCREW M6S M8 x 70	£2.47	Add to
034	1134-4440-01	SHAFT	£35.71	Add to
035	1134-4793-01	BRACKET	£17.18	Add to
036	1134-4441-01	LINK	£13.23	Add to
037	1134-0240-00	SCREW	£9.14	Add to
038	122675110/0	WASHER D=13.5 x 20.5 x 0.5	£2.14	Add to
040	1134-5288-01	CONTROL ROD	£38.44	Add to
041	112604899/0	STARLOCK WASHER RPCO 308 D=8	£2.06	Add to
051	4231-0013-00	SPRING	£8.87	Add to
052	1134-4779-01	PLASTIC BUSH	£2.18	Add to
053	1134-4972-01	BRACKET	£12.55	Add to
055	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
