4155H WHEELS 4WD

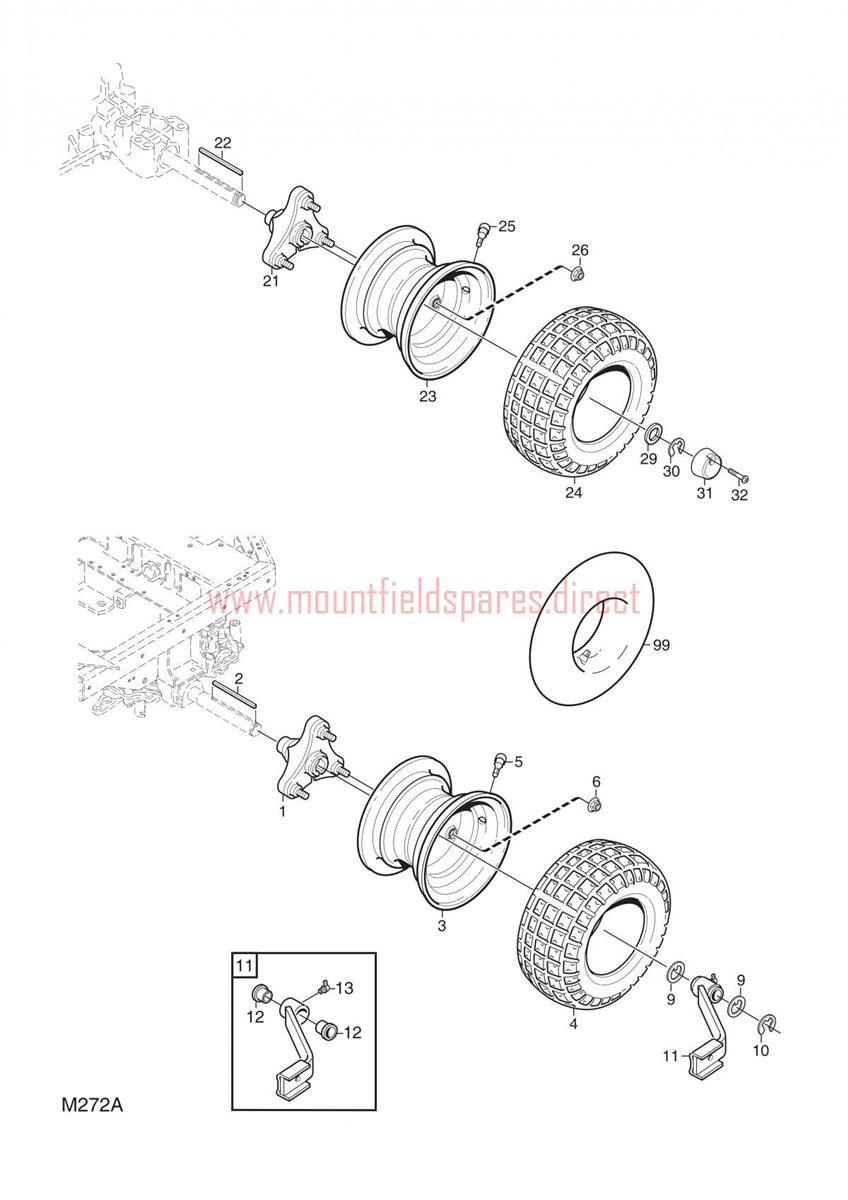

4155H WHEELS 4WD assembly details for Mountfield 4135H-4155H 2007 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-4844-03	WHEEL HUB ASSEMBLY	£58.87	Add to
002	1134-3383-02	KEY (L=51 MM)	£9.41	Add to
003	1134-4558-01	WHEEL RIM	£107.93	Add to
004	9545-0116-00	TYRE 16 x 7.50-8	£86.13	Add to
005	125950000/0	PNEUMATIC VALVE	£5.73	Add to
006	9731-1031-22	LOCK NUT M6MF M10	£2.47	Add to
009	137670203/0	WASHER DEST=45 DINT=25.6	£5.05	Add to
010	9653-0002-04	CIRCLIP 1"	£3.69	Add to
011	1134-5886-01	ATTACHMENT ARM [4WD]	£77.95	Add to
012	1134-5686-01	BEARING BUSH D= 25.4mm	£14.58	Add to
013	9501-0502-00	GREASE JOINT	£8.87	Add to
021	1134-4844-02	WHEEL HUB ASSEMBLY	£57.52	Add to
022	1134-2471-01	KEY	£9.41	Add to
029	9699-0042-02	WASHER 20 x 36 x 3	£2.47	Add to
030	9653-0001-04	CIRCLIP 3/4"	£2.61	Add to
031	1134-4796-01	HUB CAP	£5.46	Add to
032	9947-0540-19	SCREW	£2.06	Add to
099	9545-0203-00	INNER TUBE 16 x 6.50	£26.18	Add to
