ASSEMBLY PARTS

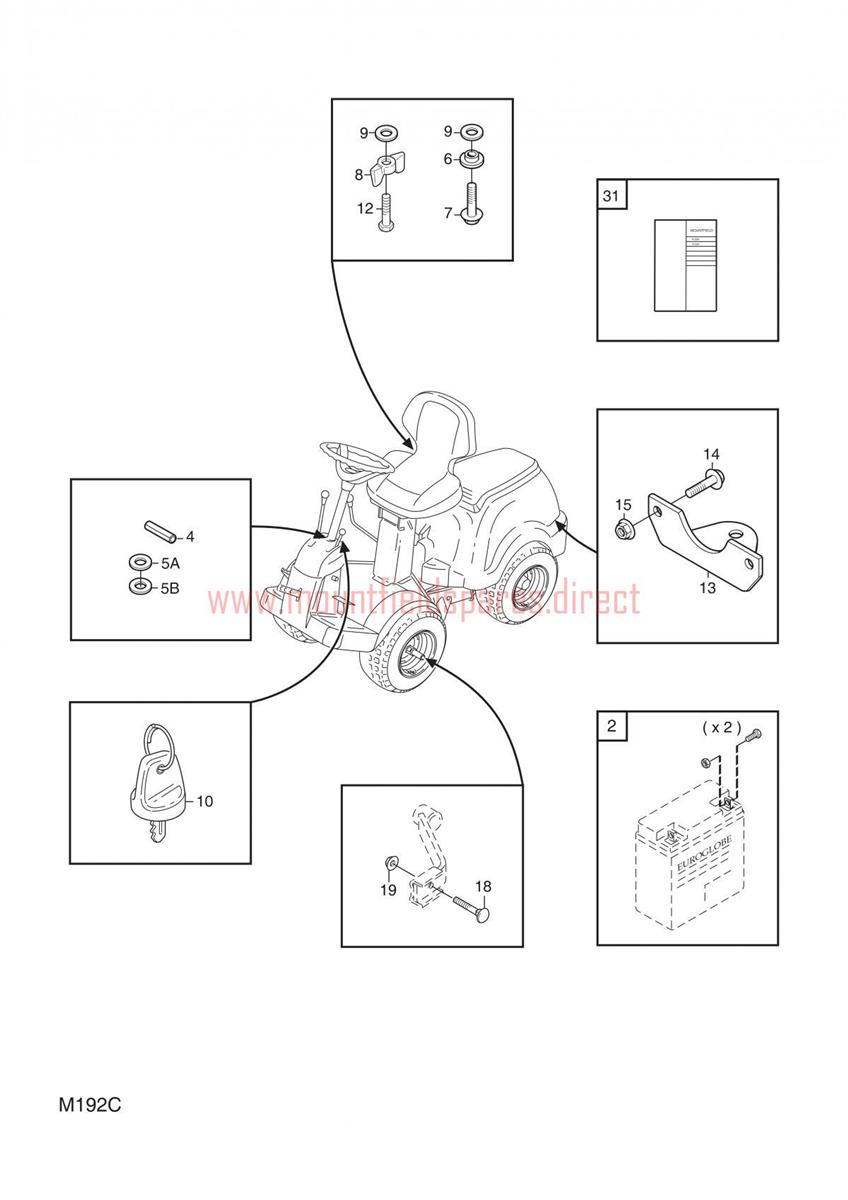

ASSEMBLY PARTS assembly details for Mountfield 4135H-4155H 2007 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	1134-6113-01	BATTERY SCREW PACK	£12.82	Add to
004	9595-0262-00	LOCATING PIN	£2.06	Add to
006	1134-4185-01	FLANGE WASHER	£6.71	Add to
007	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
008	1134-4481-01	WING NUT (M8)	£2.06	Add to
009	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
010	1134-4734-01	IGNITION KEY	£17.72	Add to
012	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
013	1134-5512-01	TOWING PLATE	£20.72	Add to
015	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
018	9898-1035-16	SCREW 10 x 35	£3.15	Add to
019	9739-1031-22	NUT M10	£2.32	Add to
031	8211-0060-70	Owner’s manual (OBSOLETE)	N/A
05A	9699-0103-02	WASHER	£2.47	Add to
05B	9699-0114-02	WASHER 16 x 38 x 1	£2.32	Add to
