ENGINE

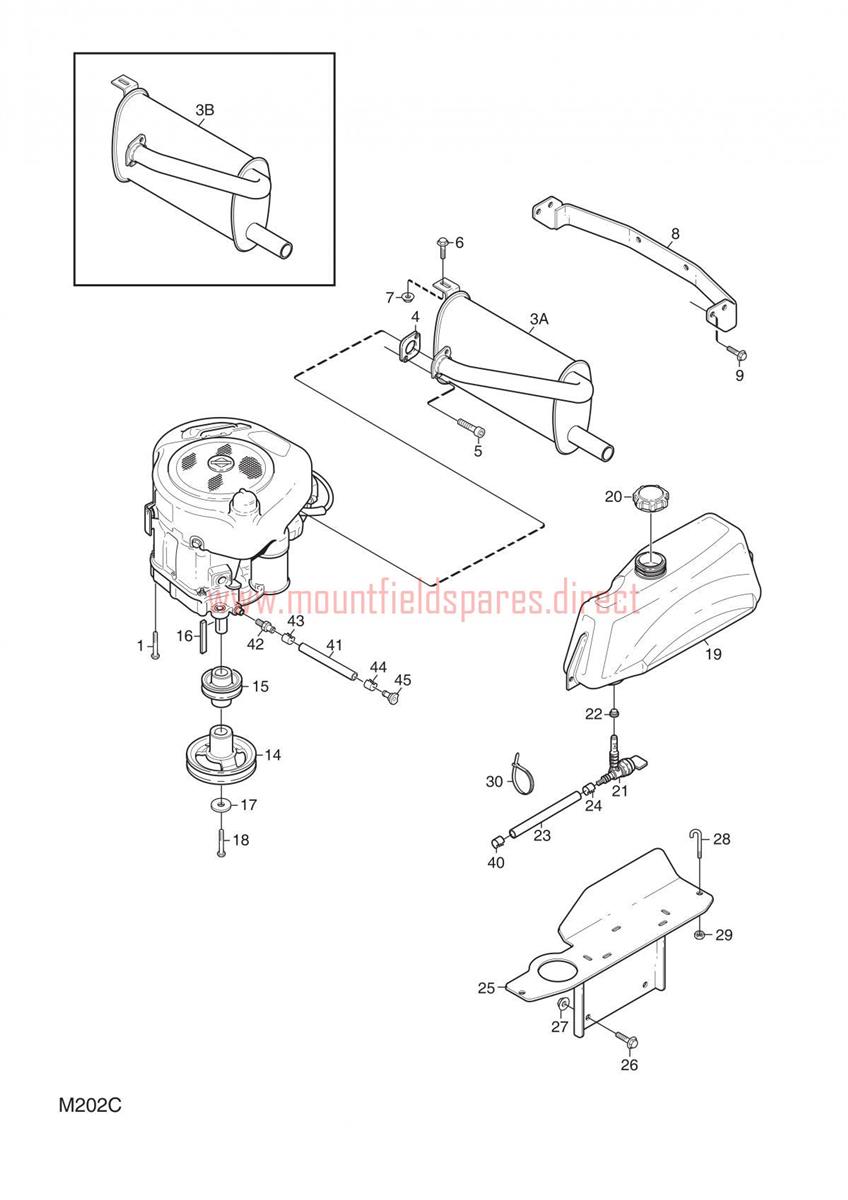

ENGINE assembly details for Mountfield 4135H-4155H 2007 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	9955-3725-16	SCREW 3/8" x 25	£2.87	Add to
003B	1134-7784-01	MUFFLER	£247.60	Add to
004	1134-0433-00	MUFFLER GASKET	£5.87	Add to
005	1134-4930-01	SCREW	£2.32	Add to
006	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
007	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
008	1134-5390-01	TOW BAR BRACKET	£64.32	Add to
009	1134-4242-01	SPACER WASHER	£4.78	Add to
014	1137-0208-01	ENGINE PULLEY	£45.26	Add to
015	1134-6137-01	ENGINE BELT PULLEY	£71.14	Add to
016	9600-0251-01	KEY L=2.5"	£6.95	Add to
017	1134-5017-01	WASHER 40 x 11.5 x 4	£3.55	Add to
018	120001069/0	SCREW 7/16" UNF x 32	£10.56	Add to
019	1134-5335-01	FUEL TANK	£54.42	Add to
020	125795001/1	FUEL TANK CAP	£8.32	Add to
021	1134-3224-01	FUEL SHUT-OFF VALVE	£24.95	Add to
022	1134-3225-01	GROMMET	£7.57	Add to
023	1134-2975-01	FUEL HOSE L=520	£15.28	Add to
023	1134-2975-06	FUEL HOSE	£8.73	Add to
024	9578-0023-02	HOSE CLAMP	£5.73	Add to
025	1134-5340-01	FUEL TANK BRACKET ASSY (BLACK) 5-01	£175.19	Add to
028	1134-5346-01	FUEL TANK LOOP	£13.49	Add to
029	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
030	9579-0003-00	CABLE HOLDER	£2.06	Add to
03A	1134-5370-01	MUFFLER	£463.60	Add to
03B	1134-7784-01	MUFFLER	£247.60	Add to
041	1134-5827-01	OIL DRAIN ASSEMBLY	£41.16	Add to
042	1134-5825-01	NIPPLE	£58.87	Add to
043	9578-0023-04	HOSE CLAMP	£5.32	Add to
044	9578-0023-00	HOSE CLAMP	£24.95	Add to
045	1134-5826-01	PLUG	£24.95	Add to
