HAND CONTROLS

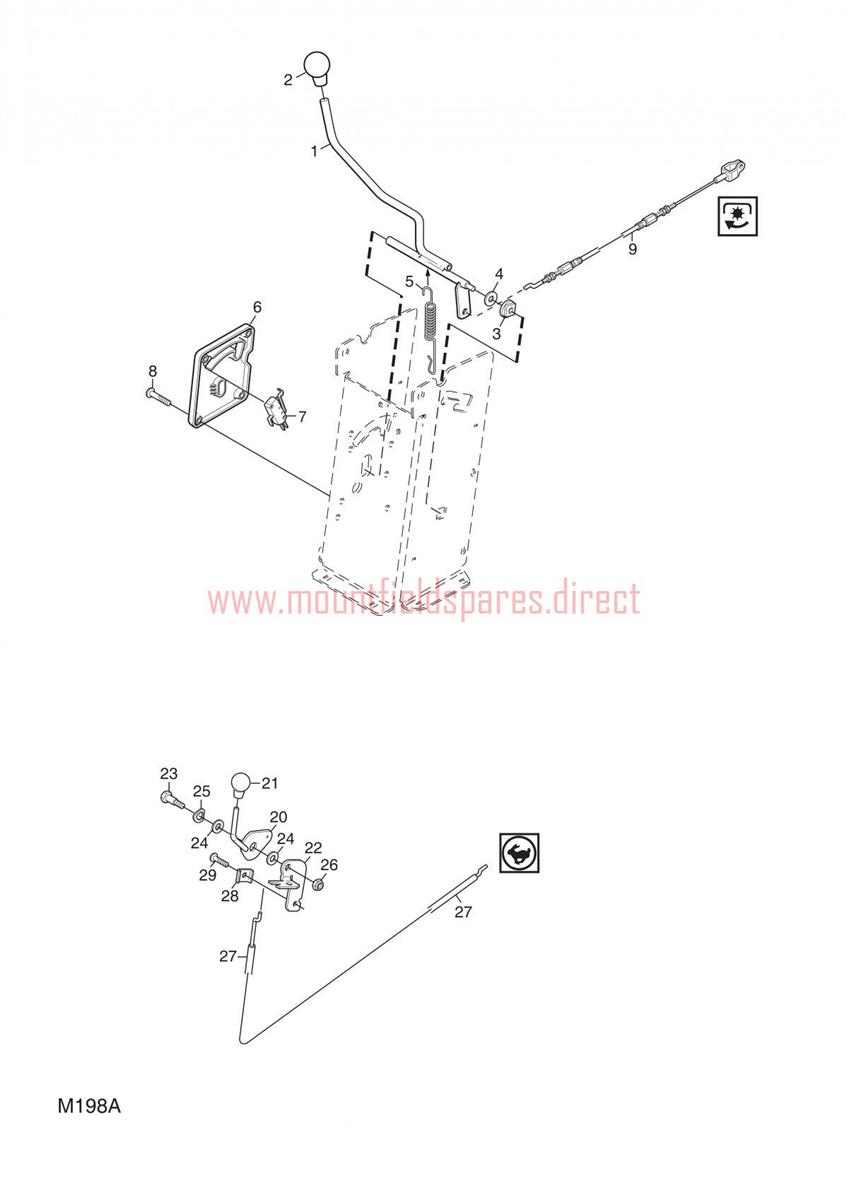

HAND CONTROLS assembly details for Mountfield 4135H-4155H 2007 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-6301-01	ENGAGE LEVER	£43.93	Add to
002	1134-2551-01	GEAR KNOB	£11.59	Add to
003	1134-3790-02	BEARING	£9.14	Add to
004	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
005	4231-0013-00	SPRING	£8.87	Add to
006	1134-5368-01	DASHBOARD	£24.95	Add to
007	9400-0312-01	MICRO SWITCH (OBSOLETE) (OBSOLETE)	N/A
008	9946-0525-16	SCREW M5 x 25	£2.47	Add to
009	1134-3573-05	PTO CABLE	£32.99	Add to
020	1134-5465-02	THROTTLE LEVER	£17.59	Add to
021	1134-4078-01	KNOB	£5.87	Add to
022	1134-5464-01	BRACKET	£28.90	Add to
023	1134-0240-00	SCREW	£9.14	Add to
024	1134-4242-01	SPACER WASHER	£4.78	Add to
025	122675110/0	WASHER D=13.5 x 20.5 x 0.5	£2.14	Add to
026	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
027	1134-4197-03	THROTTLE CABLE	£24.95	Add to
028	9500-9991-00	CABLE CLAMP	£7.78	Add to
029	112735654/0	SELF-TAPPING SCREW M5 x 16	£2.74	Add to
