BODY WORK (1)

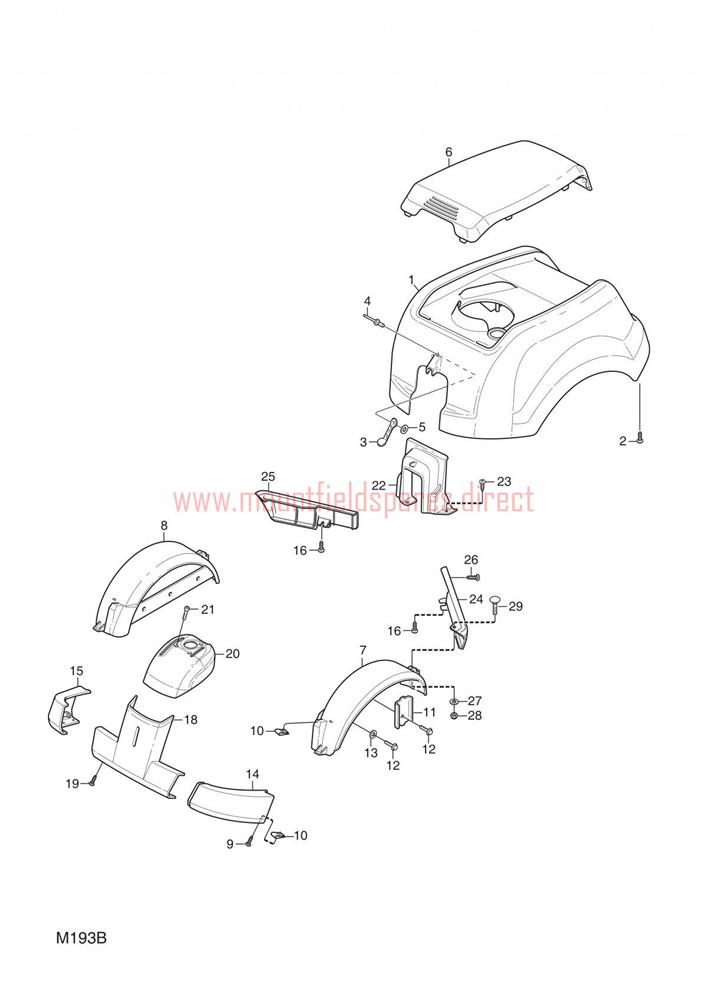

BODY WORK (1) assembly details for Mountfield 4135H-4155H 2008 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-5263-03	ENGINE HOOD [RED] 2-19 2008	£392.84	Add to
002	9838-9530-12	SCREW K50 x 30	£2.47	Add to
003	1134-2143-01	RUBBER STRAP	£9.41	Add to
004	9632-0516-00	POP RIVET	£2.47	Add to
005	9699-0120-02	WASHER 3.2 x 14 x 1.5	£2.32	Add to
006	1134-5264-03	ENGINE COVER [BLACK] 5-01-2008	£135.61	Add to
007	1134-5308-03	MUDGUARD-LH (BLACK) 5-01	£125.61	Add to
008	1134-5308-04	MUDGUARD-RH (BLACK) 5-01	£125.61	Add to
009	9893-0616-16	SCREW M6 x 16	£2.47	Add to
010	1134-4176-01	CLIP	£5.19	Add to
011	1134-0225-00	SUPPORT PLATE	£11.18	Add to
012	1134-4242-01	SPACER WASHER	£4.78	Add to
013	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
014	1134-5306-03	BUMPER FRONT-LH (BLACK)	£45.10	Add to
015	1134-5306-04	BUMPER FRONT-RH (BLACK)	£45.10	Add to
018	1134-5305-02	FRONT LOWER (RED)	£90.98	Add to
020	1134-5320-04	FRONT UPPER PART [RED] HST	£58.87	Add to
021	9946-0525-16	SCREW M5 x 25	£2.47	Add to
022	1134-6241-01	HOOD SUPPORT	£42.53	Add to
024	1134-3970-06	MOULDING-LEFT (BLACK)	£63.60	Add to
025	1134-3970-04	MOULDING RIGHT-BLACK	£74.05	Add to
027	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
028	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
029	9897-0616-16	SCREW	£2.47	Add to
